acA720-520uc
LBTek

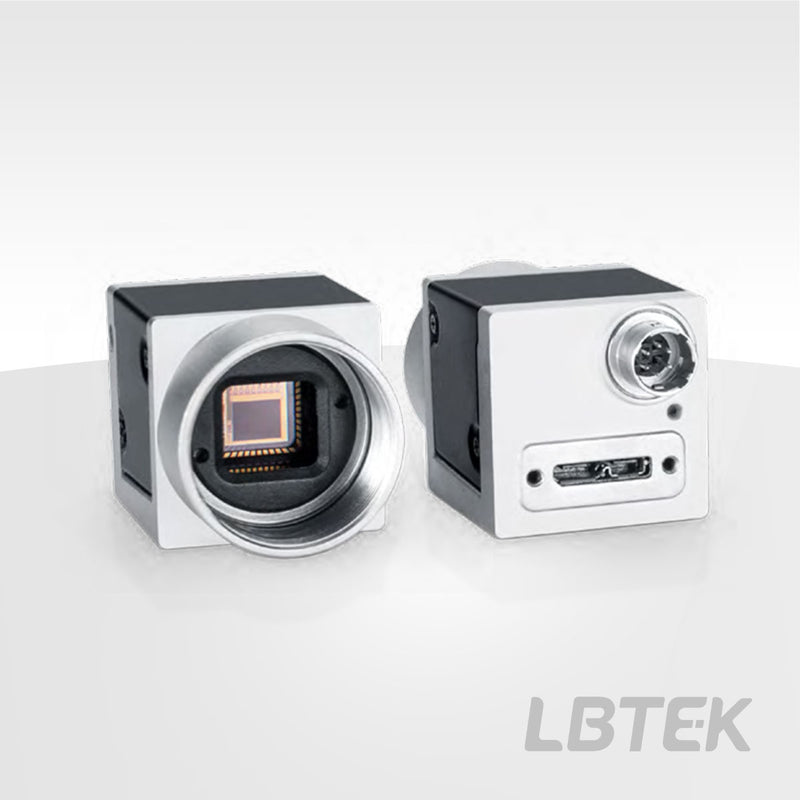

Basler CMOS Camera USB 3.0 Data Transfer Connector acA720-520uc

acA720-520uc
Contact for pricing
In Stock
Contact Sales

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

The Basler CMOS Camera is equipped a USB 3.0 data transfer connector and utilizes high-resolution, high-frame-rate CMOS sensors, with a maximum frame rate of up to 520 fps and resolutions ranging from 1.3 MP to 20 MP. It features a compact design. Its mechanical housing includes a C-Mount optical connector for easy integration into 30 mm coaxial systems, with three M3 and four M2 threaded holes on the bottom for flexible mounting options. It offers functionalities such as 5×5 debayering (to prevent color errors), pseudo-color removal, noise reduction, and sharpness enhancement.

Key Features

  • Resolution: 39 W~2000 W pixels
  • C-Mount optical connector
  • Dimensions: 29.3 mm × 29 mm × 29 mm

Application

Structural Schematic Diagram of acA720-520um

Operating Temperature 0-50 ℃
Threaded hole Bottom (3×M3, 4×M2)
Weight 80 g
Effective pixels 720×540
Pixel size 6.9 μm×6.9 μm
CMOS size 1/2.9''
Material 525 fps
Data Transfer Interface USB 3.0
Shutter Mode Global Shutter
Optical Interface C-Mount
Sensor Type Color sensor
Resolution VGA
Operating System Windows、Linux、macOS
Sensor Size 5 mm×3.7 mm
Bit depth 8 or 12 bits
Trigger Mode Hardware triggering or camera API programming
Power Consumption USB（3 W）
Camera Body Dimensions 29.3 mm×29 mm×29 mm
No documents available for this product.
No CAD drawings available for this product.
