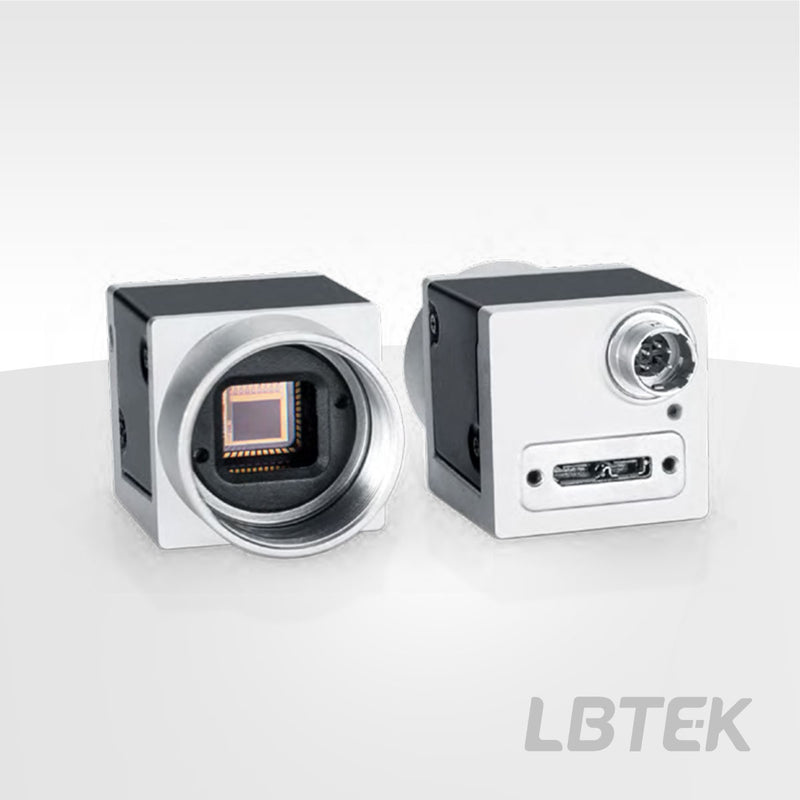

Basler CMOS Camera USB 3.0 Data Transfer Connector acA5472-17uc

acA5472-17uc
Contact for pricing
In Stock
Contact Sales

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

The Basler CMOS Camera is equipped a USB 3.0 data transfer connector and utilizes high-resolution, high-frame-rate CMOS sensors, with a maximum frame rate of up to 520 fps and resolutions ranging from 1.3 MP to 20 MP. It features a compact design. Its mechanical housing includes a C-Mount optical connector for easy integration into 30 mm coaxial systems, with three M3 and four M2 threaded holes on the bottom for flexible mounting options. It offers functionalities such as 5×5 debayering (to prevent color errors), pseudo-color removal, noise reduction, and sharpness enhancement.

Key Features

  • Resolution: 39 W~2000 W pixels
  • C-Mount optical connector
  • Dimensions: 29.3 mm × 29 mm × 29 mm

Application

Structural Schematic Diagram of acA720-520um

Operating Temperature 0-50 ℃
Threaded hole Bottom (3×M3, 4×M2)
Weight 80 g
Effective pixels 5472×3648
Pixel size 2.4 μm×2.4 μm
CMOS size 1''
Material 17 fps
Data Transfer Interface USB 3.0
Shutter Mode Rolling shutter
Optical Interface C-Mount
Sensor Type Color sensor
Resolution 20 MP
Operating System Windows、Linux、macOS
Sensor Size 13.1 mm×7.3 mm
Bit depth 10 or 12 bits
Trigger Mode Hardware triggering or camera API programming
Power Consumption USB（3.1 W）
Camera Body Dimensions 29.3 mm×29 mm×29 mm
