Ø25 mm Post Adapter — Model OP1AP
✔ In Stock — Ships Today

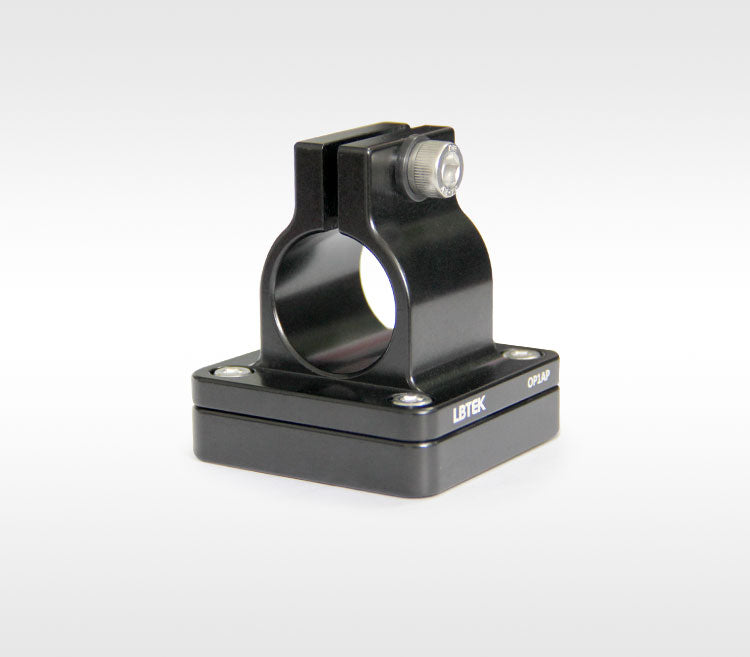

The OP1AP post adapter from LBTEK is an accessory for Ø25 mm post, it is designed to hold Ø25 mm mechanical or optical components as a post adapter. It features a side M6 screw to lock the clamping mechanism. The adapter includes a 50.8 mm × 50.8 mm mounting plate at its base, with a cross-pattern array of 25 M4 and 24 M6 tapped holes. The spacing between the same type of tapped holes is 12.5 mm, allowing the mounting of various optomechanical bases and mirror mounts. The OP1AP can also be supported by optical posts and adapters, serving as a clamp for optomechanical or optical components.
Key Features
- Clamping mechanical or optical components with Ø25 mm;
- Mounting plate dimensions: 50.8 mm × 50.8 mm;
- Mounting plate provides two types of tapped holes: M4× 25 and M6× 24;
- Spacing between same type tapped holes: 12.5 mm;
- Fixing screw type on the side: M6;
Application
OP1AP is used as an adapter for Ø25 mm post.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Ø25 mm Post Adapter (5 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Ø25 mm Post Adapter PTM1 |
PTM1
| — | — | — | View |
| Ø25 mm Post Adapter OP1AD-05OP |
OP1AD-05OP
| — | — | — | View |
| Ø25 mm Post Adapter OP1AD-60C |
OP1AD-60C
| — | — | — | View |
| Ø25 mm Post Adapter OP1AD-30C |
OP1AD-30C
| — | — | — | View |
| Ø25 mm Post Adapter OP1AP Current |
OP1AP
| — | — | — |
