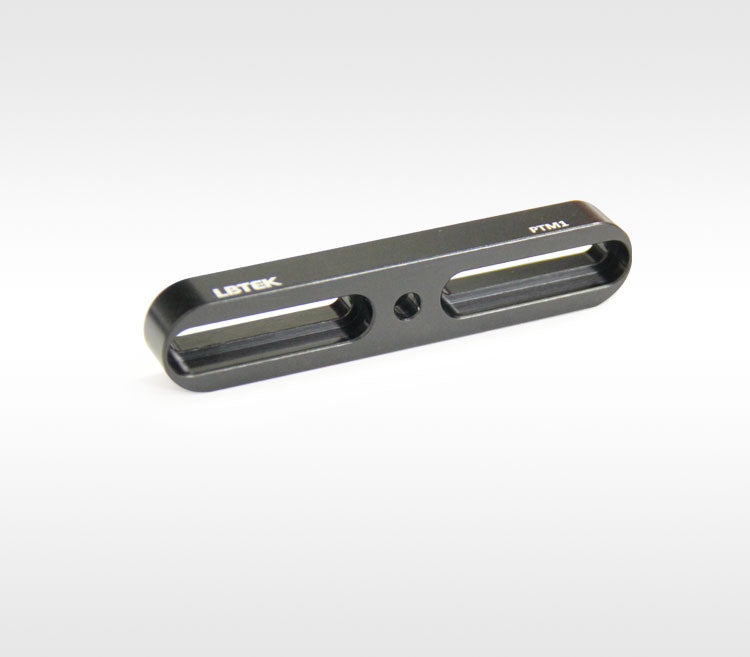

Ø25 mm Post Adapter — Model PTM1
✔ In Stock — Ships Today
The PTM1 bracket adapter from LBTEK enables compact adaptation of multiple optical components onto a single post, eliminating the need for multiple posts and connectors to save space. This adapter is compatible with both Ø25 mm and Ø12.7 mm diameter posts. It features M4 screws for installation through either the center countersunk hole or the side countersunk slots, allowing for either centered or eccentric mounting. When optomechanical components are mounted using the side countersunk slots, they can be positioned at offsets ranging from 10 mm to 36 mm from the adapter's central M4 countersunk hole.
Key Features
- Allowing compact adaptation of multiple optical components onto the same post;
- Compatible with Ø25 mm and Ø12.7 mm diameter posts;
- Center countersunk hole type: M4;
Application
PTM1 is used as a bracket adapter for optical components.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Ø25 mm Post Adapter (5 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Ø25 mm Post Adapter PTM1 Current |
PTM1
| — | — | — | |
| Ø25 mm Post Adapter OP1AD-05OP |
OP1AD-05OP
| — | — | — | View |
| Ø25 mm Post Adapter OP1AD-60C |
OP1AD-60C
| — | — | — | View |
| Ø25 mm Post Adapter OP1AD-30C |
OP1AD-30C
| — | — | — | View |
| Ø25 mm Post Adapter OP1AP |
OP1AP
| — | — | — | View |
