Ø25mm Optical Post Without Base and Spacer — Model OP1-45B6

✔ In Stock — Ships Today

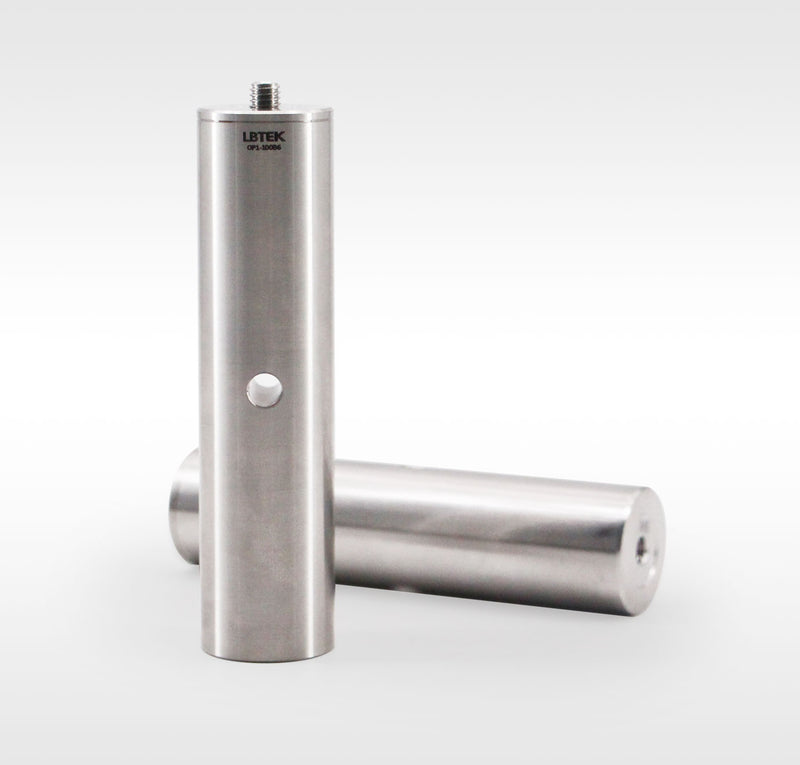

The Ø25 mm optical post without base from LBTEK features M6 tapped holes at both the top and bottom centers. Two Ø2 mm non-through location pins at the top enable precision length stacking. It is available in 20 lengths: 10mm, 12.5mm, 20mm, 25mm, 30mm, 38mm, 40mm, 45mm, 50mm, 55mm, 60mm, 70mm, 75mm, 80mm, 85mm, 100mm, 200mm, 300mm, 400mm, 500 mm. Among them, the OP1-10B6 and the OP1-12.5B6 model features a center M6 tapped through-hole, while all other lengths utilize M6 tapped non-through hole. Each purchase of LBTEK Ø25 mm optical post without base includes one socket set screw matching the top tapped hole specification.

Key Features

M6 tapped hole at the top and bottom center;
It is available in 20 lengths:10 mm, 12.5mm, 20 mm, 25mm, 30 mm, 38 mm, 40 mm, 45 mm, 50 mm, 55 mm, 60 mm, 70 mm, 75 mm, 80 mm, 85 mm, 100 mm, 200 mm, 300 mm, 400mm, 500mm;
Each purchase includes one M6 cup-point set screw;

Application

The Ø25mm optical post without base is commonly used to support optical component mounts.

Parallelism

＜20 um

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

Product Family: Ø25mm Optical Post Without Base and Spacer (50 variants)
