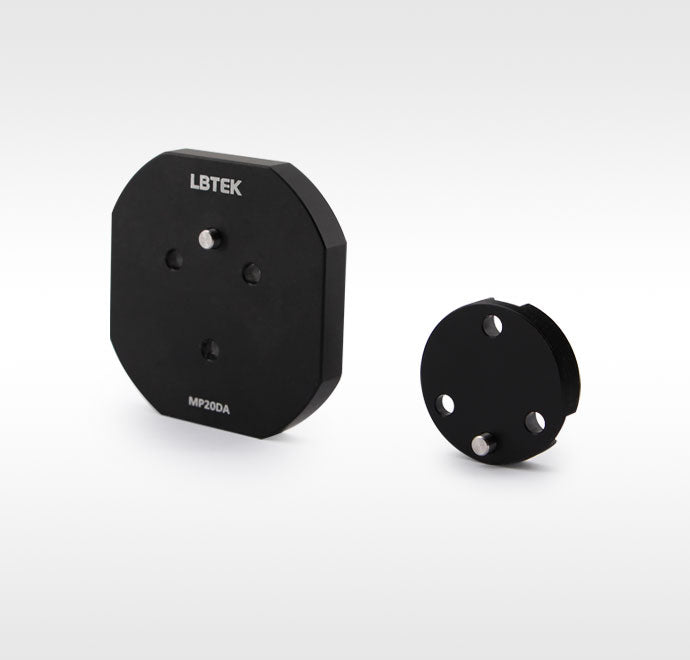

Adapter for Ø25.4 mm Off-axis Parabolic Mirrors — Model MP2ODA
Adapter for Ø25.4 mm Off-axis Parabolic Mirrors
Product Description
- Off-axis parabolic mirror adapters;
- Optional outside diameter of smooth-bore and screw thread;
The off-axis parabolic mirror adapters from LBTEK adapt off-axis parabolic mirrors to various mechanical mounts and coaxial system components. Each adapter features three M3 countersunk holes and one alignment pin to facilitate secure mirror installation.
Adapter for Ø25.4 mm Off-axis Parabolic Mirrors
- For Mounting Ø25.4 mm Off-Axis Parabolic Mirrors
- Includes Three M3 Countersunk Holes and One Alignment Pin
- MPSM1TA: SM1 External Threads
- MP2ODA: Ø50.8 mm Smooth Outer Diameter
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
