Optical Component Adapter — Model MAL-6.5
✔ In Stock — Ships Today

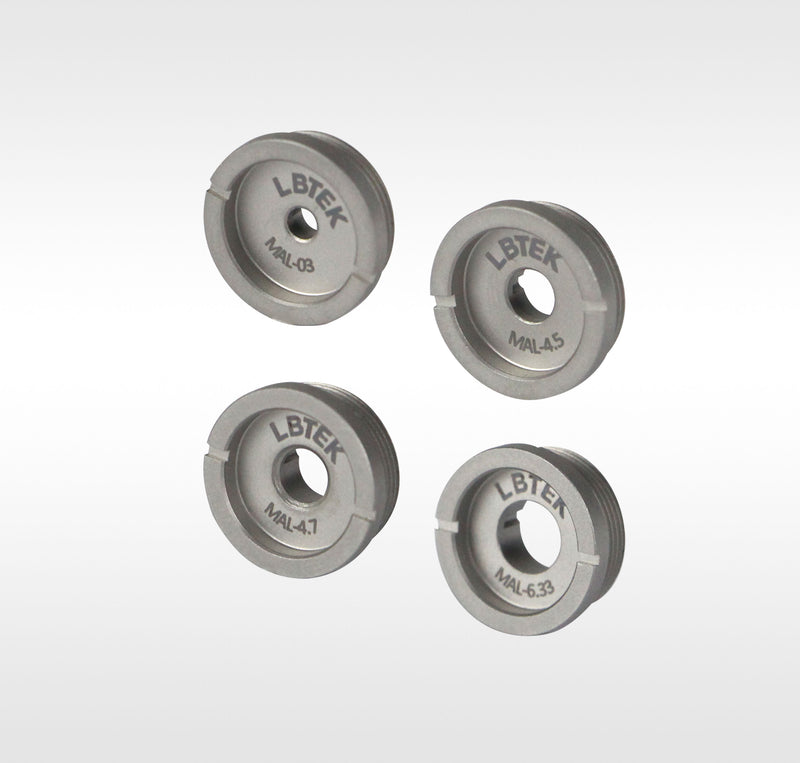

The stainless steel adapters with males from LBTEK are manufactured from 303 stainless steel with adhesive groove holes. Aspheric condenser lenses are epoxy-bonded inside these adapters, supporting Ø2 mm, Ø2.4 mm, Ø2.65 mm, Ø3 mm, Ø4 mm, Ø4.5 mm, Ø4.7 mm, Ø6 mm, Ø6.33 mm, Ø6.5 mm, Ø7.2 mm, and Ø9.95 mm diameters. The included SM05 females allow the adapters to be mounted into holders with SM05 female. LBTEK also offers customerization for special sizes and specifications. For specific requirements, please contact LBTEK Technical Support.
Key Features
- 303 Stainless Steel
- Surface Treatment: Sandblasting + Passivation
- Tapped Specification: SM05
- Compatible with Ø2, Ø2.4, Ø2.65, Ø3, Ø4, Ø4.5, Ø4.7, Ø6, Ø6.33 mm, Ø6.5, Ø7.2, Ø9.95 mm optical component;
- Optical Component Fixing Method: Bonding
Application
The aspheric condenser lens adapter is mounted on the FLF05A.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Optical Component Adapter (18 variants)
