Optical Component Adapter — Model MTAD-18
✔ In Stock — Ships Today

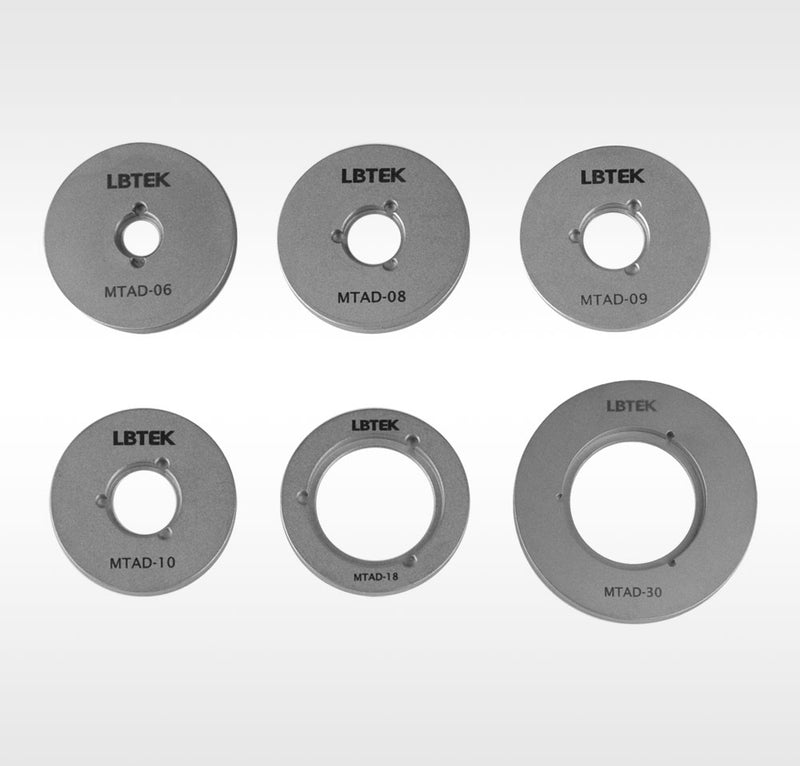

The stainless steel optical component adapters from LBTEK are manufactured from 303 stainless steel with adhesive groove holes. Optical components are epoxy-bonded inside these adapters and then be secured in SM1/SM2 mounts using retaining rings. Alternatively, the optical components can be fixed in optical component mounts with Ø25.4/50.8 mm through-holes using set screws.
Key Features
- Material: 303 Stainless Steel
- Compatible with optical components: Ø6, Ø8, Ø9, Ø10, Ø18, Ø30 mm;
- Optical Component Fixation Method: Adhesive Bonding;
Application
The Ø8 mm optical component is fixed to the adapter, then installed inside the Ø25.4 mm mounting base.
| Clear Aperture | Ø15.76 mm |
| Material | 303 Stainless Steel |
| Applicable optical element diameter | Ø18 mm |
| Dimensions | Ø25.4×3 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
