Plano-Concave Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted CC10612-A

Name: Plano-Concave Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted CC10612-A
Brand: WaveQuanta
SKU: CC10612-A
Price: 42.76 SGD
Availability: InStock

CC10612-A

$42.76

In Stock

Key Specifications

Wavelength 400.0nm

Diameter 25.4mm

LIDT 0.19J/cm²

Reflectance 0.5%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Plano-Concave Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted — Model CC10612-A

Operating wavelength 400 nm-700 nm, focal length -75.0 mm, Ø25.4 mm, substrate N-BK7.

Product Description

Optical Material: N-BK7
Operating Wavelength: 400 nm-700 nm (AR Coating)
Application: Imaging, Beam Expansion or Reduction

A plano-concave lens has one concave surface and one flat surface, featuring a negative focal length. It is commonly used for beam collimation, increasing (or decreasing) focal length, or enlarging (or reducing) images. To minimize spherical aberration, when the incident beam is collimated, it should be directed onto the concave surface of the plano-concave lens. N-BK7 is the most common lens material, widely used in visible and near-infrared applications. In addition to N-BK7 plano-concave lenses, LBTEK also offers N-SF11, UV fused silica, and calcium fluoride plano-concave lenses. N-SF11 has a lower Abbe number, making it suitable for lenses with shorter focal lengths. UV fused silica exhibits excellent transmittance in the ultraviolet range and a low coefficient of thermal expansion, while calcium fluoride boasts an extremely high damage threshold and chemical inertness. LBTEK provides uncoated plano-concave lenses as well as lenses with three types of anti-reflection coatings: 400 nm–700 nm, 700 nm–1100 nm, and 1100 nm–1650 nm. All our lenses undergo precision machining and strict quality control, ensuring that LBTEK delivers high-quality lens products at reasonable prices.

Plano-Concave Lens, N-BK7, AR Coating: 400 nm-700 nm, Unmounted

Substrate Material: N-BK7
Operating Wavelength: 400 nm-700 nm (AR Coating)
Application: Imaging, Beam Expansion or Reduction

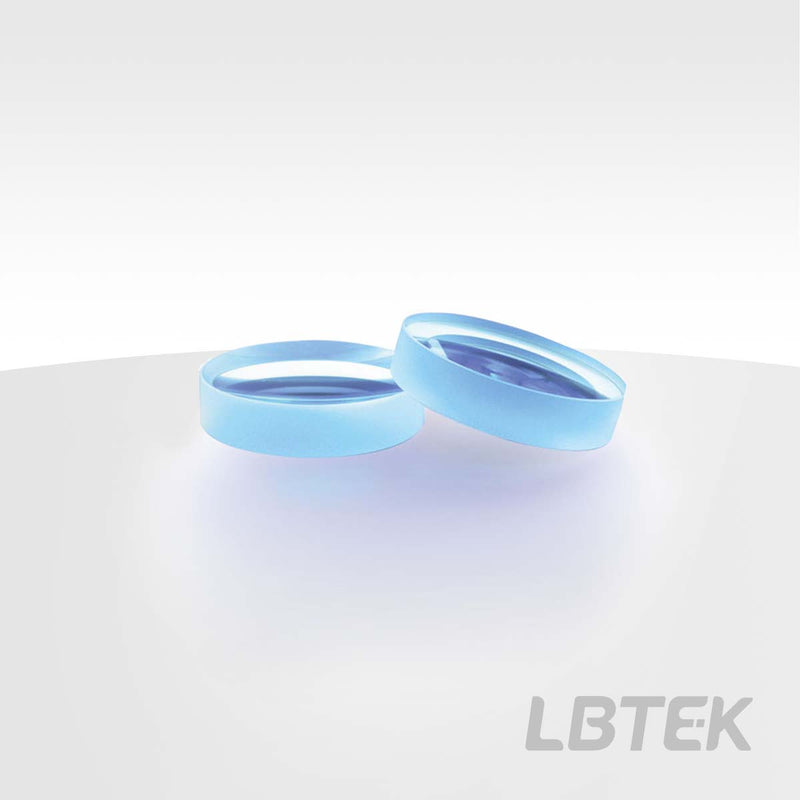

The LBTEK Plano-Concave Lens has a negative focal length and is commonly used in applications such as imaging or beam collimation. LBTEK plano-concave lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK can be mounted in LBTEK standard lens tubes, fixed lens holders, and various coaxial mounting plates. Customers can choose the optimal mounting method based on different application scenarios.

Clear Aperture	90% CA
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Diameter Tolerance	+0.00/-0.10 mm
Clear Aperture	90% CA
Operating Wavelength	400 nm-700 nm
Diameter	25.4 mm
Eccentricity	≤3 arcmin
Design Wavelength	587.6 nm
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)

Low damage threshold detected (0.19 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

3D Model (STL) STL — Download

Product Family: Plano-Concave Lens, N-BK7, AR Coating: 400 nm-700 nm (14 variants)
