Plano-Concave Lens, N-BK7, AR Coating: 400 nm-700 nm — Model MCC10307-A

Operating wavelength 400 nm-700 nm, focal length -30.0 mm, Ø12.7 mm, substrate N-BK7.

Product Description

Optical Material: N-BK7
Operating Wavelength: 400 nm-700 nm (AR Coating)
Application: Imaging, Beam Expansion or Reduction

A plano-concave lens has one concave surface and one flat surface, featuring a negative focal length. It is commonly used for beam collimation, increasing (or decreasing) focal length, or enlarging (or reducing) images. To minimize spherical aberration, when the incident beam is collimated, it should be directed onto the concave surface of the plano-concave lens. N-BK7 is the most common lens material, widely used in visible and near-infrared applications. In addition to N-BK7 plano-concave lenses, LBTEK also offers N-SF11, UV fused silica, and calcium fluoride plano-concave lenses. N-SF11 has a lower Abbe number, making it suitable for lenses with shorter focal lengths. UV fused silica exhibits excellent transmittance in the ultraviolet range and a low coefficient of thermal expansion, while calcium fluoride boasts an extremely high damage threshold and chemical inertness. LBTEK provides uncoated plano-concave lenses as well as lenses with three types of anti-reflection coatings: 400 nm–700 nm, 700 nm–1100 nm, and 1100 nm–1650 nm. All our lenses undergo precision machining and strict quality control, ensuring that LBTEK delivers high-quality lens products at reasonable prices.

Plano-Concave Lens, N-BK7, AR Coating: 400 nm-700 nm

Substrate Material: N-BK7
Operating Wavelength: 400 nm-700 nm (AR Coating)
Application: Imaging, Beam Expansion or Reduction
Pre-installed Mechanical Housing

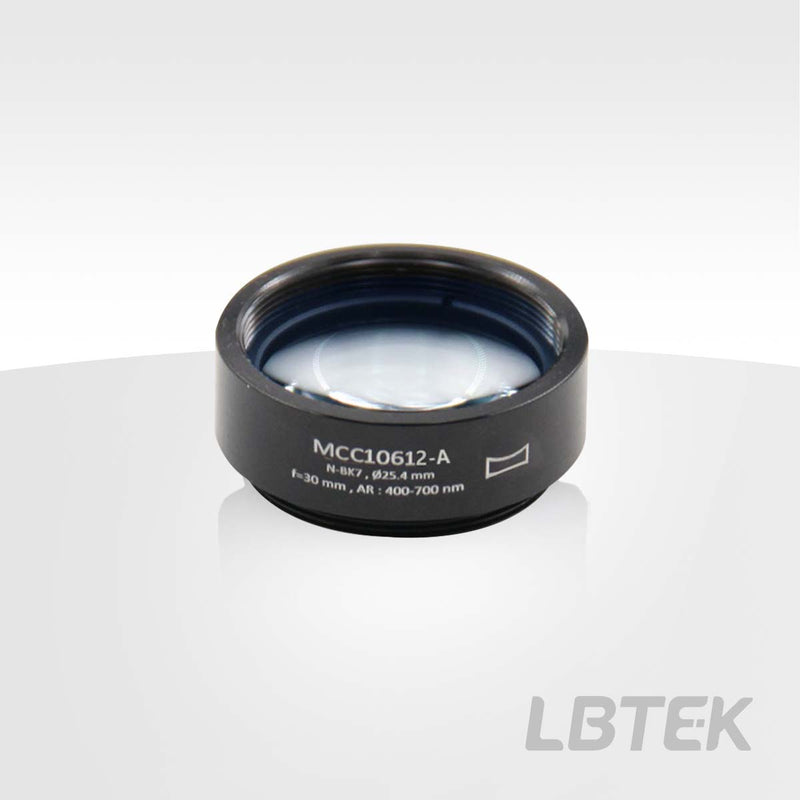

LBTEK Plano-Concave Lens have a negative focal length and are commonly used in applications such as imaging or beam collimation. LBTEK plano-concave lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK come pre-installed with standard lens tubes or lens mounting adapters. These mechanical components are engraved with product model, type, diameter, and focal length for easy identification of lens parameters by users.

Clear Aperture	90% CA
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Diameter Tolerance	+0.00/-0.10 mm
Clear Aperture	90% CA
Operating Wavelength	400 nm-700 nm
Diameter	12.7 mm
Eccentricity	≤3 arcmin
Design Wavelength	587.6 nm
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)

Low damage threshold detected (0.19 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

Curve - N-BK7 UN

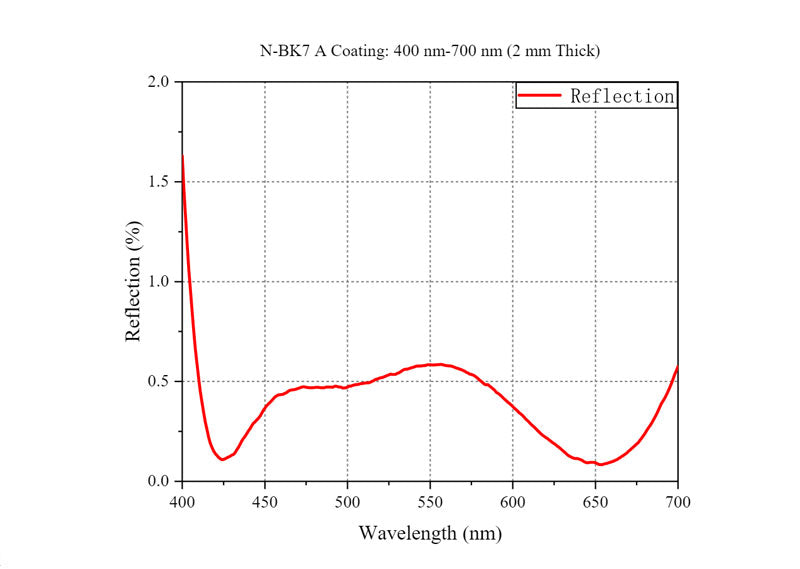

Curve - N-BK7 A

Product Family: Plano-Concave Lens, N-BK7, AR Coating: 400 nm-700 nm (14 variants)
