What is the damage threshold of Plano-Convex Cylindrical Lens, N-BK7, AR coating: 400-700 nm CY108114-A?

Plano-Convex Cylindrical Lens, N-BK7, AR coating: 400-700 nm CY108114-A has a laser-induced damage threshold (LIDT) of 0.19 J/cm².

What is the focal length of Plano-Convex Cylindrical Lens, N-BK7, AR coating: 400-700 nm CY108114-A?

Plano-Convex Cylindrical Lens, N-BK7, AR coating: 400-700 nm CY108114-A has a focal length of 100.0 mm.

Is Plano-Convex Cylindrical Lens, N-BK7, AR coating: 400-700 nm CY108114-A available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

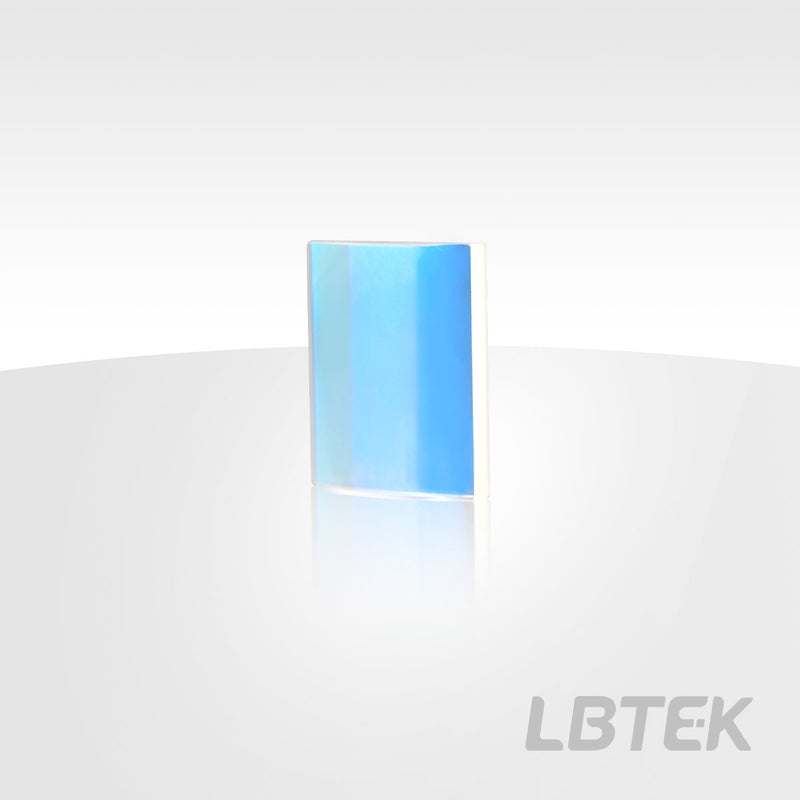

Plano-Convex Cylindrical Lens, N-BK7, AR coating: 400-700 nm CY108114-A

Name: Plano-Convex Cylindrical Lens, N-BK7, AR coating: 400-700 nm CY108114-A
Brand: WaveQuanta
SKU: CY108114-A
Price: 163.99 SGD
Availability: InStock

CY108114-A

$163.99

In Stock

Key Specifications

Wavelength 400.0nm

LIDT 0.19J/cm²

Reflectance 0.5%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Plano-Convex Cylindrical Lens, N-BK7, AR coating: 400-700 nm — Model CY108114-A

Operating wavelength 400 nm-700 nm, focal length 100.0 mm, substrate N-BK7.

Product Description

Optical Material: N-BK7
Operating Wavelength: 400 nm-700 nm (AR Coating)
Application: Imaging, Unidirectional Beam Collimation, Beam Shaping

The Plano-Convex Cylindrical Lens has one flat surface and one cylindrical surface, with a positive focal length. Unlike spherical lenses, cylindrical lenses only act on the beam in one direction. Cylindrical lenses are generally used for beam shaping, with typical applications including collimation and circularization of laser diode output beams using dual cylindrical lens setups. To reduce spherical aberration, when a plano-convex cylindrical lens is used to focus a collimated beam into a line, the beam should be incident on the curved surface of the lens; when collimating a line source, the beam should be incident on the flat surface of the lens. LBTEK chooses to use N-BK7 to manufacture various lenses, as N-BK7 is the most common lens material, widely used in visible and near-infrared applications. LBTEK offers Uncoated Plano-Convex Cylindrical Lenses as well as lenses with three types of anti-reflection coatings: 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1650 nm. Our lenses are finely processed with strict quality control, ensuring that LBTEK provides High-Quality Lens Products to users at reasonable prices.

Plano-Convex Cylindrical Lens, N-BK7, AR coating: 400-700 nm

Substrate Material: N-BK7
Operating Wavelength: 400 nm-700 nm (AR Coating)

Unlike spherical lenses, cylindrical lenses act on the light beam in only one direction. LBTEK Plano-Convex Cylindrical Lenses are ideal for one-dimensional magnification applications. Typical applications include collimation and circularization of laser diode output beams using dual cylindrical lens assemblies. To minimize spherical aberration, when plano-convex cylindrical lenses are used to focus a collimated beam into a line, the beam should be incident on the curved surface of the lens; when collimating a linear light source, the beam should be incident on the planar surface of the lens.

Clear Aperture	90%
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)
Clear Aperture	90%
Operating Wavelength	400 nm-700 nm
Eccentricity	≤5 arcmin
Design Wavelength	587.6 nm
Substrate Material	H x L= 30.0 mm x 32.0 mm
Damage Threshold	0.19J/cm2@515nm, 290fs, 100Hz, Ø10.72μm (100 Pulses)

Low damage threshold detected (0.19 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

3D Model (STL) STL — Download

Product Family: Plano-Convex Cylindrical Lens, N-BK7, AR coating: 400 nm-700 nm (18 variants)
