Plano-Convex (PCX) Lenses, UV Fused Silica, AR Coating: 700-1100nm, Unmounted CX20305-1064-SP

CX20305-1064-SP
$140.20
In Stock
Key Specifications
Wavelength 1064.0nm
Diameter 12.7mm
Reflectance 0.25%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

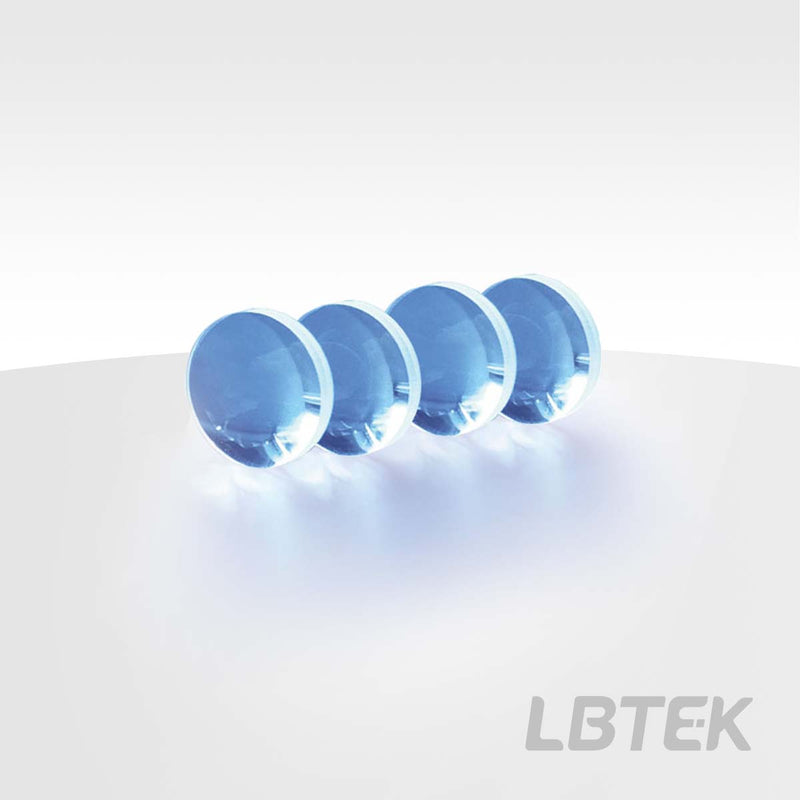

Plano-Convex (PCX) Lenses, UV Fused Silica, AR Coating: 700-1100nm, Unmounted — Model CX20305-1064-SP

Operating wavelength 1064 nm, focal length 25 mm, Ø12.7 mm, substrate UV Fused Silica.

Product Description

  • Substrate: UV Fused Silica
  • Wavelength Range: 700 nm-1100 nm
  • Application: Imaging, Beam Expansion or Reduction, Light Convergence

LBTEK plano-convex lenses feature positive focal lengths and are commonly used in imaging and beam collimation applications. They are manufactured from RoHS-compliant UVFS glass and are primarily used in the UV and near-infrared regions. All LBTEK circular lenses come pre-mounted in standard lens tubes or lens mounting adapters. These mechanical components are engraved with the model number, type, diameter, and focal length, allowing users to quickly identify lens specifications.

Plano-Convex (PCX) Lenses, UV Fused Silica, AR Coating: 700-1100nm, Unmounted

  • Substrate Material: UVFS
  • Operating Wavelength: 700 nm-1100 nm
  • Application: Imaging, Collimation, Beam Expansion

LBTEK plano-convex lenses are made of UV-grade fused silica glass, offering better homogeneity and lower thermal expansion coefficient compared to N-BK7 glass, making them ideal for ultraviolet and near-infrared wavelength applications. LBTEK plano-convex lenses feature positive focal lengths and are commonly used in imaging or beam collimation applications. All LBTEK unmounted lenses can be installed in LBTEK standard lens tubes, fixed lens mounts, and various coaxial mounting plates, allowing customers to choose the optimal mounting solution for different application scenarios.

Clear Aperture90% CA
Operating Wavelength1064 nm
Diameter12.7 mm
Eccentricity≤3 arcmin
Design Wavelength1064 nm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
Curve - Reflection-VS-Wavelength（B-Coating-700-1100-nm）
Curve - Reflection-VS-Wavelength（B-Coating-700-1100-nm）
Curve - Transmission-VS-Wavelength（B-Coating：700-1100-nm）
Curve - Transmission-VS-Wavelength（B-Coating：700-1100-nm）
