Plano-Convex (PCX) Lenses, UV Fused Silica, AR Coating: 700-1100nm, Mounted MCX20613-B

MCX20613-B
$162.15
In Stock
Key Specifications
Wavelength 700.0nm
Diameter 25.4mm
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Plano-Convex (PCX) Lenses, UV Fused Silica, AR Coating: 700-1100nm, Mounted — Model MCX20613-B

Operating wavelength 700 nm-1100 nm, focal length 100.3 mm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

  • Substrate: UV Fused Silica
  • Wavelength Range: 700 nm-1100 nm
  • Application: Imaging, Beam Expansion or Reduction, Light Convergence

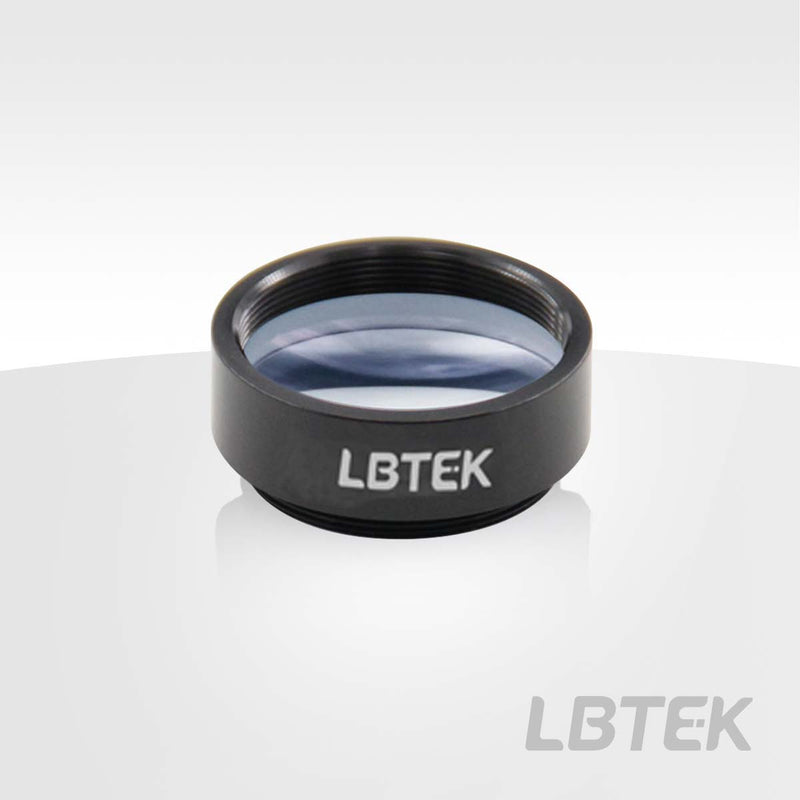

LBTEK plano-convex lenses feature positive focal lengths and are commonly used in imaging and beam collimation applications. They are manufactured from RoHS-compliant UVFS glass and are primarily used in the UV and near-infrared regions. All LBTEK circular lenses come pre-mounted in standard lens tubes or lens mounting adapters. These mechanical components are engraved with the model number, type, diameter, and focal length, allowing users to quickly identify lens specifications.

Plano-Convex (PCX) Lenses, UV Fused Silica, AR Coating: 700-1100nm, Mounted

  • Substrate Material: UVFS
  • Operating Wavelength: 700 nm-1100 nm
  • Application: Imaging, Collimation, Beam Expansion
  • Mounted in Mechanical Housing

LBTEK plano-convex lenses are made from UV fused silica glass, which offers improved homogeneity and a lower thermal expansion coefficient than N-BK7 glass. They are primarily used in the UV and near-infrared regions. They have a positive focal length and are often used in imaging or beam collimation applications. LBTEK mounted lenses are mounted in standard lens tubes, which are engraved with the model number, type, diameter, and focal length for quick identification.

Clear Aperture90% CA
Operating Wavelength700 nm-1100 nm
Diameter25.4 mm
Eccentricity≤3 arcmin
Design Wavelength587.6 nm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
Curve - Reflection-VS-Wavelength（B-Coating-700-1100-nm）
Curve - Reflection-VS-Wavelength（B-Coating-700-1100-nm）
Curve - Transmission-VS-Wavelength（B-Coating：700-1100-nm）
Curve - Transmission-VS-Wavelength（B-Coating：700-1100-nm）
