WaveQuanta

Polarization-Maintaining Single-Mode Fiber Patch Cord PMC1950-APC-10

PMC1950-APC-10
$1,171.25
In Stock· Ships in 5.0 weeks
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

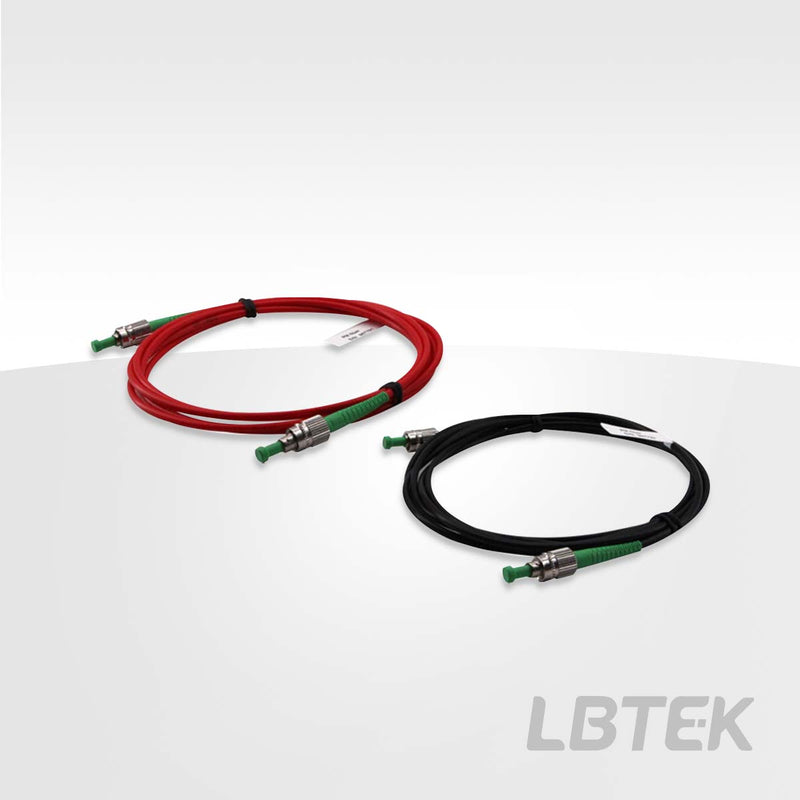

LBTEK polarization-maintaining single-mode fiber patch cords feature high-quality ceramic connectors at both ends, polished to ensure a typical return loss of 50 dB. Each patch cord is tested under specified wavelength conditions to guarantee low insertion loss and high extinction ratio. Protective caps are included on both connectors to prevent dust or other contaminants from damaging the ferrule end faces, ensuring high stability and reliability. The FC/APC protective caps are green in color, while the visible light wavelength patch cords have black jackets and the infrared wavelength patch cords feature red jackets.

  • Typical Insertion Loss: ≤1.2 dB
  • Wavelength Range: 400 nm-2200 nm
  • Extinction Ratio: ≥15 dB
Specifications diagram
Fiber length 10.0 m
Wavelength range 1850 nm-2200 nm
Numerical Aperture 0.2
Extinction ratio ≥20 dB
Operating Temperature 0°C-70°C
Wavelength Range 1720 nm±80 nm
Connector Type FC/APC
Mode Field Diameter 8.0 um@1950 nm
Fiber core diameter 7.0 um
Cladding diameter 125 um
Coating layer diameter 245 um
Insertion Loss (Max) 0.3 dB
Return Loss 0.5 dB
Minimum Return Loss 50 dB
Loose tube diameter Ø3.0 mm
Storage Temperature -40°C-85°C
Center Wavelength 2000 nm
Maximum Pulling Force 5 N
Fiber Model PM1950
Lead Time: 5.0 week1s
No CAD drawings available for this product.
