Polarization-Maintaining Single-Mode Fiber Patch Cord PMC980-PC-2

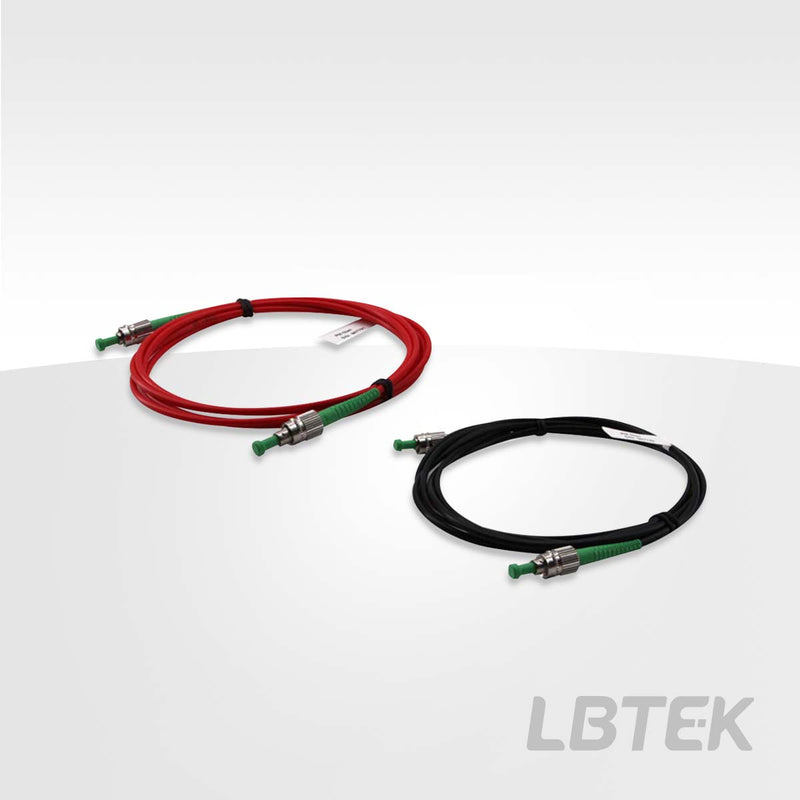

LBTEK polarization-maintaining single-mode fiber patch cords feature high-quality ceramic connectors at both ends, polished to ensure a typical return loss of 50 dB. Each patch cable is tested under specified wavelength conditions to guarantee low insertion loss and high extinction ratio. Protective caps are included on both ends to prevent dust or other contaminants from affecting the ferrule end face, ensuring high stability and reliability. The FC/PC protective caps are white, while the visible light wavelength patch cords have black jackets, and infrared wavelength patch cables have red jackets. Note: FC/PC and FC/UPC differ only in polishing methods, hence they are collectively referred to as FC/PC connectors.

• Typical Insertion Loss: ≤1.2 dB
• Wavelength Range: 400 nm-2200 nm
• Extinction Ratio: ≥15 dB
