Polymer Annular Shaping DOEs VR25H-1064-1
VR25H-1064-1$1,019.61
In Stock
Key Specifications
Wavelength
1030.0nm
Design Tools
Grating Angle Calculator
Compute diffraction angles and efficiency
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
The LBTEK Polymer Annular Shaping DOE is fabricated using UVFS substrates and Liquid Crystal Polymer (LCP) materials, featuring a sandwich structure that converts incident TEM00 Gaussian beams into intensity distributions with central holes.
The Polymer Annular Shaping DOE is specially optimized for industrial applications with enhanced material durability. It offers high efficiency, stability, ease of operation, and a high damage threshold, with excellent temperature stability and a wide range of incident angles.
Key Features
- Liquid Crystal Polymer/UVFS Window Sheet substrate, sandwich flat structure
- Applicable for generating annular (ring-shaped) beams
- Highly efficient and stable, easy to operate, large incident angle, high damage threshold
- Design wavelength: 532 nm, 1064 nm; annular order m: 1, 2, 4 available
- Flexible customization of parameter specifications available
m=1 Series
The LBTEK m=1 Polymer Annular Shaping DOE is suitable for incident light with diameters ranging from Ø1.0 mm to Ø21.5 mm, with a conversion efficiency of ≥99.5%. The DOE converts TEM00 Gaussian beams into annular intensity distributions with a central hole corresponding to topological order m=1.
| Element Material | Liquid Crystal Polymer / UVFS Window Sheet |
| Element Dimensions | Ø25.4x3.2 mm |
| Clear Aperture | Ø21.5 mm |
| Operating Wavelength | 1030 to 1080 nm |
| Surface Quality | 40/20 |
| Diffraction Efficiency | ≥99.5% |
| Reflectivity (AR) | Ravg < 0.5% @working wavelength |
| Angle of Incidence | ±20° |
| AOI Tolerance | ±1° |
| Test Aperture | Ø1.0 to Ø21.5 mm |
| Topological Charge Order (m) | 1 |
| Retardation | λ/2 |
| Conversion Efficiency | >98% |
| Transmitted Wavefront Error | <λ/4 @633 nm |
| Eccentricity | <0.5 mm |
| Parallelism (Edge) | <1 arcmin |
| Delay Accuracy & Uniformity | ±5 nm |
| Operating Temperature | -20 to 80 deg C |
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

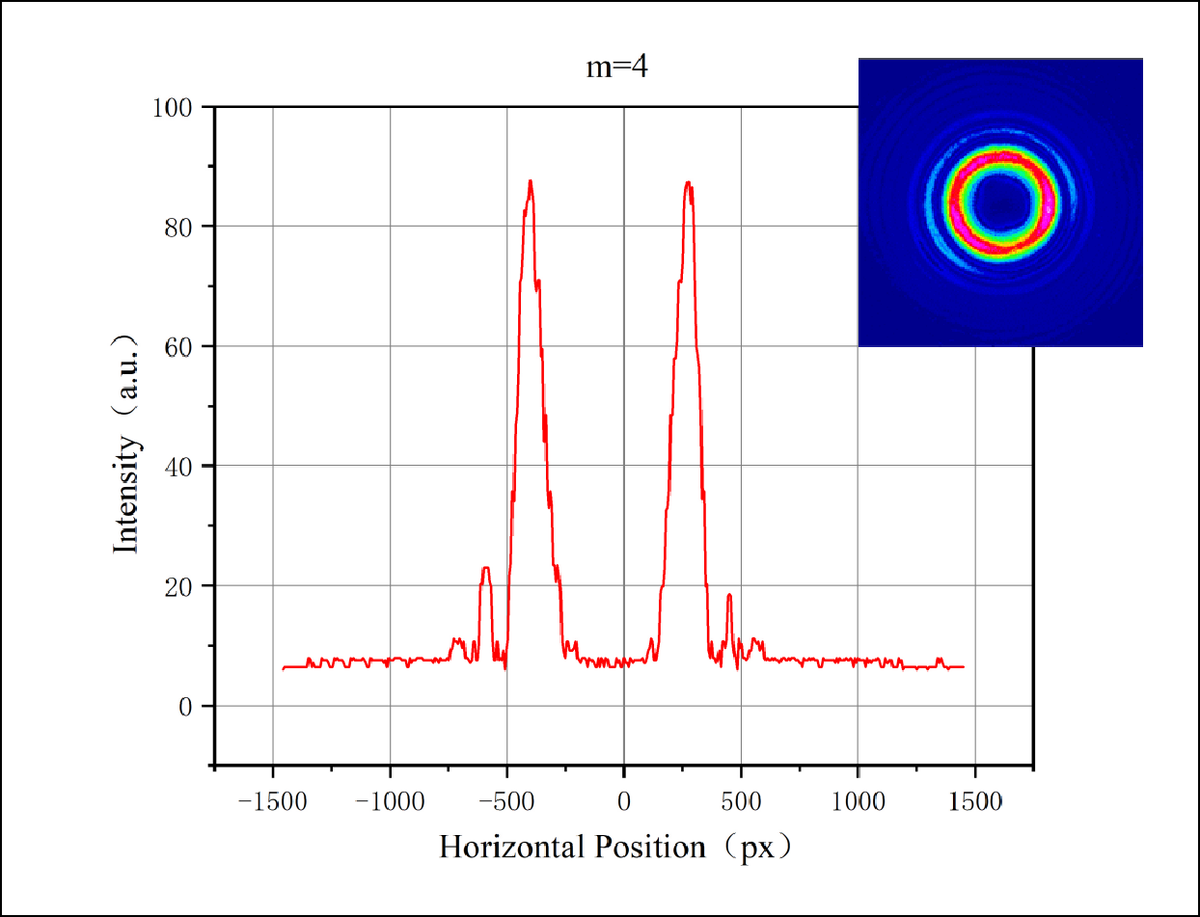

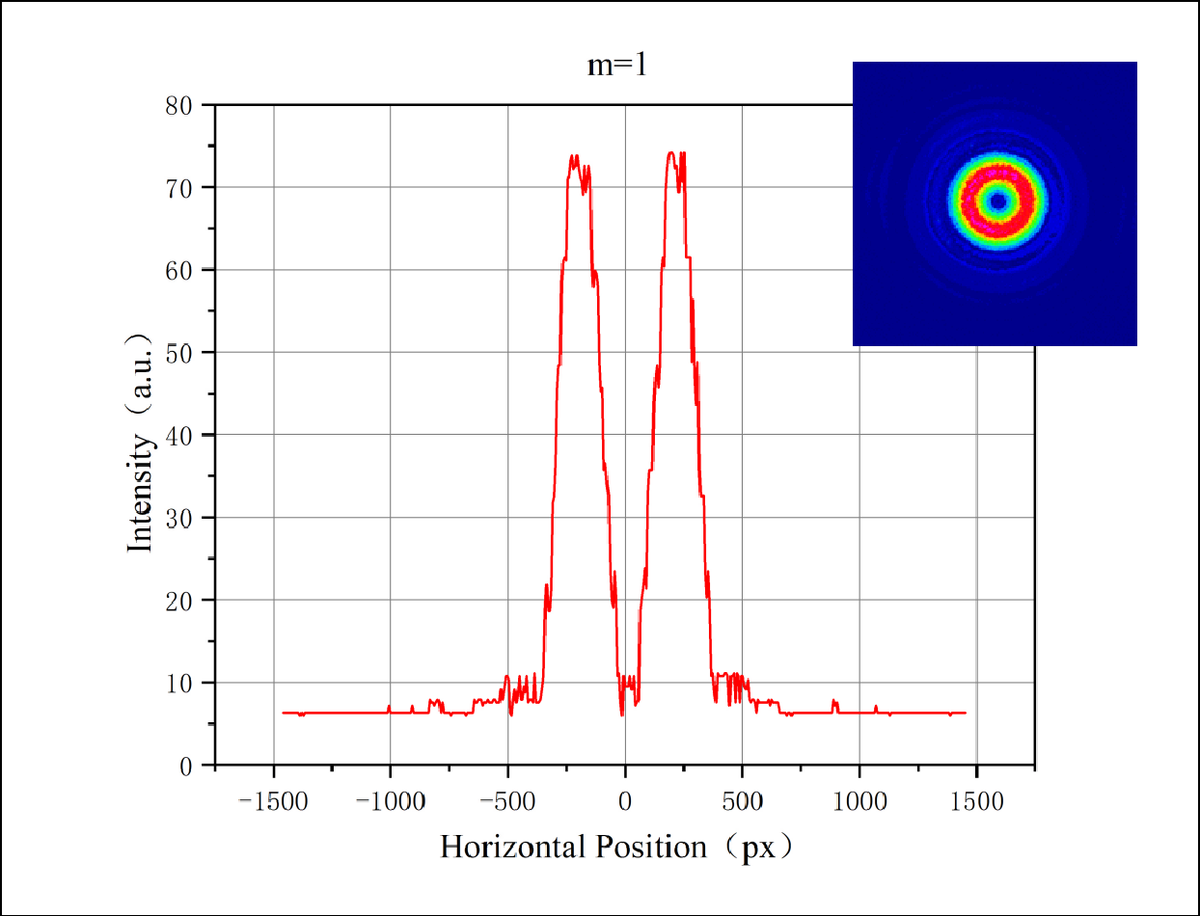

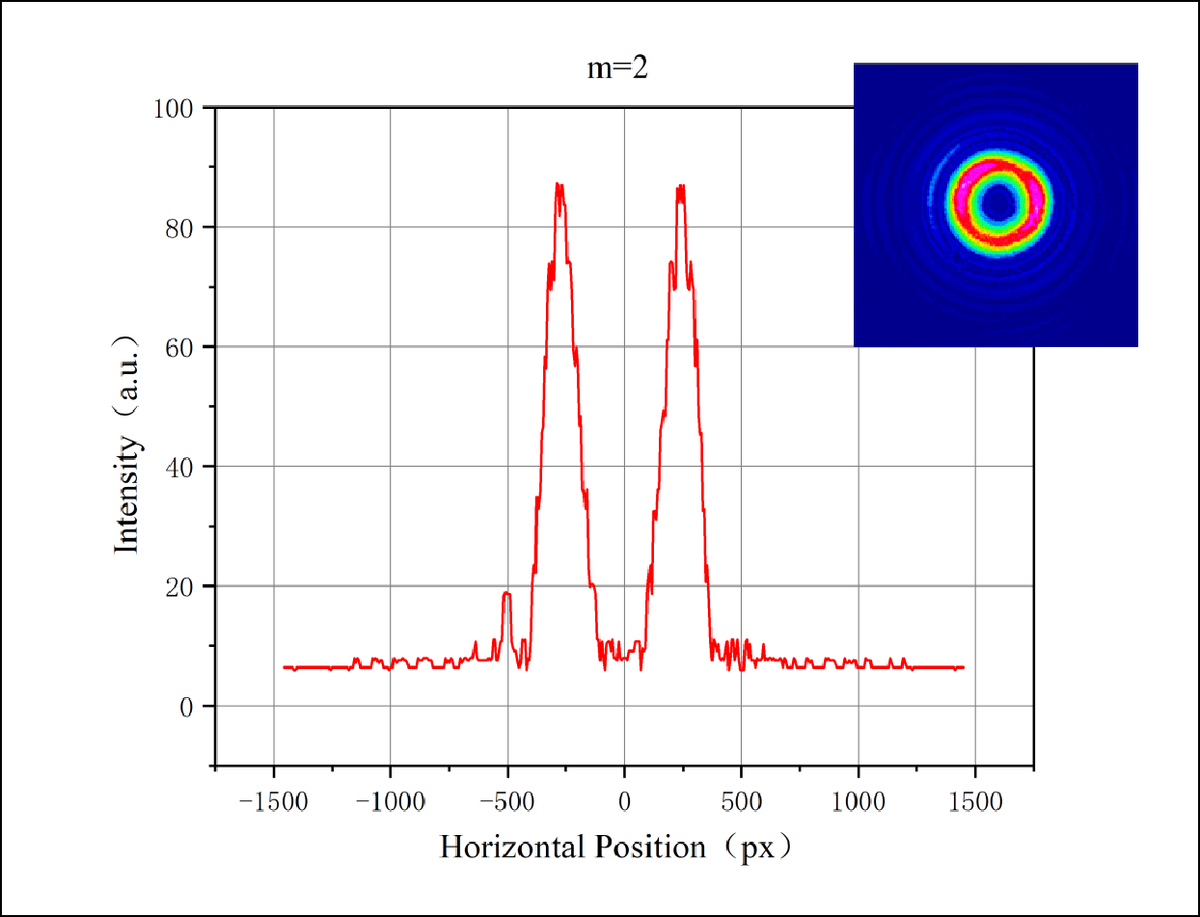

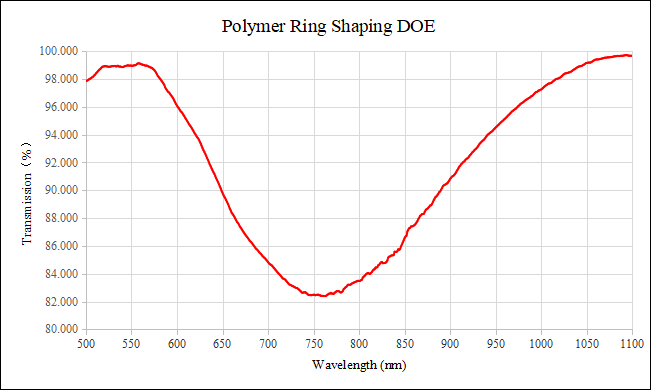

Curve 1
