Portable Digital Optical Power Meters LYNX
LYNX$1,163.60
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
LYNX

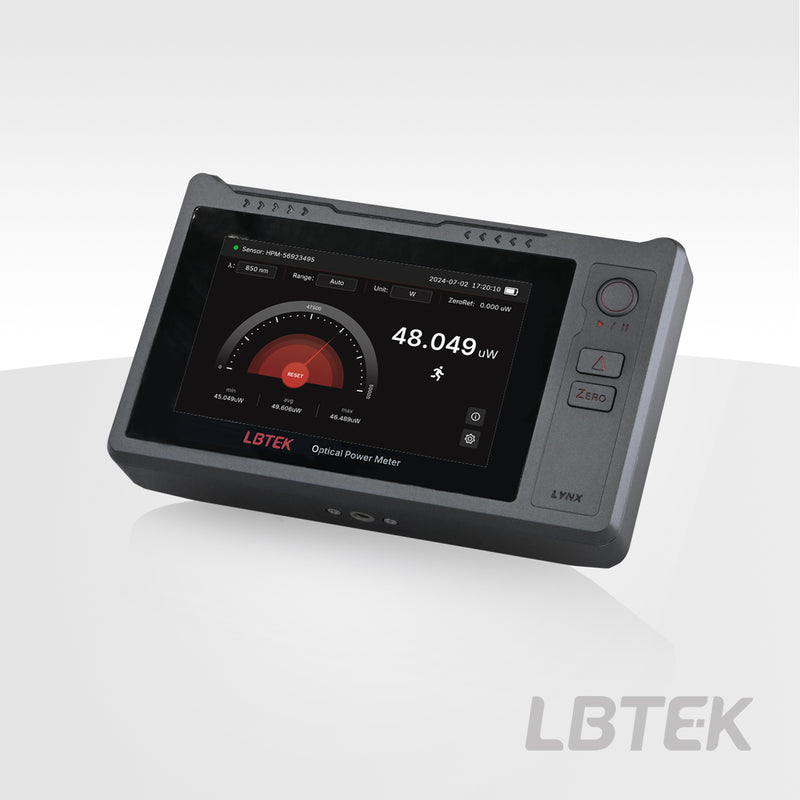

Portable Digital Optical Power Meter — 5-inch Touch Display, Built-in Battery
Overview
The LYNX is a portable optical power meter console with a 5-inch capacitive LCD touch display and built-in 5000mAh Li-Po battery providing over 4 hours of continuous operation. Pairs with PMS and PMIS series sensor heads for complete optical power measurement.
Key Features
- 5-inch capacitive LCD touch display
- 5000mAh built-in battery, ≥4h operation
- 1GB internal memory
- USB-C charging (DC 5V/1.5A)
- Compact: 180mm × 110mm × 40mm, ~700g
Applications
- Laser power measurement
- Fiber optic testing
- LED characterization
- Field measurement
| Sampling Rate | 5 Hz |
| Product Dimensions | 180 mm × 110 mm × 40 mm |
| Weight | Approximately 700 g |
| Operating Temperature | 0 ℃ — 40 ℃ |
| Storage Temperature | -40 ℃ — 70 ℃ |

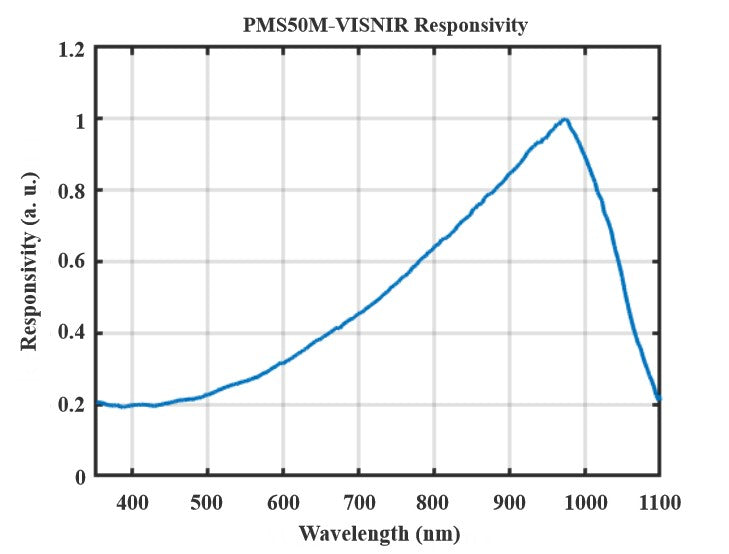

Performance 1 — Graph

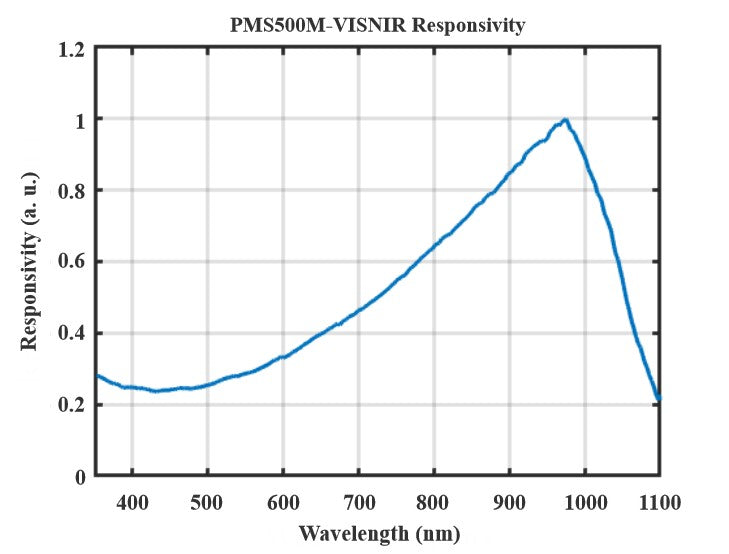

Performance 2 — Graph

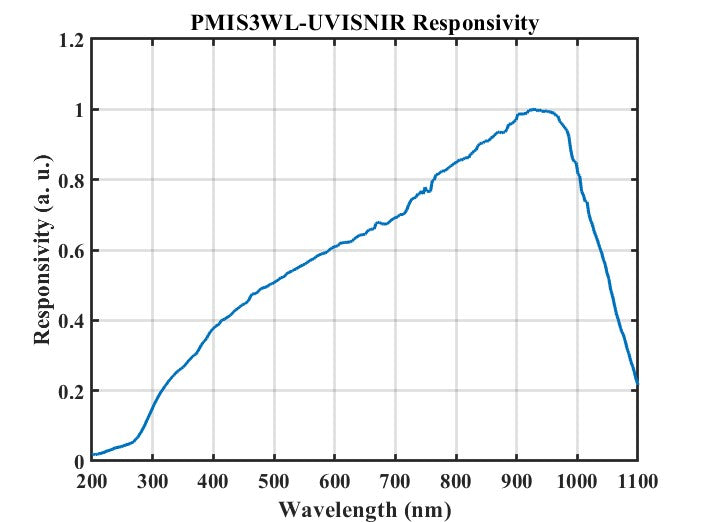

Performance 4 — Graph

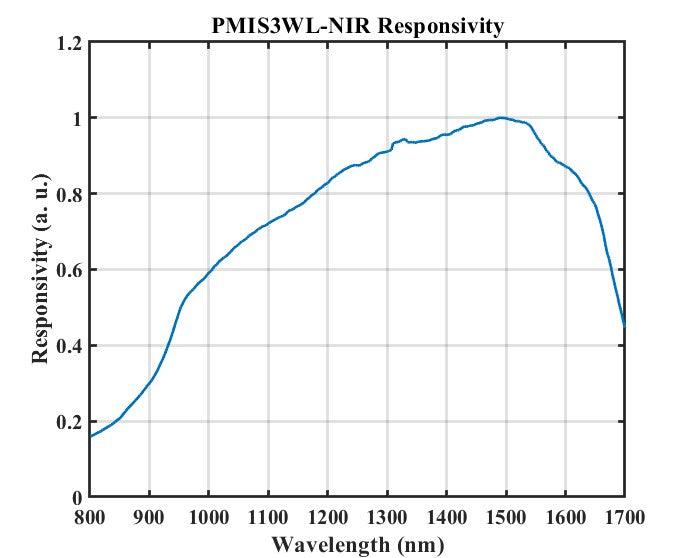

Performance 5 — Graph

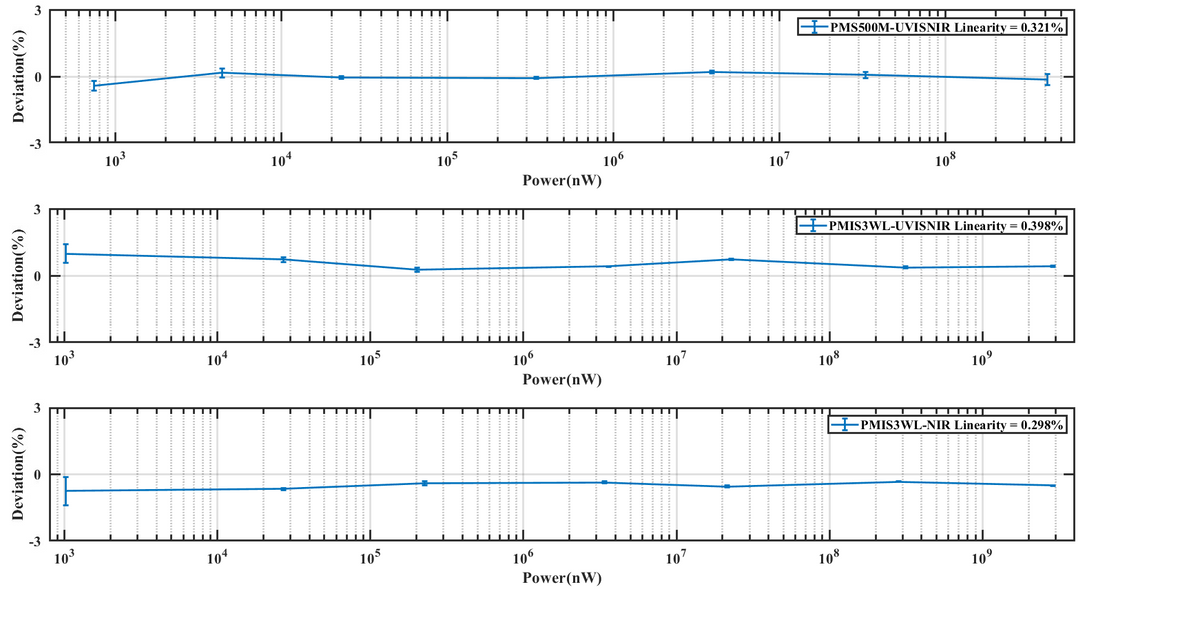

Performance 7 — Graph

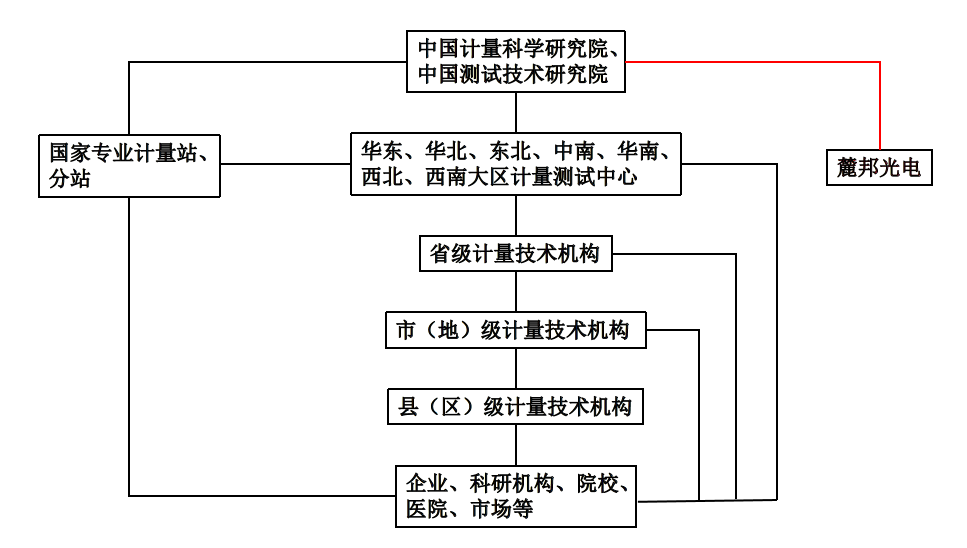

Performance 8 — Graph

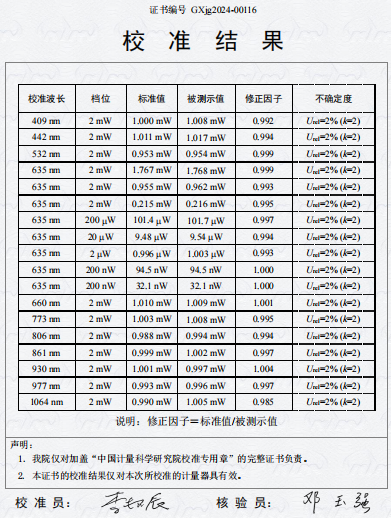

Performance 9 — Graph

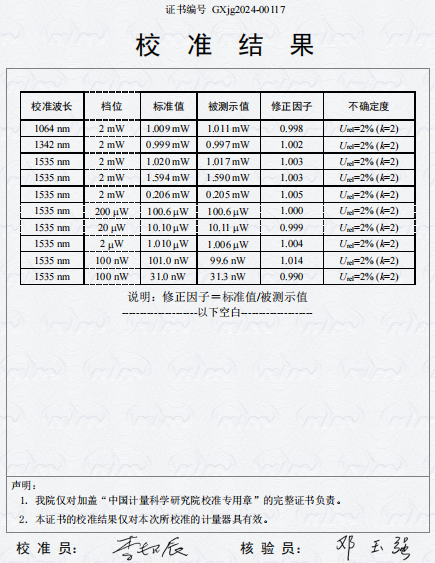

Performance 10 — Graph

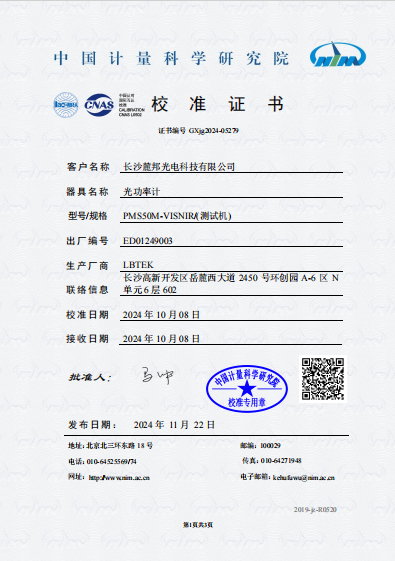

Performance 11 — Graph
Performance 12 — Graph
Performance 13 — Graph
Performance 15 — Graph
Performance 16 — Graph
