What wavelength range does Quartz Zero-Order Half-Wave Plate — HWP10-1550B support?

Quartz Zero-Order Half-Wave Plate — HWP10-1550B operates at a center wavelength of 1550.0 nm.

What documentation is available for Quartz Zero-Order Half-Wave Plate — HWP10-1550B?

The following documents are available for download on the Quartz Zero-Order Half-Wave Plate — HWP10-1550B product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Quartz Zero-Order Half-Wave Plate — HWP10-1550B available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

Quartz Zero-Order Half-Wave Plate — HWP10-1550B

Name: Quartz Zero-Order Half-Wave Plate — HWP10-1550B
Brand: WaveQuanta
SKU: HWP10-1550B
Price: 735.18 SGD
Availability: InStock

HWP10-1550B

$735.18

In Stock

Key Specifications

Wavelength 1550.0nm

Transmittance 0.25%

Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Quartz Zero-Order Half-Wave Plate — Model HWP10-1550B

λ/2 quartz waveplate at 1550 nm, mounted in standard SM housing.

Overview

LBTek's Quartz Zero-Order Half-Wave Plates deliver a λ/2 retardance at the design wavelength. The air-spaced compound design combines two quartz plates for cost-effective zero-order performance. Each plate is anti-reflection coated on both surfaces (R < 0.25% @ design wavelength) and mounted in a standard SM05 or SM1 lens tube for seamless integration into polarization control setups.

Key Features

Zero-Order (air-spaced compound) design at the specified design wavelength
Retardance: λ/2
V-type anti-reflection coating on both surfaces
Surface finish 10/5 to 20/10
Operating temperature tolerant, polarization-stable
Mounted in standard SM05 / SM1 housing for seamless integration

Applications

Polarization state conversion (linear ↔ circular / elliptical)
Laser isolator, interferometry, and ellipsometry systems
Quantum optics and photonic research
Integration with polarizing beamsplitters and prisms

Optical component material	Quartz Crystal
Diameter	25.4 mm
Diameter tolerance	+0.0/-0.1 mm
Clear Aperture	Ø10.0 mm
Thickness	4.8 mm
Design Wavelength	1550 nm
Operating Wavelength	1550 nm
Coating	V-type anti-reflection coating (@1550 nm)
Anti-reflective coating	Ravg<0.25%ᵃ (6°incidence angle, single surface)
Latency	λ/2
Delay accuracy	±λ/300
Surface finish (scratches/pits)	20/10
Transmitted Wavefront Error (TWE) (@633 nm)	λ/8
Surface Parallelism	<10 arcsec

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

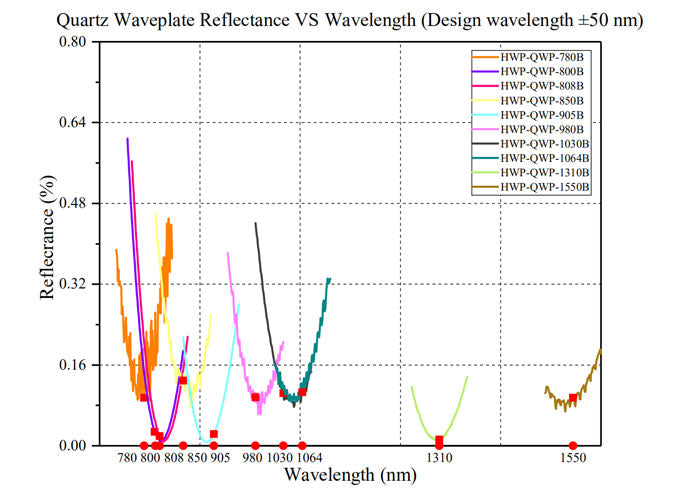

Curve 2

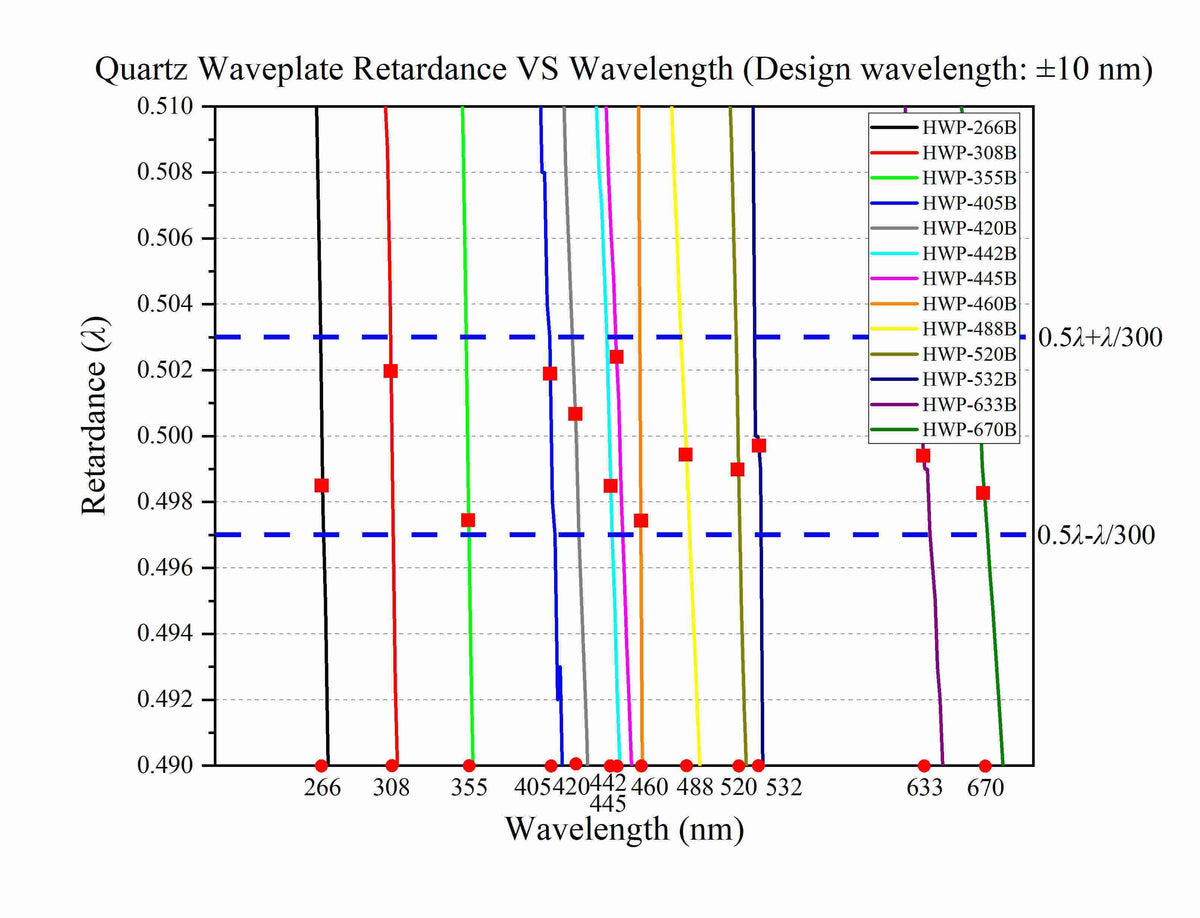

The Curve of Center Wavelength Retardance of Waveplate (±10 nm）

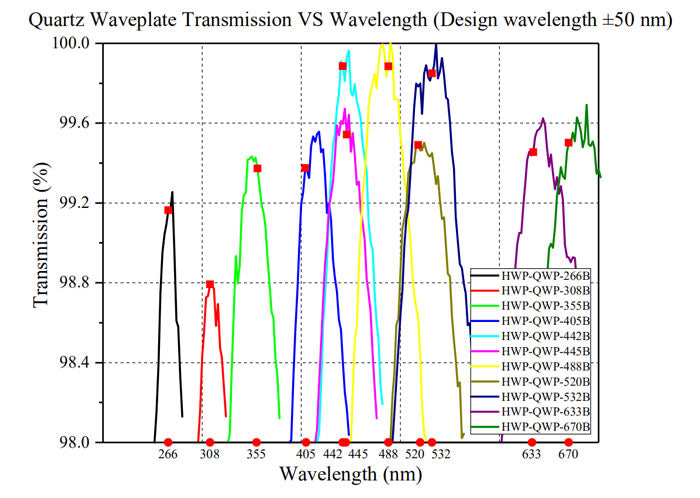

Curve 5

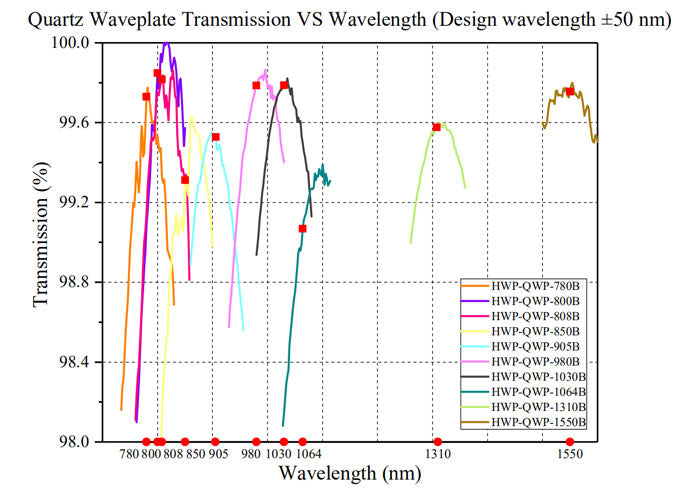

Curve 6

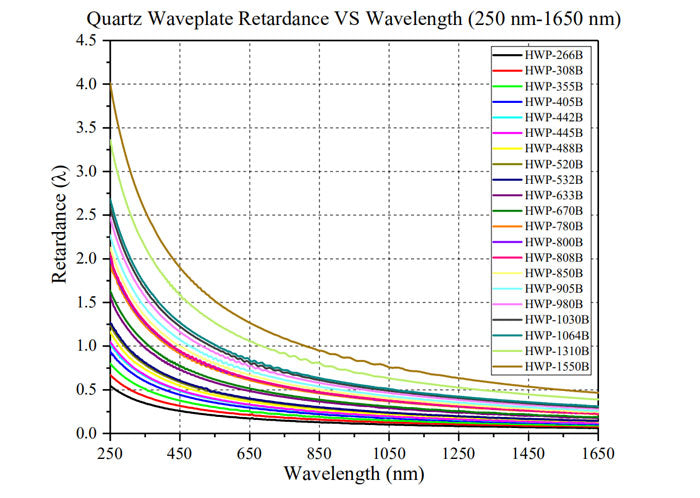

Curve 7
