Quartz Zero-Order Half-Wave Plate — HWPSM05-830B

HWPSM05-830B
$735.18
In Stock
Key Specifications
Wavelength 830.0nm
Transmittance 0.25%
Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Quartz Zero-Order Half-Wave Plate — Model HWPSM05-830B

λ/2 quartz waveplate at 830 nm, mounted in standard SM housing.

Overview

LBTek's Quartz Zero-Order Half-Wave Plates deliver a λ/2 retardance at the design wavelength. The air-spaced compound design combines two quartz plates for cost-effective zero-order performance. Each plate is anti-reflection coated on both surfaces (R < 0.25% @ design wavelength) and mounted in a standard SM05 or SM1 lens tube for seamless integration into polarization control setups.

Key Features

  • Zero-Order (air-spaced compound) design at the specified design wavelength
  • Retardance: λ/2
  • V-type anti-reflection coating on both surfaces
  • Surface finish 10/5 to 20/10
  • Operating temperature tolerant, polarization-stable
  • Mounted in standard SM05 / SM1 housing for seamless integration

Applications

  • Polarization state conversion (linear ↔ circular / elliptical)
  • Laser isolator, interferometry, and ellipsometry systems
  • Quantum optics and photonic research
  • Integration with polarizing beamsplitters and prisms
Optical component materialQuartz Crystal
Diameter12.7 mm
Diameter tolerance+0.0/-0.1 mm
Clear ApertureØ10.0 mm
Thickness11.3 mm (incl. thread length)
Design Wavelength830 nm
Operating Wavelength830 nm
CoatingV-type anti-reflection coating (@830 nm)
Anti-reflective coatingRavg<0.25%ᵃ (6°incidence angle, single surface)
Latencyλ/2
Delay accuracy±λ/300
Surface finish (scratches/pits)20/10
Transmitted Wavefront Error (TWE) (@633 nm)λ/8
Surface Parallelism<10 arcsec
Installation Service IncludedYes
Housing ModelSM05-8A (lens tube, SM05internal/external thread)
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

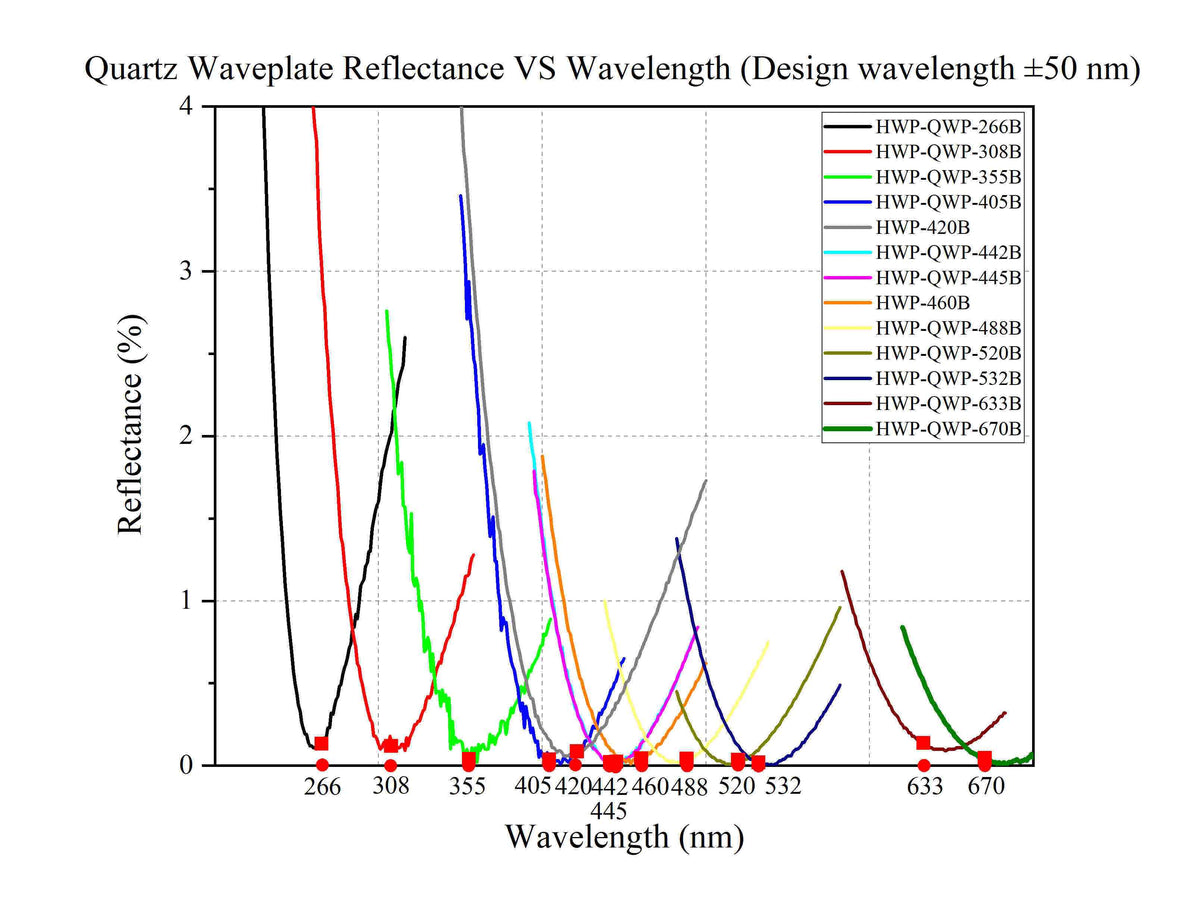

The Curve of Center Wavelength Reflectance of Waveplate (±50 nm）
The Curve of Center Wavelength Reflectance of Waveplate (±50 nm）

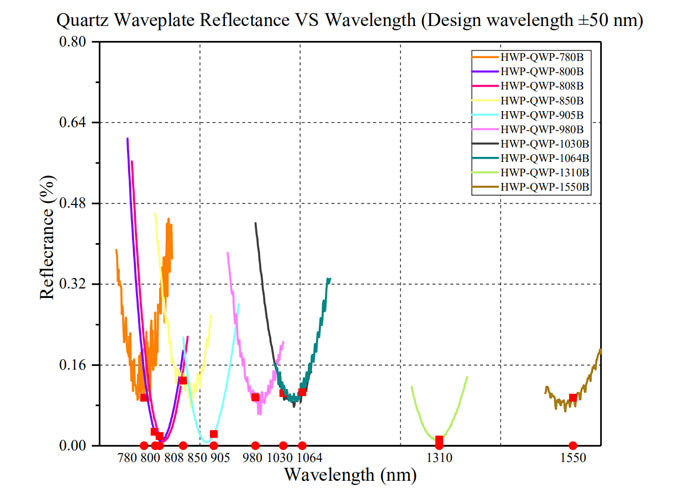

Curve 2
Curve 2

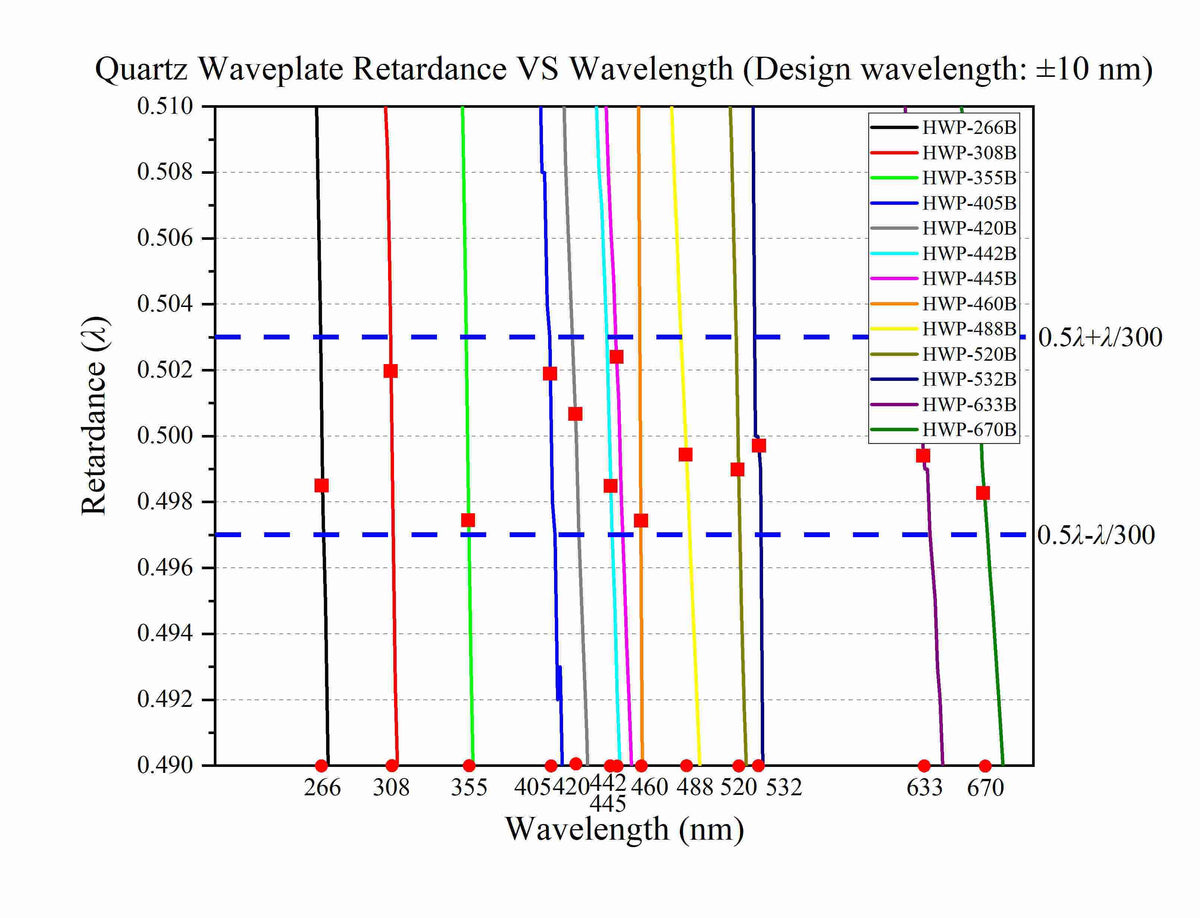

The Curve of Center Wavelength Retardance of Waveplate (±10 nm）
The Curve of Center Wavelength Retardance of Waveplate (±10 nm）

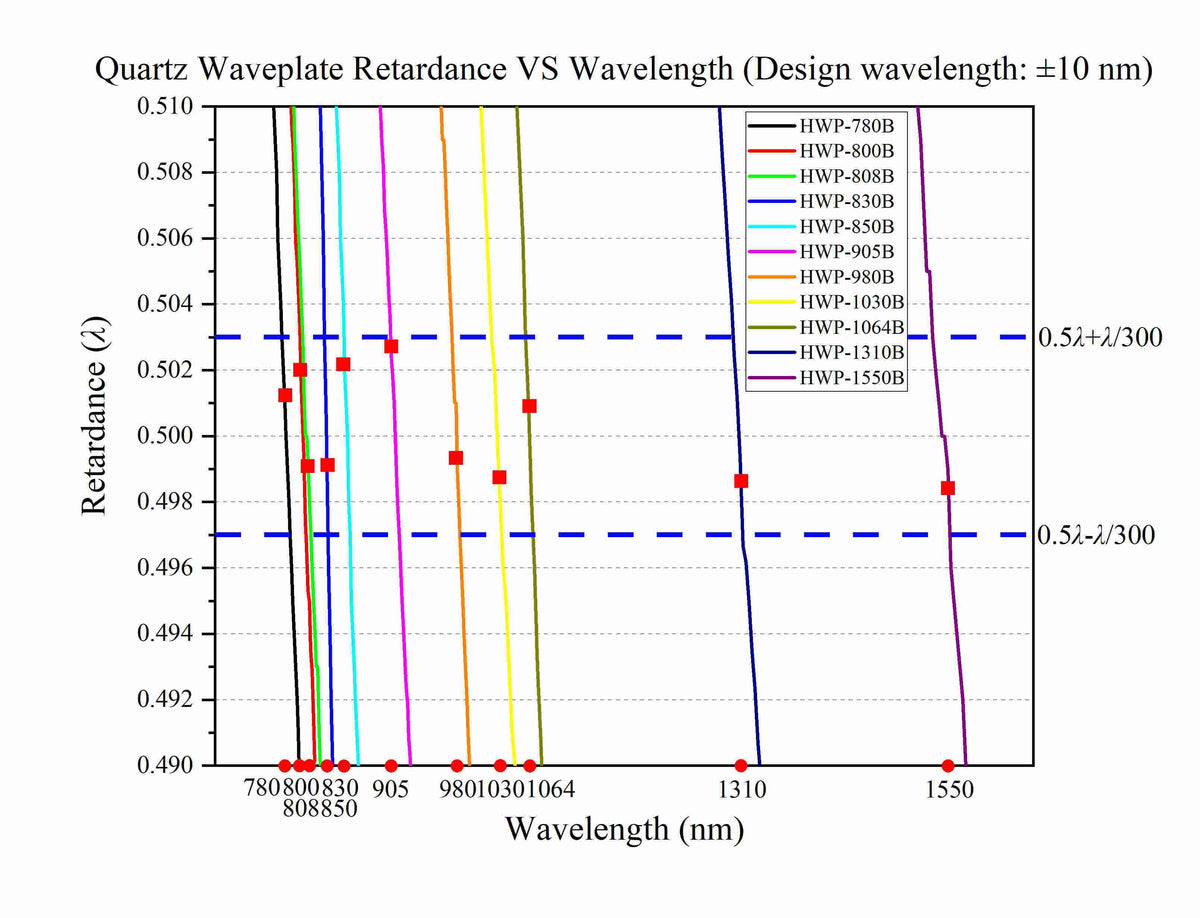

The Curve of Center Wavelength Retardance of Waveplate (±10 nm）
The Curve of Center Wavelength Retardance of Waveplate (±10 nm）

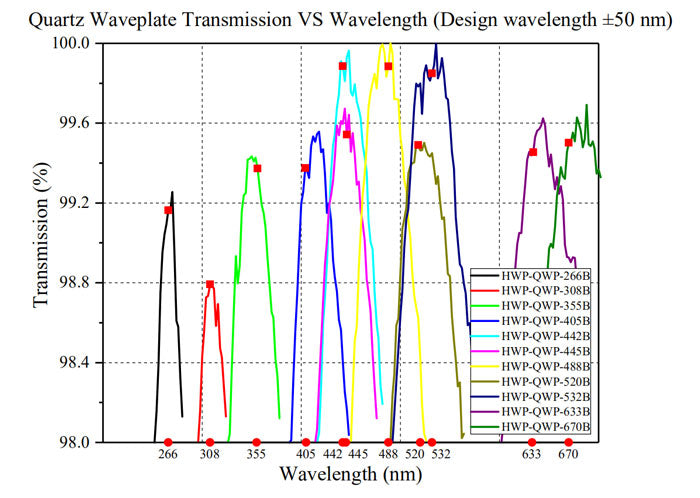

Curve 5
Curve 5

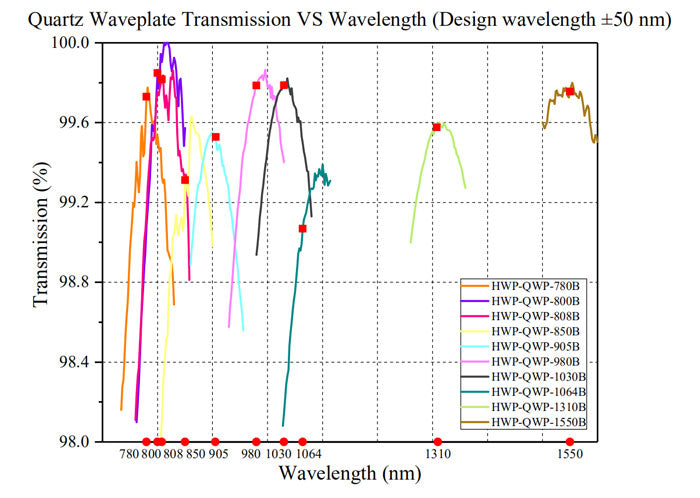

Curve 6
Curve 6

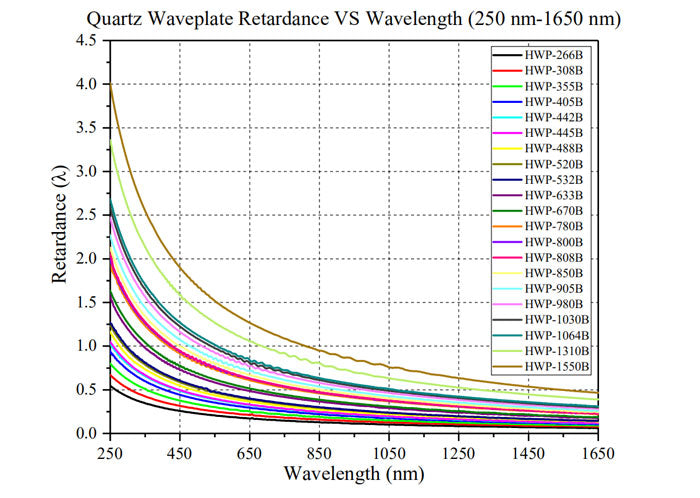

Curve 7
Curve 7
