Retaining Ring Adapter SM05D6
SM05D6$12.83
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
Retaining Ring Adapter — Model SM05D6
✔ In Stock — Ships Today

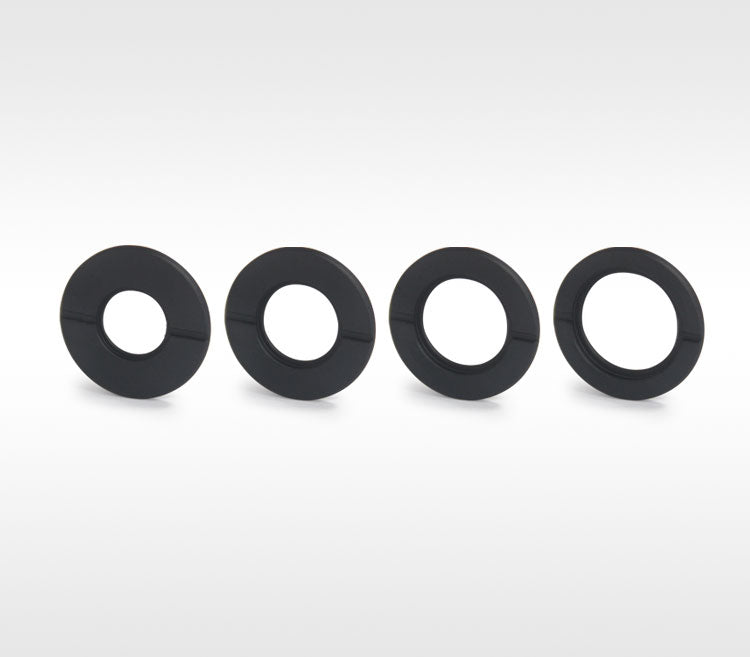

The SM05 retaining ring adapter from LBTEK enables optical components with diameters ranging from Ø6 mm to Ø10 mm to be adapted to Ø12.7 mm optical systems. The minimum thickness required for mounting optical components is 1.4 mm. When installing lenses, operate vertically to prevent lens drop and damage. The retaining ring adapters are used in pairs and then adapted to SM05 systems.
Key Features
- SM05-series female is designed for irregular-sized small lenses;
- Retaining rings are used in pairs
- Compatible with Ø6 mm, Ø8 mm, Ø9 mm, and Ø10 mm specifications;
- Minimum lens thickness of 1.4 mm;
Application
SM05 lens mounting adapter for retaining ring adapters.
| Clear Aperture | 4.8 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Retaining Ring Adapter (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Retaining Ring Adapter SM1D15 |
SM1D15
| — | — | — | View |
| Retaining Ring Adapter SM1D18 |
SM1D18
| — | — | — | View |
| Retaining Ring Adapter SM1D20 |
SM1D20
| — | — | — | View |
| Retaining Ring Adapter SM05D6 Current |
SM05D6
| — | — | — | |
| Retaining Ring Adapter SM05D8 |
SM05D8
| — | — | — | View |
| Retaining Ring Adapter SM05D9 |
SM05D9
| — | — | — | View |
| Retaining Ring Adapter SM05D10 |
SM05D10
| — | — | — | View |
