Retaining Ring Adapter — Model SM1D15
✔ In Stock — Ships Today

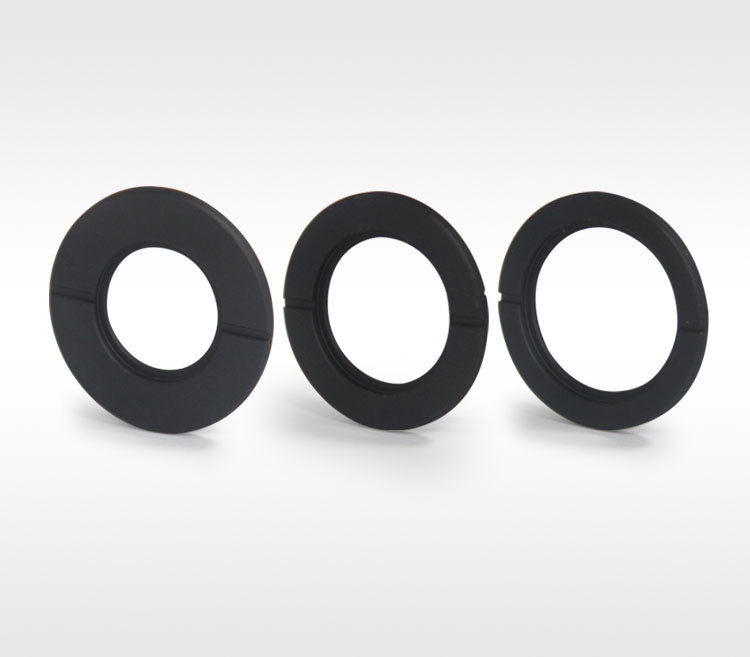

The SM1 retaining ring adapter from LBTEK enables optical components with diameters ranging from Ø15 mm to Ø20 mm to be adapted to Ø25.4 mm optical systems. The minimum thickness required for mounting optical components is 1.4 mm. When installing lenses, operate vertically to prevent lens drop and damage. The retaining ring adapters are used in pairs and then adapted to SM1 systems.
Key Features
- SM1-series female is designed for irregular-sized small lenses;
- Retaining rings are used in pairs;
- Compatible with Ø15 mm, Ø18 mm, and Ø20 mm specifications
- Minimum lens thickness of 1.4 mm;
Application
Lens installation for SM1 retaining ring adapter.
| Clear Aperture | 13.0 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Retaining Ring Adapter (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Retaining Ring Adapter SM1D15 Current |
SM1D15
| — | — | — | |
| Retaining Ring Adapter SM1D18 |
SM1D18
| — | — | — | View |
| Retaining Ring Adapter SM1D20 |
SM1D20
| — | — | — | View |
| Retaining Ring Adapter SM05D6 |
SM05D6
| — | — | — | View |
| Retaining Ring Adapter SM05D8 |
SM05D8
| — | — | — | View |
| Retaining Ring Adapter SM05D9 |
SM05D9
| — | — | — | View |
| Retaining Ring Adapter SM05D10 |
SM05D10
| — | — | — | View |
