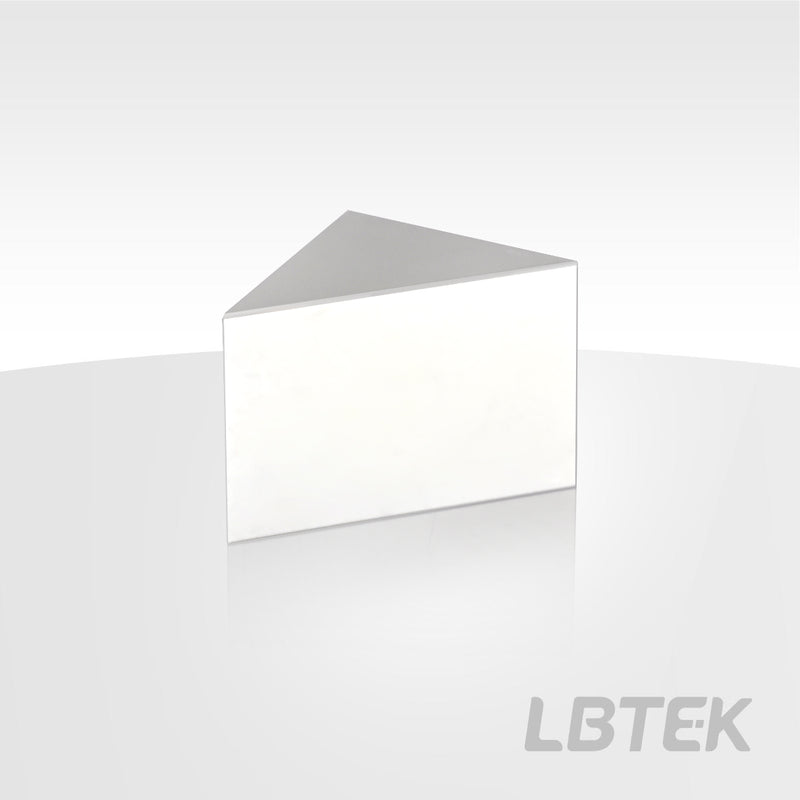

Right-angle prism mirror, bevel coated, N-BK7, UV-enhanced aluminum coating: 250 nm-600 nm RAP112-UVAL
RAP112-UVAL$97.25
In Stock
Key Specifications
Wavelength
250.0nm
Reflectance
90.0%
Design Tools
Gaussian Beam Calculator
Model beam propagation through your optical system
LIDT Calculator
Verify damage threshold for your laser parameters
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
Right-angle prism mirror, bevel coated, N-BK7, UV-enhanced aluminum coating: 250 nm-600 nm — Model RAP112-UVAL
Operating wavelength 250 nm-600 nm, substrate N-BK7.
Product Description
- Application: Deflecting light path
- UV-enhanced aluminum coating, bevel coating
- Working wavelength range: 250 nm-600 nm
- Optical material: N-BK7
LBTEK right-angle prism mirrors with beveled coating use N-BK7 substrates, with a metal reflective coating (UV-enhanced aluminum coating with silicon dioxide protection) applied to the hypotenuse. This reflective coating offers high reflectivity (Ravg > 90%) within the wavelength range of 250 nm to 600 nm. These mirrors are easy to install and enable efficient and stable beam deflection. Currently, LBTEK offers right-angle prism mirrors in five sizes, including: L = 5 mm / 10.0 mm / 12.5 mm / 20.0 mm / 25.0 mm. LBTEK also provides customization services for right-angle prism mirrors with other materials and coating types. For customization needs, please contact LBTEK technical support.
Right-angle prism mirror, bevel coated, N-BK7, UV-enhanced aluminum coating: 250 nm-600 nm
- Tilted Coating
- Optical Material: N-BK7
- UV Enhanced Aluminum Coating: 250 nm-600 nm
- Reflectivity: Ravg > 90%
LBTEK right-angle prism mirrors are made of N-BK7 substrate, with the hypotenuse coated with a metal reflective film (UV-enhanced aluminum coating with silicon dioxide protection). This reflective film offers high reflectivity (Ravg > 90%) within the wavelength range of 250 nm to 600 nm. In addition to the hypotenuse coating, LBTEK also provides right-angle prism mirrors with coatings on the right-angle faces. Both types can be mounted in prism mounts. Currently, LBTEK offers right-angle prism mirrors in five sizes: L = 5 mm / 10.0 mm / 12.5 mm / 20.0 mm / 25.0 mm. LBTEK also provides customization services for right-angle prism mirrors with other materials and coating types. For customization needs, please contact LBTEK technical support.
| Clear Aperture | 70% L x W |
| Operating Wavelength | 250 nm-600 nm |
| Reflectance | Ravg>90% |
| Substrate Material | 12.5 mm×12.5 mm×12.5 mm |
No documents available for this product.
No CAD drawings available for this product.
