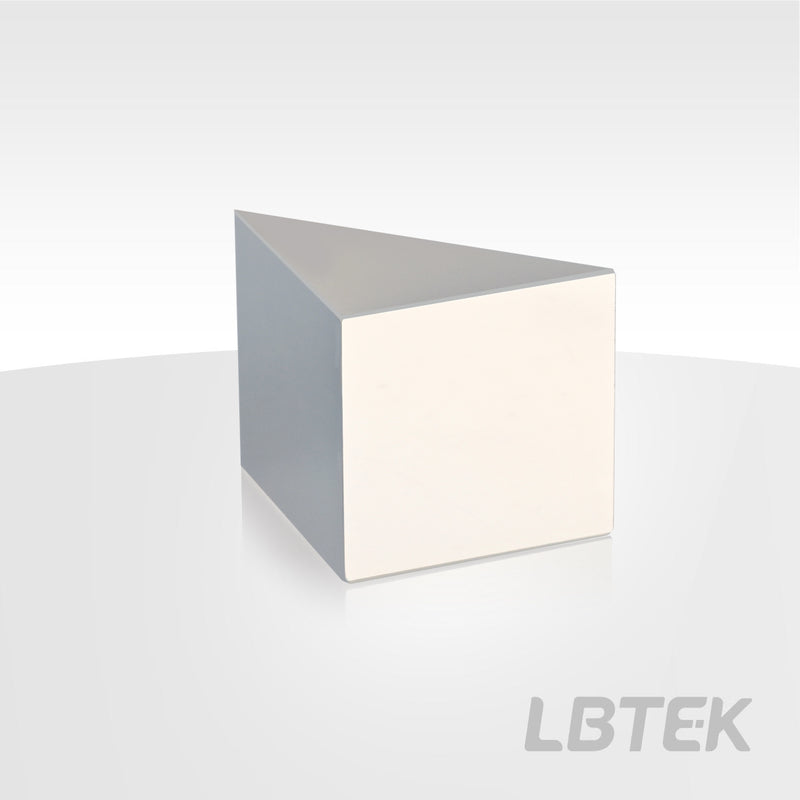

Right-angle prism mirror, right-angle face coated, N-BK7, silver coating: 450 nm-20.0 μm RAP105-RA-AG

Right-angle prism mirror, right-angle face coated, N-BK7, silver coating: 450 nm-20.0 μm — Model RAP105-RA-AG

Operating wavelength 450 nm-20.0 μm, substrate N-BK7.

Product Description

• Application: Deflecting light path
• Silver coating, right-angle face coated
• Operating wavelength: 450 nm-20.0 μm
• Optical material: N-BK7

LBTEK's right-angle prism mirrors with right-angle face coating use N-BK7 substrates, with the right-angle face coated with a metallic reflective coating (silver coating, protected by silicon dioxide). This reflective coating offers high reflectivity (Ravg > 96%) within the wavelength range of 450 nm to 20 μm. Right-angle prism mirrors with right-angle face coating are typically used in conjunction with right-angle prisms of the same size to extend the optical path of a system. Currently, LBTEK offers right-angle prism mirrors in five sizes, including: L = 5 mm / 10.0 mm / 12.5 mm / 20.0 mm / 25.0 mm. LBTEK also provides custom services for right-angle prism mirrors with other materials and coating types. For customization needs, please contact LBTEK technical support.

Right-angle prism mirror, right-angle face coated, N-BK7, silver coating: 450 nm-20.0 μm

• Right Angle Coating
• Optical Material: N-BK7
• Silver Coating: 450 nm-20.0 μm
• Reflectance: Ravg>96%

LBTEK right-angle prism mirrors utilize an N-BK7 substrate, with the right-angle faces coated with a metallic reflective coating (silver coating, with silicon dioxide protection). This reflective coating offers high reflectivity (Ravg > 96%) within the wavelength range of 450 nm to 20 μm. In addition to the right-angle face coating, LBTEK also provides right-angle prism mirrors with coated hypotenuse faces. Both types can be mounted in prism mounts. Currently, LBTEK offers right-angle prism mirrors in five sizes, including: L = 5 mm / 10.0 mm / 12.5 mm / 20.0 mm / 25.0 mm. LBTEK also provides customization services for right-angle prism mirrors with other materials and coating types. For customization needs, please contact LBTEK technical support.
