Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP125-A

Name: Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP125-A
Brand: WaveQuanta
SKU: RAP125-A
Price: 208.26 SGD
Availability: InStock

RAP125-A

$208.26

In Stock

Key Specifications

Wavelength 400.0nm

Reflectance 99.0%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

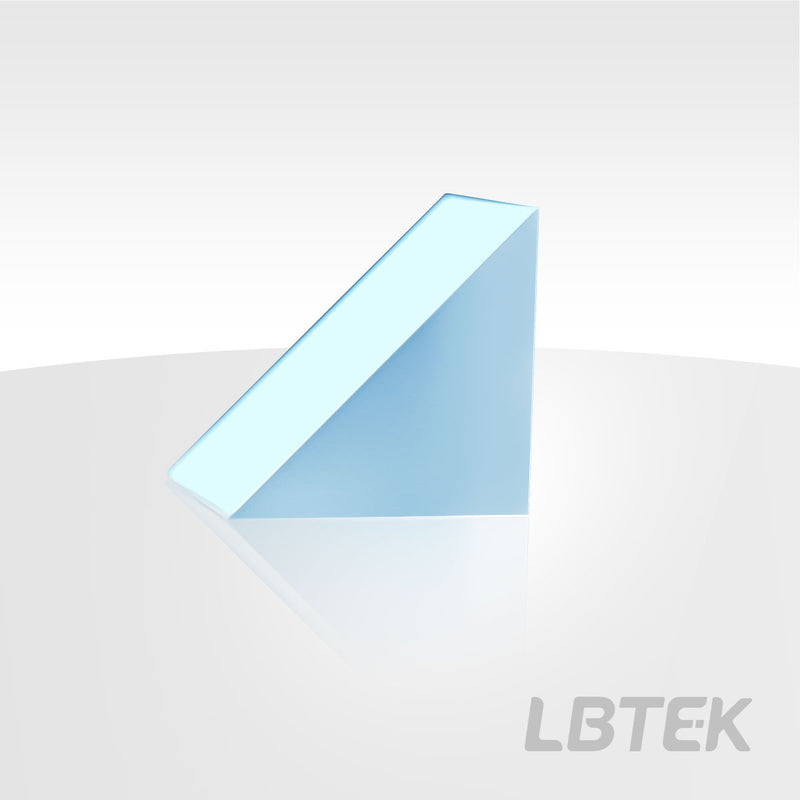

Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms — Model RAP125-A

Operating wavelength 400 nm-750 nm, substrate N-BK7.

Product Description

Purpose: Deflecting light path
Broadband dielectric coating, Hypotenuse-coated
Working wavelength: 400 nm-750 nm, 750 nm-1100 nm
Optical material: N-BK7

Mirrors are used to redirect light beams. LBTEK's N-BK7 broadband dielectric reflective coating boasts a reflectivity exceeding 99% across the operating wavelength range. LBTEK offers right-angle prism dielectric mirrors in various sizes. LBTEK also offers custom mirrors made of other materials and coatings. For custom requirements, please contact our technical support team.

Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms

Hypotenuse-Coated
Application: Beam deflection
Optical material: N-BK7

A mirror is used to change the direction of the light beam. LBTEK's broadband dielectric reflective coating achieves a reflectivity of over 99% within the working wavelength range. LBTEK offers various sizes of right-angle prism dielectric mirrors. Additionally, LBTEK provides customized services for mirrors with other materials and coatings. For customization needs, please contact our technical support.

Clear Aperture	70% L x W
Operating Wavelength	400 nm-750 nm
Reflectance	Ravg>99%a(45°AOI)
Substrate Material	25.0 mm×25.0 mm×25.0 mm

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

Curve - 400 nm-750 nm Broadband Dielectric Coating (45°AOI)

Product Family: Right-Angle Prism Mirrors, Hypotenuse-Coated, N-BK7, Broadband Dielectric Coating (10 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP110-A	`RAP110-A`	70% L x W	70% L x W	400 nm-750 nm	View
Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP125-A Current	`RAP125-A`	70% L x W	70% L x W	400 nm-750 nm
Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP105-B	`RAP105-B`	70% L x W	70% L x W	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP110-B	`RAP110-B`	70% L x W	70% L x W	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP105-A	`RAP105-A`	70% L x W	70% L x W	400 nm-750 nm	View
Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP112-A	`RAP112-A`	70% L x W	70% L x W	400 nm-750 nm	View
Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP112-B	`RAP112-B`	70% L x W	70% L x W	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP120-A	`RAP120-A`	70% L x W	70% L x W	400 nm-750 nm	View
Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP120-B	`RAP120-B`	70% L x W	70% L x W	750 nm-1100 nm	View
Broadband Dielectric Mirrors, Hypotenuse-Coated, Right-Angle Prisms RAP125-B	`RAP125-B`	70% L x W	70% L x W	750 nm-1100 nm	View
