Broadband Dielectric Mirrors, Leg-Coated, Right-Angle Prisms — Model RAP125-RA-A

Operating wavelength 400 nm-750 nm, substrate N-BK7.

Product Description

Purpose: Optical path extension
Broadband dielectric coating, Leg-coated
Operating wavelength: 400 nm-750 nm, 750 nm-1100 nm
Optical material: N-BK7

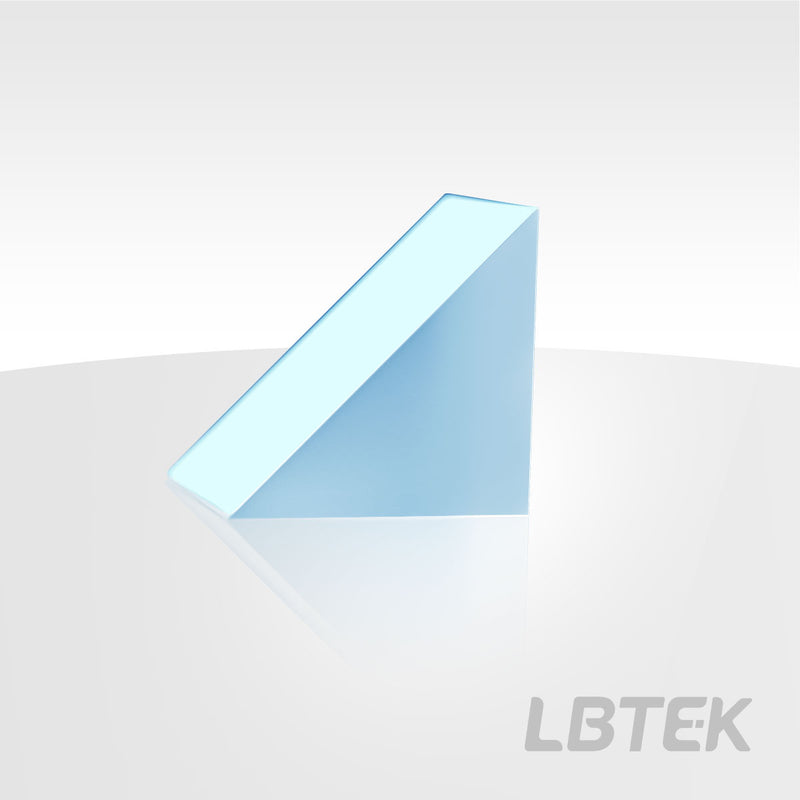

LBTEK's Leg-coated right-angle prism mirrors feature a broadband dielectric reflective coating coatings on the two legs of an N-BK7 right-angle prism. This coating boasts a reflectivity exceeding 99% across the operating wavelength range. When used with a right-angle prism of the same size, leg-coated right-angle prism mirrors can extend the optical path length of a system. LBTEK offers right-angle prism dielectric coated mirrors in a variety of sizes. LBTEK also offers custom mirrors with other materials and coatings. For custom requirements, please contact LBTEK technical support.

Broadband Dielectric Mirrors, Leg-Coated, Right-Angle Prisms

Leg-coated
Application: Beam deflection
Optical material: N-BK7

A mirror is used to change the direction of the light beam. LBTEK's broadband dielectric reflective coating achieves a reflectivity of over 99% within the working wavelength range. LBTEK offers various sizes of right-angle prism dielectric mirrors. Additionally, LBTEK provides customized services for mirrors with other materials and coatings. For customization needs, please contact our technical support.

Clear Aperture	70% L×W
Operating Wavelength	400 nm-750 nm
Reflectance	Ravg>99%a(45°AOI)
Substrate Material	25.0 mm×25.0 mm×25.0 mm

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

Curve - 400 nm-750 nm Broadband Dielectric Coating (45°AOI)

Product Family: Right-Angle Prism Mirrors, Leg-Coated, N-BK7, Broadband Dielectric Coating (10 variants)
