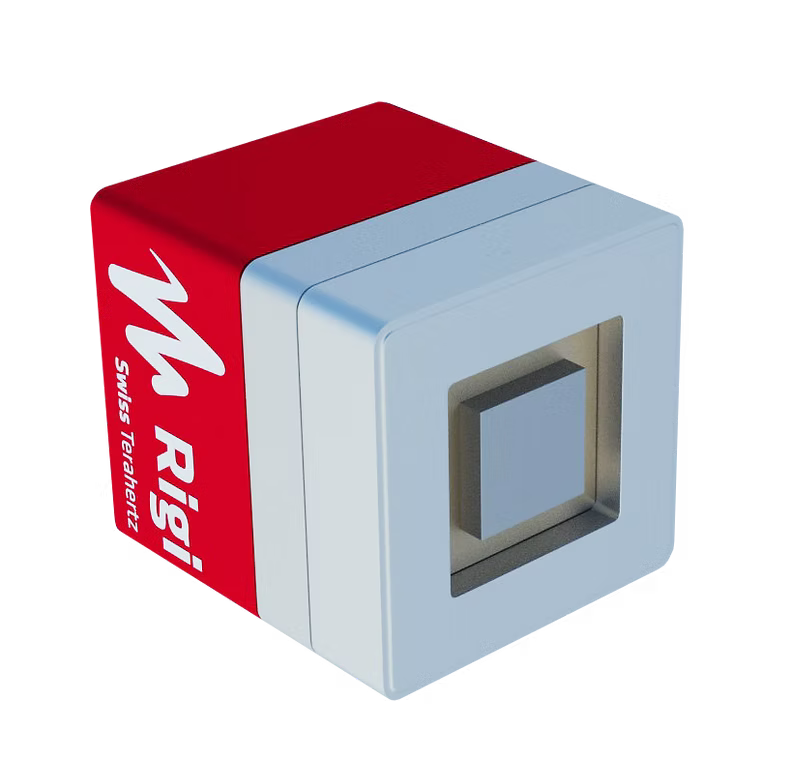

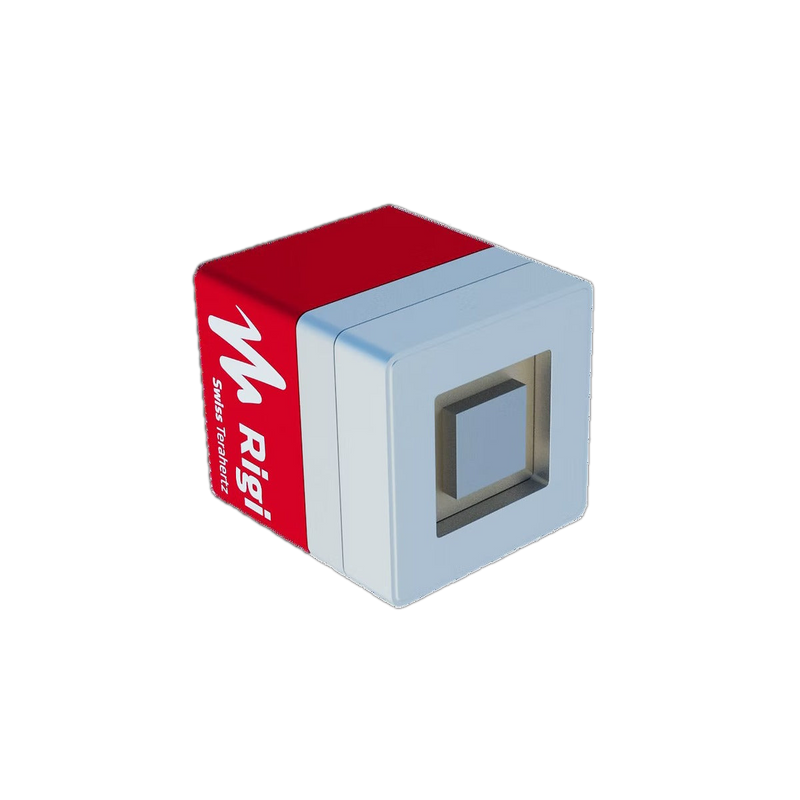

RIGI S2X THz Camera
Real-time Uncooled Terahertz Imaging Camera
Overview
The RIGI S2X is a real-time, USB-powered terahertz camera based on uncooled FPA micro-bolometer array technology. Equipped with an IR-blocking THz filter, it provides high-sensitivity imaging across the terahertz spectrum from below 1 THz to 18 THz.
Compared to market alternatives, RIGI cameras are distinguished by much higher dynamic range and much lower thermal drift.
Note: The S2X offers significantly higher low-frequency sensitivity compared to the S2 model.
Key Features
- Uncooled FPA micro-bolometer — no cryogenic cooling required
- USB-powered with USB 3.0 digital output
- IR-blocking THz filter equipped (by QMC Inc, UK)
- Real-time imaging at 10/30/60 Hz frame rates
- Ultra-compact design
- Much higher dynamic range than market alternatives
- Much lower thermal drift than market alternatives
Applications
- THz beam profiling and focusing
- Non-destructive testing (NDT)
- Industrial process control
- Compatibility with TDS spectrometers, QCL sources, PCA sources
- Scientific research in terahertz spectroscopy and imaging
| Model | RIGI S2X |
| Detector | Uncooled FPA microbolometer array |
| Array format | 160 x 120 pixels |
| Pixel pitch | 25 um |
| Spectral range | below 1 THz to 18 THz |
| Frame rate | 10 / 30 / 60 Hz selectable |
| Digital output | USB 3.0, USB powered |
| Filter | IR-blocking THz filter fitted |
| Window | Silicon |
| Detector packaging | Vacuum sealed |
| Low-frequency sensitivity | approx. 5x that of the S2 chip under a standard reference source |
| Saturation count | approx. 16 k (up to 20% above is still usable) |
| Housing dimensions | 28 x 28 mm, thickness 31.5 +/- 0.3 mm |
| FPA position | Centred in the housing |
| Cooling | None required, room-temperature operation |
