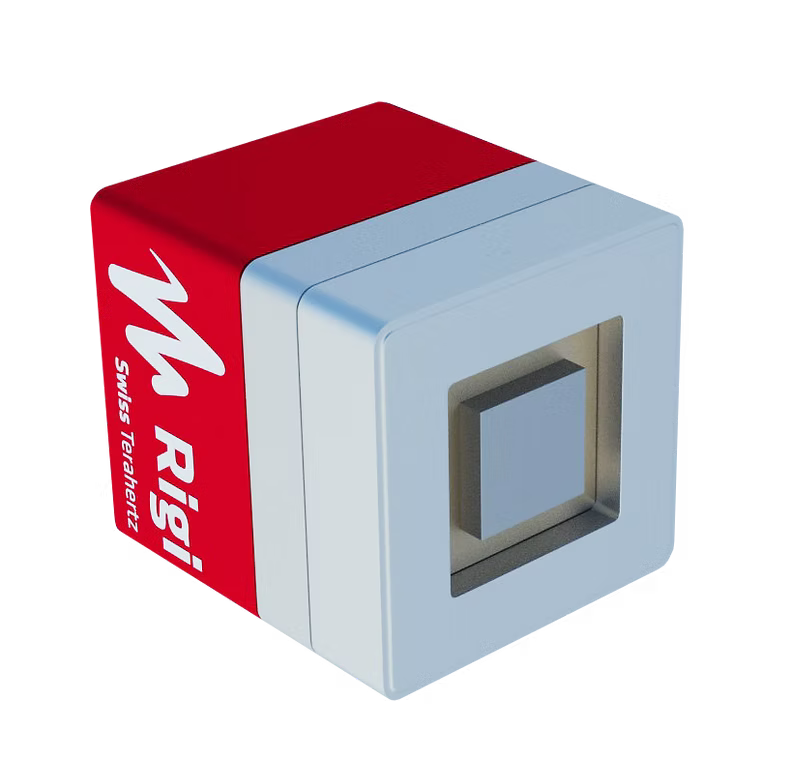

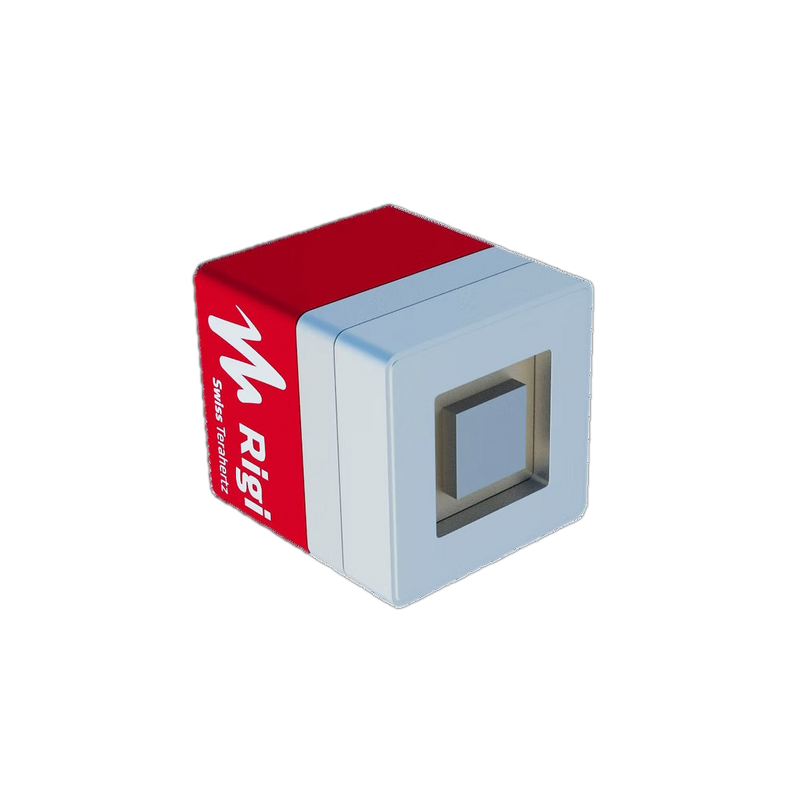

RIGI XL4 Standard THz Camera
Real-time Uncooled Terahertz Imaging Camera
Overview
The RIGI XL4 Standard is a real-time, USB-powered Megapixel-class terahertz camera based on uncooled FPA micro-bolometer array technology. Equipped with an IR-blocking THz filter, it provides high-sensitivity imaging across the terahertz spectrum from below 1 THz to 18 THz.
Compared to market alternatives, RIGI cameras are distinguished by much higher dynamic range and much lower thermal drift.
Key Features
- Uncooled FPA micro-bolometer — no cryogenic cooling required
- USB-powered with USB 3.0 digital output
- IR-blocking THz filter equipped (by QMC Inc, UK)
- Real-time imaging at 10/30/60 Hz frame rates
- Ultra-compact design
- Much higher dynamic range than market alternatives
- Much lower thermal drift than market alternatives
Applications
- THz beam profiling and focusing
- Non-destructive testing (NDT)
- Industrial process control
- Compatibility with TDS spectrometers, QCL sources, PCA sources
- Scientific research in terahertz spectroscopy and imaging
| Frame Rate | 10 Hz, 30 Hz, 60 Hz |
| Configuration | Standard |
| Detector Type | Uncooled FPA micro-bolometer array |
| Array Size | Megapixel class |
| NEP per Pixel | < 1.5 pW/\u221aHz at 4.6 THz |
| Sensitivity Range | < 1 THz to 18 THz |
| Frame Rate | 10 Hz, 30 Hz, 60 Hz |
| Power Supply | USB-powered |
| Signal Output | Digital: USB 3.0 |
| THz Filter | IR-blocking THz filter (by QMC Inc, UK) |
| Filter Cut-off Frequencies | 1, 2, 3, 6, 9, 18 THz |
| Filter Transmission | Average > 80%, Out-of-band < 0.1% |
No CAD drawings available for this product.
