Rochon Crystal Polarizing Prisms RCP10
RCP10$1,510.27
In Stock
Key Specifications
Wavelength
200.0nm
Design Tools
SHG Phase Matching
Calculate phase matching angles and efficiency
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH

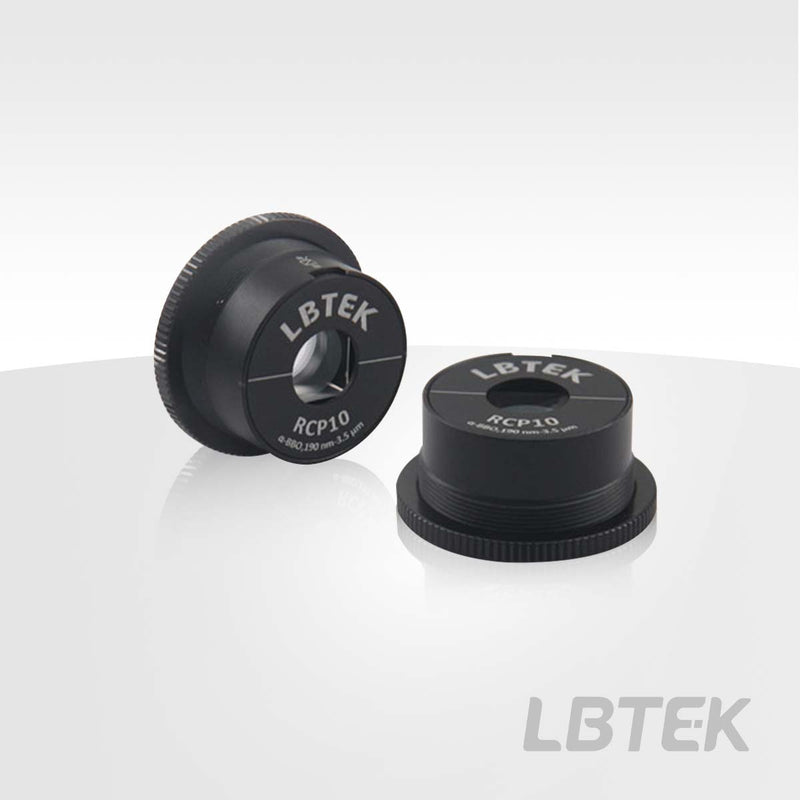

Rochon Crystal Polarizing Prism — Model RCP10
Rochon polarizing prism, Laser-grade α-BBO, operating wavelength 200 nm-3.5 μm, clear aperture Ø10 mm, extinction ratio 100000:1.
Overview
LBTEK Rochon Crystal Polarizing Prisms separate light into a polarized beam (passing straight through) and a deflected polarized beam. Made from laser-grade α-BBO, operating wavelength 200 nm-3.5 μm. Beam deflection: 8° REF @1064 nm. Mounted in a Ø16 mm rotation mirror mount.
Key Features
- Extinction ratio: 100000:1
- Operating wavelength: 200 nm-3.5 μm
- Material: Laser-grade α-BBO
- Structure: Optical contact
- Beam deviation: <10 arcsec
- Beam deflection: 8° REF@1064 nm
- Optional AR coating: P coating@1064 nm
Applications
- Laser polarization control and beam separation
- High-power laser systems requiring stable extinction ratio
- Polarimetry and ellipsometry
- Optical isolation and Faraday rotator combinations
- Imaging and spectroscopy with polarization discrimination
| Optical component material | Laser-grade α-BBO |
| Structural design | Optical contact |
| Clear Aperture | Ø10 mm |
| Beam Deviation | <10 arcsec |
| Beam deflection | 8° REF@1064 nm |
| Transmitted Wavefront Error (premium) | λ/8 (emergent/incident surface), Ø8.5 mm |
| Operating Wavelength | 200 nm-3.5 μm |
| Extinction ratio | 100000:1 |
| Optional AR coating | P coating@1064 nm |
| Housing Diameter | Ø25.4 mm +0.0/-0.2 mm |
| Length | 16.0 mm ±0.1 mm |
| Surface finish (scratches/pits) | 20/10 (emergent/incident surface) |
| Housing thread | SM1 external thread |
| Transmitted Wavefront Error (TWE) | <λ/4, Ø8.5 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Rochon Crystal Polarizing Prisms (1 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Rochon Crystal Polarizing Prisms RCP10 Current |
RCP10
| Ø25.4 mm +0.0/-0.2 mm | Ø10 mm | 200 nm-3.5 μm |
