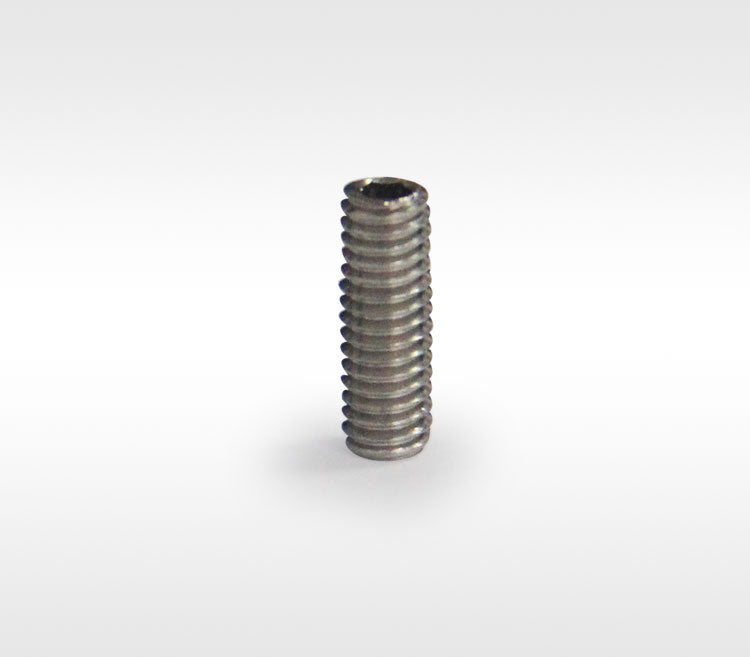

Set screws and thumb screws — Model SSDH-M4
✔ In Stock — Ships Today
The SSDH series double-ended socket set screws from LBTEK are available in three specifications: M3×5.5 mm, M4×11.5 mm, and M6×15.5 mm, each featuring double-ended socket screws on both ends. Packaged 50 units per box with included the hex key, these screws can be extracted from post ends using the provided tools. Note: The reduced engagement depth (0.5 mm shorter than standard cup-point set screws) ensures compatibility with M3×6 mm, M4×12 mm, and M6×16 mm cup-point screws while maintaining interchangeability.
Key Features
- Three specifications: M3×5.5, M4×11.5, M6×15.5;
- 304 stainless steel material;
- 50 pieces per box, includes a hex key;
- Hex holes on both ends;
Application
It is commonly used for connecting Ø12.7 mm optical posts without base to lens mount supports.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
