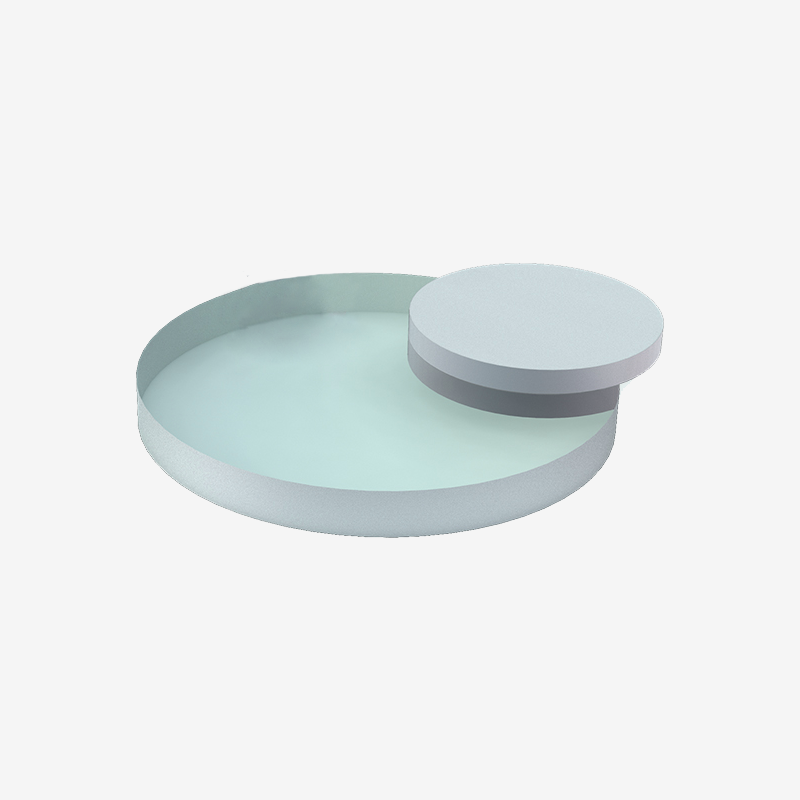

SF11 Substrate, Ø20.0 × 5.0 mm, AR@615-1100nm
O-OG-20.0-5.0-BL493Contact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Overview
The SF11 substrate is made from high-refractive-index dense flint glass, offering a high refractive index and strong dispersion characteristics, making it suitable for precision optical applications spanning the visible to near-infrared range. This material is commonly used in optical filters, beamsplitters, prisms, and high-refractive-index optical systems, where it effectively enables optical path folding and spectral control. The SF11 substrate offers stable machinability, achieving high surface quality and figure accuracy, making it well suited to research and industrial applications that demand high optical performance and consistency.
Handling & Storage
For optimal performance, store and use the substrate in an environment at 25 °C with 40%–60% relative humidity. If the surface becomes contaminated, gently clean it with ≥99% alcohol and lint-free lens tissue. Never use coarse cloth, water, or cleaners containing abrasive particles, as these may damage the coating.
| Substrate Material | SF11 |
| Dimensions | 20.0 × 5.0 mm |
| Wedge Angle | 0.5° |
| Wavelength Range | 615.0 – 1100.0 nm |
| Angle of Incidence | 0.0° |
| Clear Aperture | > 17.0 mm |
| Surface Quality | 20-10 S-D per CA |
| Surface Flatness | λ/4 @ 633 nm |
| Coating Type | Dielectric Coating |
| Coating Specification | AR@615-1100nm, R<0.3%@970-1070nm, R<0.7%@630-1100nm |
No documents available for this product.
No CAD drawings available for this product.
Product Family: Optical Substrates (7 variants)
| Product | SKU | Dimensions | Substrate | Wavelength | |
|---|---|---|---|---|---|
| JGS3 Substrate, Ø25.4 × 3.0 mm |
O-OG-25.4-3.0-BL499
| 25.4 × 3.0 mm | JGS3 | — | Contact |
| UVFS Substrate, Ø50.8 × 9.0 mm |
O-OG-50.8-9.0-BL498
| 50.8 × 9.0 mm | UVFS | — | Contact |
| UVFS Substrate Plate, 15.0 × 15.0 × 0.5 mm |
O-OG-15.0x15.0-0.5-BL497
| 15.0 × 15.0 × 0.5 mm | UVFS | — | Contact |
| UVFS Substrate Plate, 15.0 × 15.0 × 2.0 mm |
O-OG-15.0x15.0-2.0-BL496
| 15.0 × 15.0 × 2.0 mm | UVFS | — | Contact |
| UVFS Substrate Plate, 15.0 × 15.0 × 1.0 mm |
O-OG-15.0x15.0-1.0-BL495
| 15.0 × 15.0 × 1.0 mm | UVFS | — | Contact |
| SF11 Substrate Block, 5.0 × 5.0 × 19.0 mm |
O-OG-5.0x5.0-19.0-BL494
| 5.0 × 5.0 × 19.0 mm | SF11 | — | Contact |
| SF11 Substrate, Ø20.0 × 5.0 mm, AR@615-1100nm Current |
O-OG-20.0-5.0-BL493
| 20.0 × 5.0 mm | SF11 | 615.0–1100.0 nm |
