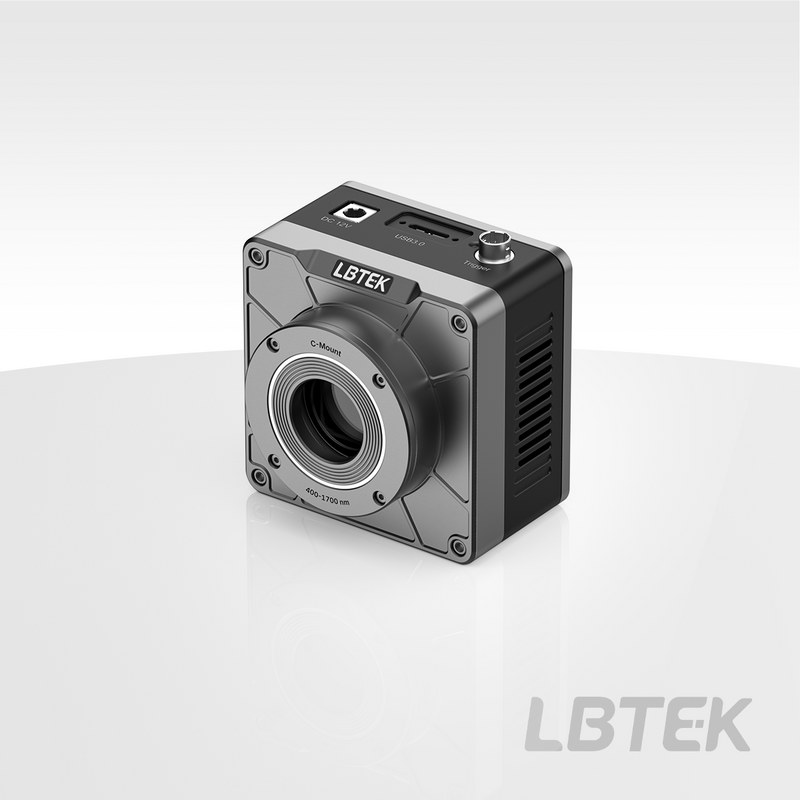

Shortwave Infrared Camera — Model SWIR-500A1-U

5 MP InGaAs SWIR camera with USB3.0 interface; 400-1700 nm spectral response, 3.45 μm×3.45 μm pixel size.

Overview

LBTEK's SWIR series short-wave infrared cameras are equipped with either SONY sensors or domestically produced InGaAs large-pixel sensors.

They feature an ultra-wide spectral response range of 400 nm-1700 nm and 900 nm-1700 nm, with characteristics such as high resolution, high quantum efficiency, and high sensitivity.

These cameras are widely applicable in fields such as astronomical observation, material analysis, biological imaging, medical and life sciences, and industrial inspection.

Key Features

  • 400-1700 nm / 900-1700 nm wide spectral response range
  • Pixel coverage 330,000 to 5 million
  • Multiple data interfaces: USB3.0/10GigE/GigE/CameraLink

Applications

  • Astronomical observation
  • Material analysis
  • Biological imaging
  • Medical and life sciences
  • Industrial inspection
Sensor TypeInGaAs
Spectral range400-1700 nm
Pixel size3.45 μm×3.45 μm
Effective pixels5 MP
Sensor size1/1.4''
Frame Rate & Resolution8 Bit:; 61fps@2576×2050, 135fps @1288×1026; 12 Bit:; 35fps @ 2576×2050, 135fps @1288×1026
Shutter TypeGlobal Shutter
colorBlack and white
Bit Depth8 bit / 12 bit
Data Transfer InterfaceUSB3.0
Gain adjustment range1×-15×
Exposure time15 µs-60 sec
Optical InterfaceC-Mount
Signal-to-noise ratio46.1 dB (High Gain Mode); 48.4 dB (Low Gain Mode)
Dynamic Range51.3 dB (High Gain Mode); 51.4 dB (Low Gain Mode)
Conversion gain10.3e/ADU (High Gain Mode); 17.29e/ADU (Low Gain Mode)
Readout noise111.8e (High Gain Mode); 186.6e (Low Gain Mode)
Full Well Capacity41.3ke (High Gain Mode); 69.9ke (Low Gain Mode)
Memory Capacity512 MB
Cooling temperature differenceBelow room temperature 25 °C
Power Supply TypeUSB3 interface power supply / 12V power adapter power supply
CRA2.35 degrees
Operating Temperature-20~60 ℃
Storage Temperature-40~85 ℃
Humidity20%-80%, no condensation
Size80mm×85.2mm×65.7mm
Power consumption<2.1 W (Uncooled) / <25 W (Cooled)
Specification Sheet PDF — Download
User Manual PDF
CAD Drawing Download
3D Model (STL) STL — Download
