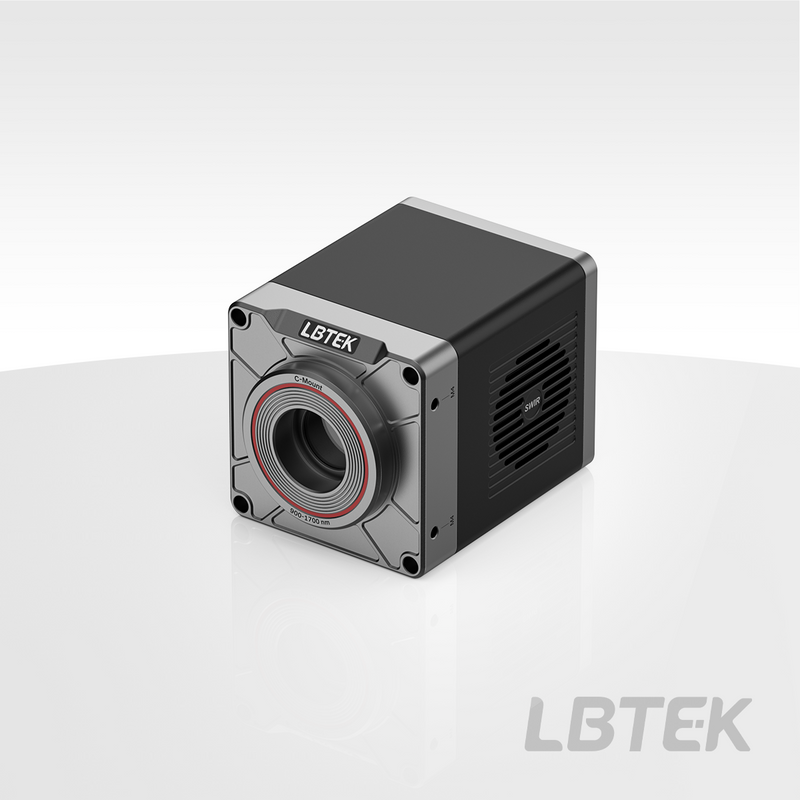

Shortwave Infrared Camera — Model SWIR-33A2-U

0.33 MP InGaAs SWIR camera with USB3.0 interface; 900-1700 nm spectral response, 15.0 µm × 15.0 µm pixel size.

Overview

LBTEK's SWIR series short-wave infrared cameras are equipped with either SONY sensors or domestically produced InGaAs large-pixel sensors.

They feature an ultra-wide spectral response range of 400 nm-1700 nm and 900 nm-1700 nm, with characteristics such as high resolution, high quantum efficiency, and high sensitivity.

These cameras are widely applicable in fields such as astronomical observation, material analysis, biological imaging, medical and life sciences, and industrial inspection.

Key Features

  • 400-1700 nm / 900-1700 nm wide spectral response range
  • Pixel coverage 330,000 to 5 million
  • Multiple data interfaces: USB3.0/10GigE/GigE/CameraLink

Applications

  • Astronomical observation
  • Material analysis
  • Biological imaging
  • Medical and life sciences
  • Industrial inspection
Sensor TypeInGaAs
Spectral range900-1700 nm
Pixel size15.0 µm × 15.0 µm
Effective pixels0.33 MP
Sensor size3/4''
Frame Rate & Resolution8bit:724 fps@640×512; Packet12:724 fps@640x512; 16bit:570 fps@640×512
Shutter TypeGlobal Shutter
colorBlack and white
Bit Depth16 bit
Data Transfer InterfaceUSB3.0
Exposure time16 μs~5 s
Optical InterfaceC-Mount
Signal-to-noise ratio62.9 dB(LG)，49.4 dB(MG)，42.3 dB(HG)
Dynamic Range70.5 dB(LG)，67.9 dB(MG)，47.9 dB(HG)
Conversion gain138.6e-/ADU(LG)，5.54e-/ADU(MG)，1.2e-/ADU (HG)
Readout noise586.8e(LG)，35.0e(MG)，68.4e(HG)
Full Well Capacity1986426.7e(LG)，87649.8Ke(MG)，17147.3e(HG)
Memory Capacity512 MB
Cooling temperature differenceBelow room temperature 40 °C
Power Supply Type12V power adapter powered
Operating Temperature-30~60 ℃
Storage Temperature-40~85 ℃
Humidity20%-80%, no condensation
Size68mm×68mm×96.5mm
Quantum efficiency75%@1350 nm
Dark current30fa@0.1V&18℃
Specification Sheet PDF — Download
User Manual PDF
CAD Drawing Download
3D Model (STL) STL — Download
