SM1 Lens Tube — Model SM1-50C
✔ In Stock — Ships Today

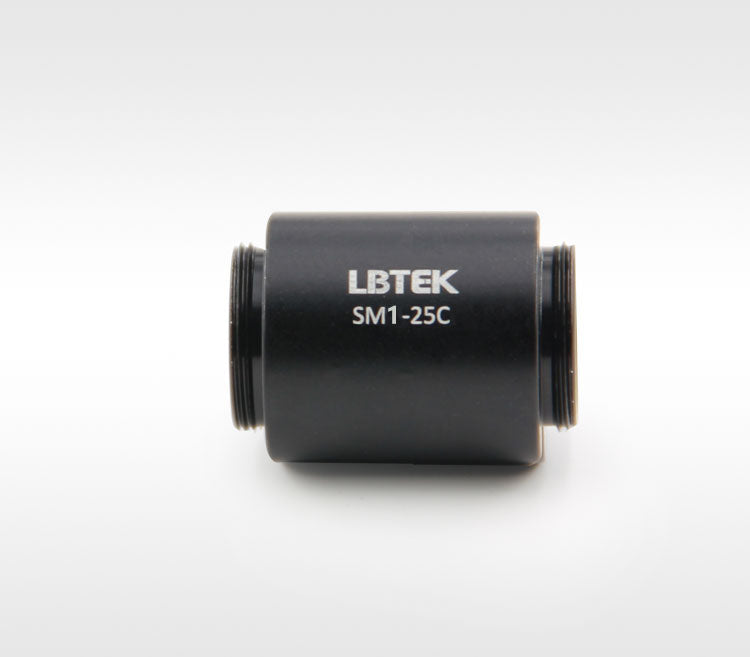

The LBTEK external threaded lens sleeve has SM1 external threads on both ends, which can be used in conjunction with internal-external threaded and internal threaded lens sleeves to extend the length of the lens sleeve.
Key Features
- SM1 external threads on both ends
- Extends lens tube length by mating with internal-external threads and internal thread sleeves
- Not for direct mounting of optical elements
Application
Both ends SM1 external thread
| Size | 50 mm |
| Clear Aperture | Ø23.5 mm |
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Compatibility | SM1 |
| Rod mounting threaded hole | None |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
