SM30 Lens Sleeve SM30-12.5A
SM30-12.5A$42.39
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
SM30 Lens Sleeve — Model SM30-12.5A
✔ In Stock — Ships Today

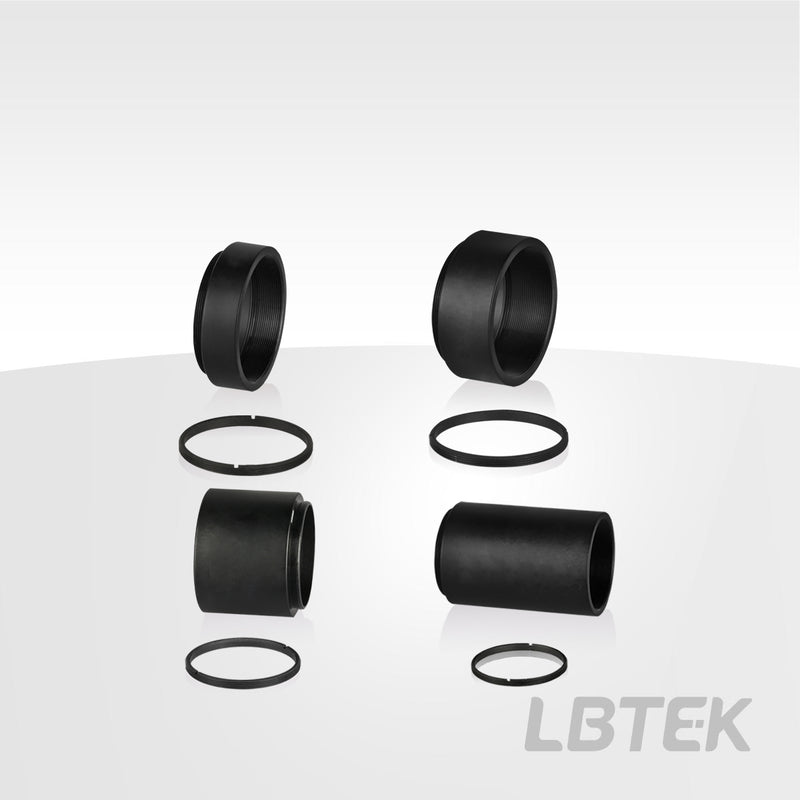

The LBTEK internal and external threaded lens sleeve has one end with SM30 external threads and the other end with SM30 internal threads, primarily used to secure optical components with a diameter of Ø30 mm. It features a stackable design, suitable for quickly building compact optical systems. Each lens sleeve comes with an SM30R retaining ring for securing the optical component.
Key Features
- One end SM30 external thread, the other end SM30 internal thread
- Expandable design, capable of building multi-component optical systems, includes 1 SM30R retaining ring
- Optional sleeve lengths: 8 mm, 12.5 mm, 25 mm, and 50 mm
Application
One end SM30 external thread, the other end SM30 internal thread
| Clear Aperture | 27.9 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: SM30 Lens Sleeve (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| SM30 Lens Sleeve SM30-50A |
SM30-50A
| — | — | — | View |
| SM30 Lens Sleeve SM30-25A |
SM30-25A
| — | — | — | View |
| SM30 Lens Sleeve SM30-12.5A Current |
SM30-12.5A
| — | — | — | |
| SM30 Lens Sleeve SM30-8A |
SM30-8A
| — | — | — | View |
