SM05 Lens Sleeve SM05-25C
SM05-25C$13.75
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

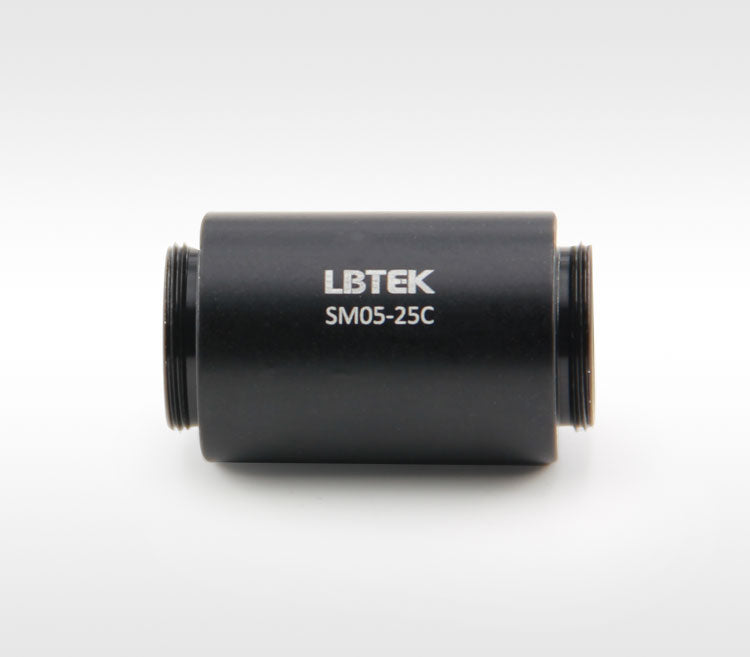

SM05 Lens Sleeve ā Model SM05-25C
ā In Stock ā Ships Today
The LBTEK external threaded lens sleeve has SM05 external threads on both ends, commonly used to extend the length of lens sleeves. It can also be combined with internal-external threaded adapters and internal threaded sleeves to stack multiple lens sleeves.
Key Features
- SM05 external threads on both ends
- Extends lens tube length by mating with internal/external threads and thread adapters
- Not for direct mounting of optical elements
Application
Both ends with SM05 external thread
| Rod mounting threaded hole | None |
| Material | 6061-T6 Aluminum Alloy |
| Applicable optical element diameter | Ć12.7 mm |
| Clear Aperture | Ć11.4 mm |
| Compatibility | SM05 |
| Surface Treatment | Black anodized |
| Internal thread size | 25 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: SM05 Lens Sleeve (14 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| SM05 Lens Sleeve SM05-50D |
SM05-50D
| — | — | — | View |
| SM05 Lens Sleeve SM05-75D |
SM05-75D
| — | — | — | View |
| SM05 Lens Sleeve SM05-25C Current |
SM05-25C
| — | — | — | |
| SM05 Lens Sleeve SM05-25B |
SM05-25B
| — | — | — | View |
| SM05 Lens Sleeve SM05-12.5B |
SM05-12.5B
| — | — | — | View |
| SM05 Lens Sleeve SM05-38B |
SM05-38B
| — | — | — | View |
| SM05 Lens Sleeve SM05-50B |
SM05-50B
| — | — | — | View |
| SM05 Lens Sleeve SM05-75B |
SM05-75B
| — | — | — | View |
| SM05 Lens Sleeve SM05-8A |
SM05-8A
| — | — | — | View |
| SM05 Lens Sleeve SM05-25A |
SM05-25A
| — | — | — | View |
| SM05 Lens Sleeve SM05-12.5A |
SM05-12.5A
| — | — | — | View |
| SM05 Lens Sleeve SM05-38A |
SM05-38A
| — | — | — | View |
| SM05 Lens Sleeve SM05-50A |
SM05-50A
| — | — | — | View |
| SM05 Lens Sleeve SM05-75A |
SM05-75A
| — | — | — | View |
