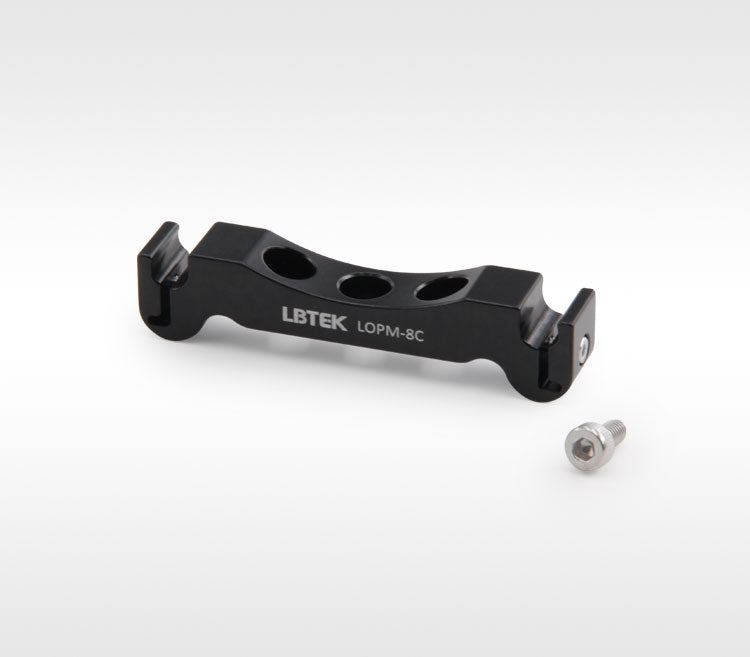

Snap-in 60 mm coaxial system mounting bracket — Model LOPM-8C
✔ In Stock — Ships Today
The LBTEK snap-in 60mm coaxial system mounting bracket is designed to support pre-assembled coaxial systems (subsystems), allowing the coaxial system rod to be snapped into the bracket without disassembling the coaxial system. It features an M2.5 (compatible with 2mm hex wrench) side-mounted hex socket head screw for secure fixation, with a flexible structural design to ensure stable clamping. The center includes an M4 countersunk hole for connecting optical rods.
Key Features
- Material: 6061-T6 Aluminum Alloy
- For ease of disassemble or install
- Compatible with 60 mm coaxial system
Application
Installation with coaxial system
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Snap-in 60 mm coaxial system mounting bracket (1 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Snap-in 60 mm coaxial system mounting bracket LOPM-8C Current |
LOPM-8C
| — | — | — |
