Snap ring SM2R
SM2R$8.18
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

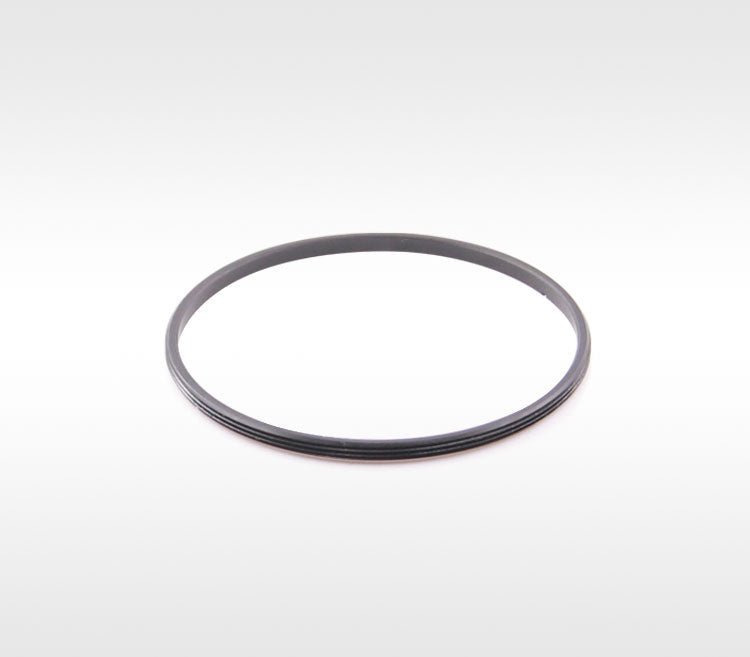

Snap ring — Model SM2R
✔ In Stock — Ships Today
The SM2 retaining ring from LBTEK is manufactured from 6061-T6 aluminum alloy with a black anodized surface finish. The peripheral groove is compatible with OWR-2A retaining ring key for securing Ø50.8 mm optical components. Typically, two retaining rings are used in lens tubes or coaxial mounts, one for positional fixation and the other for firmly clamping the optical component.
Key Features
- Material: 6061-T6 Aluminum Alloy;
- Surface Treatment: Black Anodized;
- Available in packs of 10;
- Secures Ø50.8 mm optical components;
Application
The SM2R retaining ring is used for the fixed lens mount FLF2A.
| Clear Aperture | 48.3 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
