Standard Optical Climbing Components Kits — Model AMM3-1BT1
✔ In Stock — Ships Today

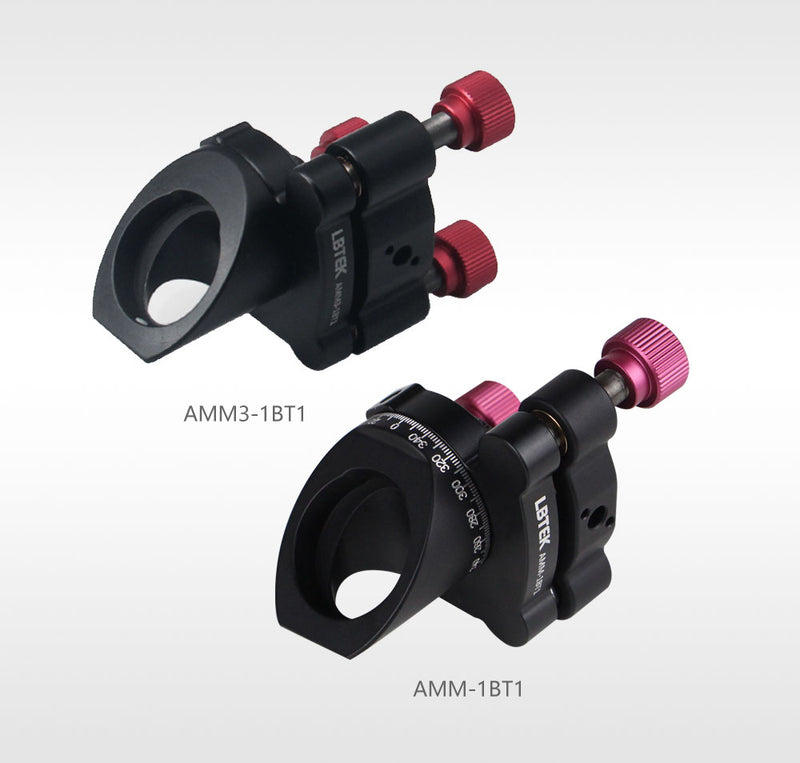

The 45° adjustment mount provides pitch, offset, and rotation control. This mount not only allows for 360° continuous rotation but also enables ±4° pitch and yaw adjustments, with a tuning precision of 0.4° per revolution (the three-axis adjustment mount additionally offers 6.5mm translation adjustment in the Z-direction). This mount can hold optical components with a diameter of 25.4 mm and a minimum thickness of 3 mm.
Key Features
- Suitable for optical components with 25.4 mm diameter and minimum thickness of 3 mm
- 45° mount will not drop during continuous rotation
- Rotation indicator markings with 5° intervals
- Adjustable angle ±4°
- Includes two φ2x6 pins and one M4x10 mounting screw
- Two specifications available: two-axis standard mount / three-axis lockable mount
Application
AMM-1BT1 can be installed with a 25.4 mm reflector
No specifications available for this product.
Product Family: Standard Optical Climbing Components Kits (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Standard Optical Climbing Components Kits SC1 |
SC1
| — | — | — | View |
| Standard Optical Climbing Components Kits AMM-1BT1 |
AMM-1BT1
| — | — | — | View |
| Standard Optical Climbing Components Kits AMM3-1BT1 Current |
AMM3-1BT1
| — | — | — | |
| Standard Optical Climbing Components Kits OBS-205 |
OBS-205
| — | — | — | View |
| Standard Optical Climbing Components Kits OBS-305 |
OBS-305
| — | — | — | View |
| Standard Optical Climbing Components Kits OBS-405 |
OBS-405
| — | — | — | View |
| Standard Optical Climbing Components Kits OBS-505 |
OBS-505
| — | — | — | View |
