Standard Optical Climbing Components Kits — Model OBS-305
✔ In Stock — Ships Today

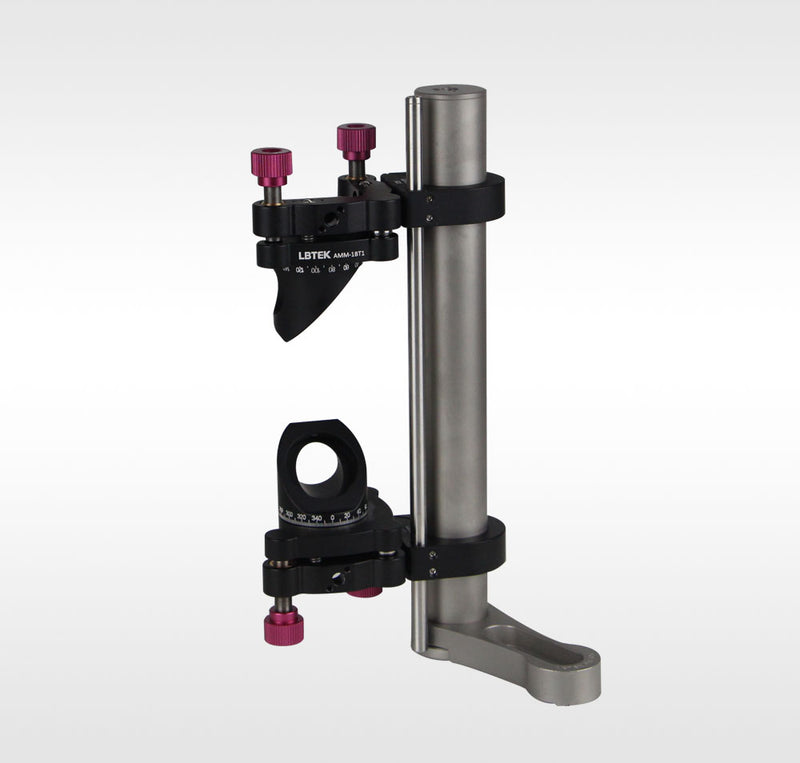

The components include two 45° adjustment mounts, two rod sliders, one fork block, one rod base, one guide rod, and one connecting rod. Note 1: The components do not include mirrors (optics sold separately). Note 2: Except for the fork block, all other parts are pre-assembled before shipment. Note 3: 1. The OBS-305 consists of the following: AMM-1BT1×2, SC1×2, PR-1A×1, PHC-32×1, MOP-300×1, OP1-300B6×1. Customers can purchase accessories separately to assemble a climbing stand. All assembly screws and wrenches are included in the accessories. To assemble the OBS-205, for example, with a Ø25 optical post requiring an M4 top, replace the MOP-300 with MOP-200 and OP1-300B6 with OP1-200B6.
Key Features
- Suitable for optical components with 25.4 mm diameter and minimum thickness of 3mm
- 45° mount will not drop when rotating
- Rotation indicator markings with 5° intervals
- Vertical centering rod and pin-mounted lens holder ensure initial optical axis alignment
- Adjustable optical axis height range available
Application
The OBS-205 can adjust the height of the incident beam by installing a 25.4 mm reflector.
No specifications available for this product.
Product Family: Standard Optical Climbing Components Kits (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Standard Optical Climbing Components Kits SC1 |
SC1
| — | — | — | View |
| Standard Optical Climbing Components Kits AMM-1BT1 |
AMM-1BT1
| — | — | — | View |
| Standard Optical Climbing Components Kits AMM3-1BT1 |
AMM3-1BT1
| — | — | — | View |
| Standard Optical Climbing Components Kits OBS-205 |
OBS-205
| — | — | — | View |
| Standard Optical Climbing Components Kits OBS-305 Current |
OBS-305
| — | — | — | |
| Standard Optical Climbing Components Kits OBS-405 |
OBS-405
| — | — | — | View |
| Standard Optical Climbing Components Kits OBS-505 |
OBS-505
| — | — | — | View |
