Super Reflective Mirrors SPM10-1064

Super Reflective Mirrors — Model SPM10-1064

Ø25.4 mm, substrate UV Fused Silica.

Product Description

• Optical Element Material: UV Fused Silica
• Reflectivity >99.99% (Incident Angle 45°)
• Application: Beam Deflection

The LBTEK supermirror is fabricated by depositing multiple layers of dielectric reflective coatings with alternating high and low refractive indices on a UV-grade fused silica substrate. By increasing the number of coating layers, the reflectivity can be enhanced, enabling the supermirror to achieve a reflectivity exceeding 99.99% at the designed wavelength. It is ideally suited for optical systems requiring extremely high reflectivity. LBTEK offers supermirrors at five standard wavelengths: 532 nm, 632.8 nm, 780 nm, 1064 nm, and 1550 nm. For other customized requirements, please contact LBTEK Technical Support.

Super Reflective Mirrors

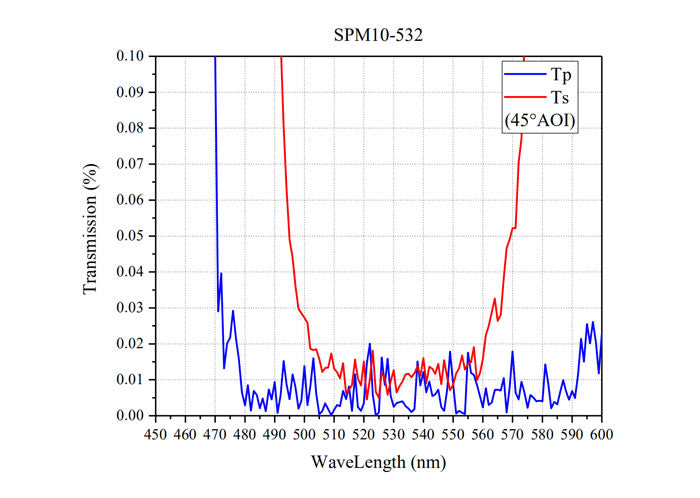

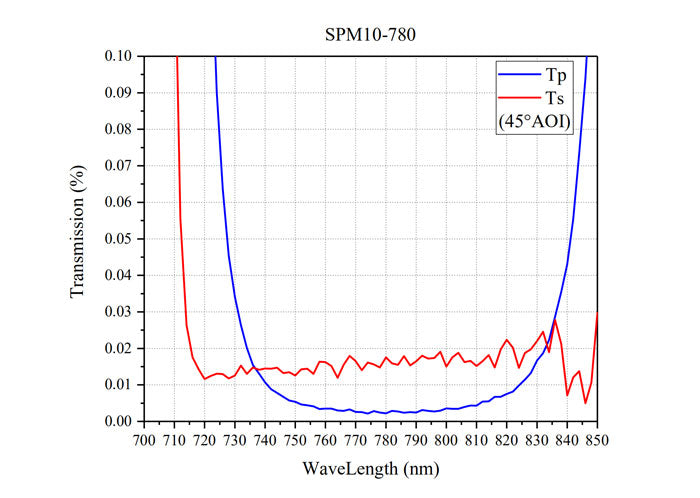

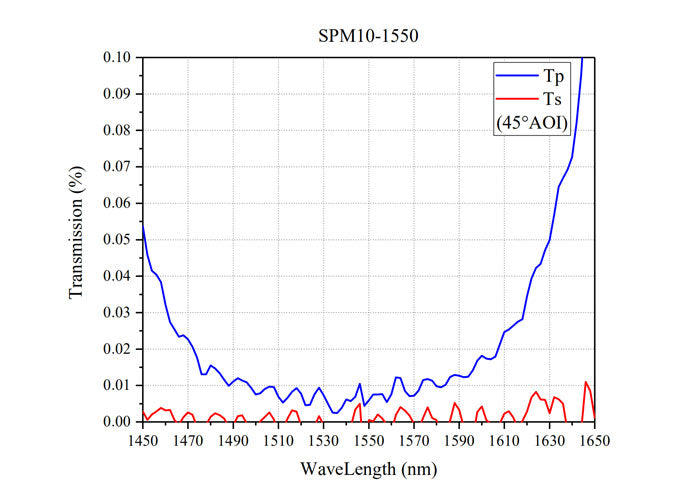

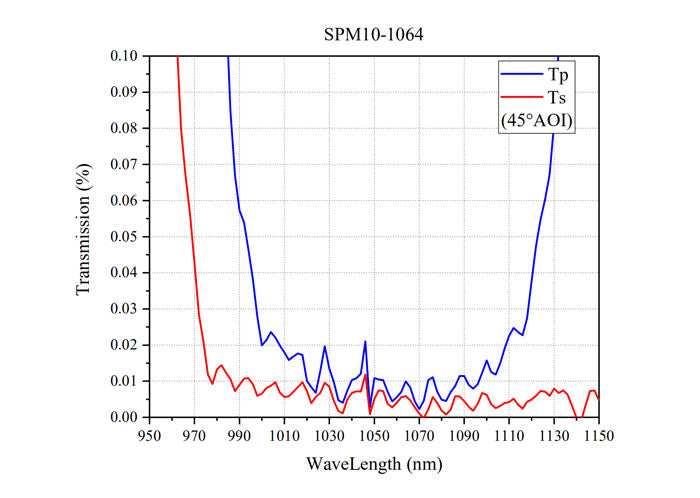

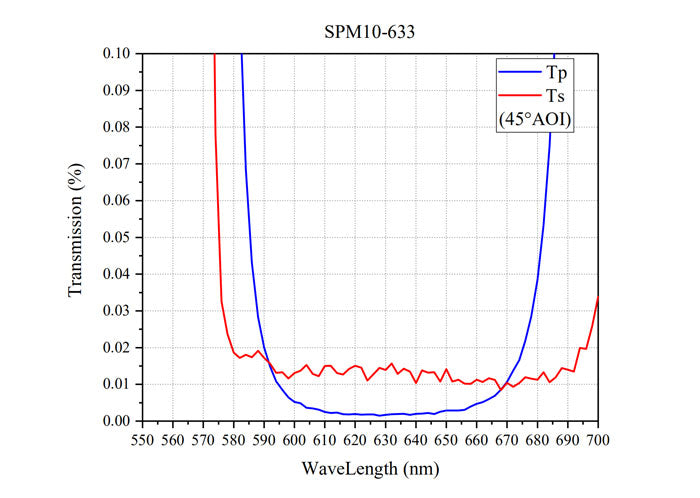

• Design Wavelength: 532 nm, 632.8 nm, 780 nm, 1064 nm, and 1550 nm Optional
• Commonly Used for Light Path Deflection
• Reflectivity >99.99% (incident angle 45°)
