Switch-Type Magnetic Base — Model SMB1
✔ In Stock — Ships Today

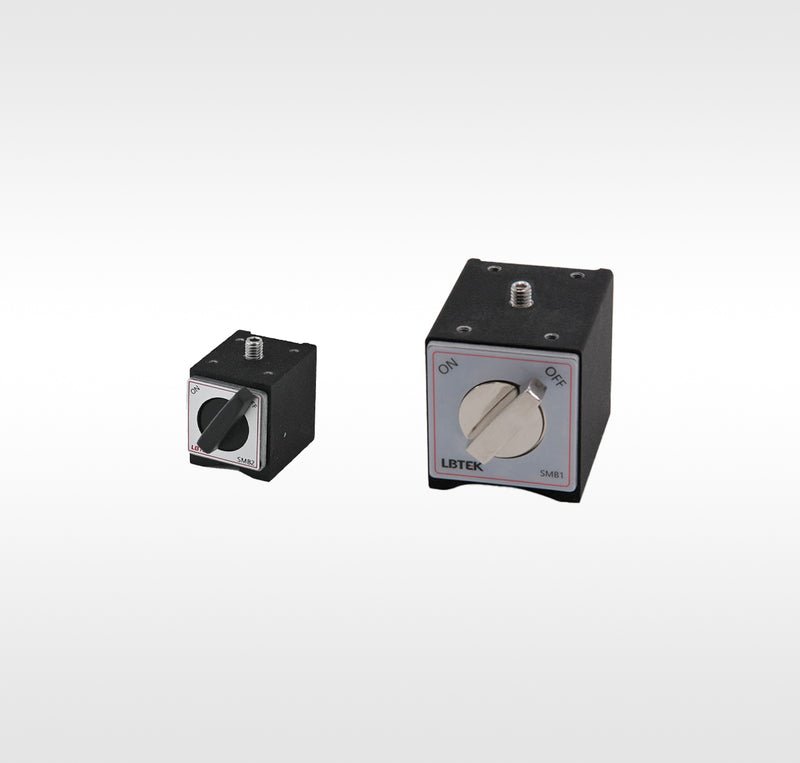

The switch-type magnetic base from LBTEK features a magnetic switch that allows instant activation/deactivation of the magnetic force, enabling direct fixation on stainless steel optical platforms. This facilitates precise positioning during optical path alignment. The base is equipped with a top-mounted M6 stud for securing standard Ø12.7 mm post holders, along with four M4 tapped holes that are compatible with the SMB1-AP adapter plate when used with the SMB1 magnetic base.
Key Features
- Magnetic switch for easy fixing or moving;
- M6 stud, non-removable;
Application
The post holder is mounted on the breadboard through a switch-type magnetic base.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Switch-Type Magnetic Base (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Switch-Type Magnetic Base SMB1-KIT |
SMB1-KIT
| — | — | — | View |
| Switch-Type Magnetic Base SMB1 Current |
SMB1
| — | — | — | |
| Switch-Type Magnetic Base SMB2 |
SMB2
| — | — | — | View |
