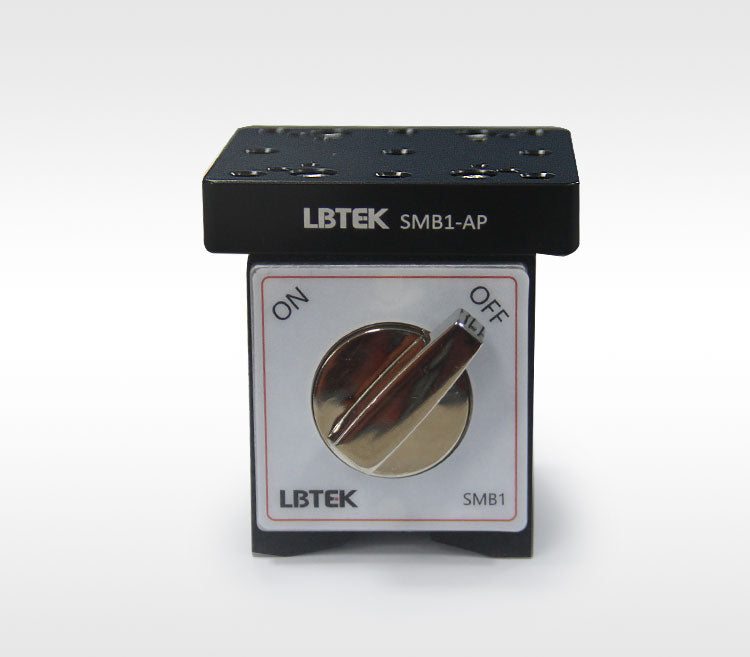

Switch-Type Magnetic Base — Model SMB1-KIT
✔ In Stock — Ships Today
The switch-type heavy load magnetic base set with top plate from LBTEK features 9×M6 and 4×M4 tapped through-holes for flexible integration with other mechanical components, along with 4×M3 tapped holes compatible with 30 mm coaxial systems. The black anodized surface treatment effectively reduces light reflection.
Key Features
- With 6061-T6 aluminum alloy top plate;
- Black anodized;
- 9× M6 tapped through-holes;
- 4× M4 tapped holes, 8 mm screw thread depth;
- 4× M3 tapped holes, 6 mm screw thread depth, compatible with 30 mm coaxial system;
Application
Switch-type magnetic base set application.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Switch-Type Magnetic Base (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Switch-Type Magnetic Base SMB1-KIT Current |
SMB1-KIT
| — | — | — | |
| Switch-Type Magnetic Base SMB1 |
SMB1
| — | — | — | View |
| Switch-Type Magnetic Base SMB2 |
SMB2
| — | — | — | View |
