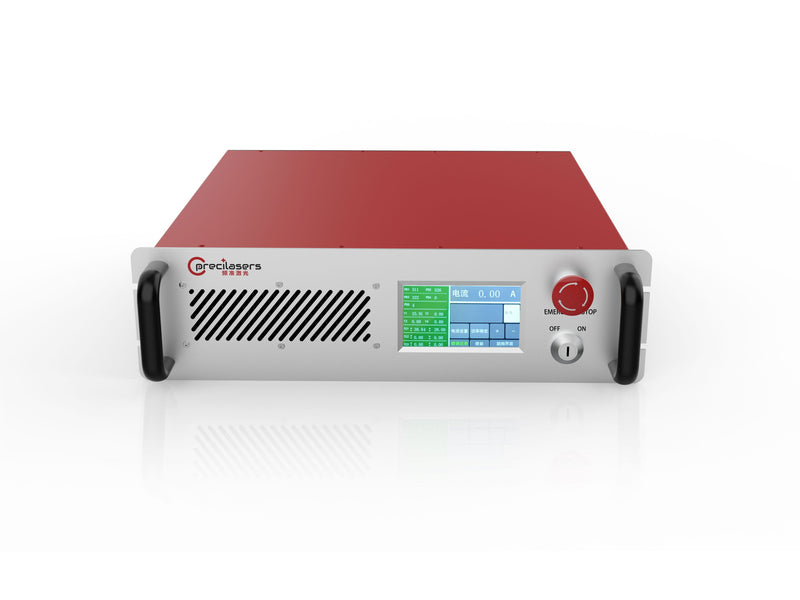

Tm fiber amplifier(1695-2150nm)
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Tm fiber amplifier(1695-2150nm) Based on Tm-doped fiber amplifier technique, Precilasers can provide amplifier that cover 1695-2150nm range, to maxium power of 50W, and keeping very low phase noise and intensity noise.
Features
- Narrow Linewidth Excellent Beam
- Quality Seed Power
- Protection System Low Noise
Applications
- Optical Communication Light Detection
- Ranging Frequency
- Doubled Fundamental Frequency Light
- Source Interferometry Mid
- Infrared Parametric Oscillation Pumping
| Models | FA-SF-X-Y-CW (1) |
|---|---|
| Wavelength range | 1695-1730nm / 1730-1850nm / 1850-1900nm / 1900-2050nm / 2050-2150nm |
| Output Power | >1W/2W/5W / >2W/10W/20W / >2W/10W/20W/30W / >2W/15W/30W/50W / >2W/10W/20W |
| Typical Wavelength | 1762nm, 2051nm |
| Bandwidth | >±3nm / >±5nm / >±10nm / >±10nm / >±5nm |
| Relative Intensity Noise | <0.08% (RMS, 10Hz-10MHz Integration) |
| Power Stability | <0.75% @3hours, RMS |
| Power Tuning Range | 10-100% |
| Output Mode (2) | Single Mode PM fiber, FC/APC Connector (Output Power≤2W) OR Collimated Output (All Power) |
| Beam Diameter | 0.8±0.2mm |
| Beam Quality | TEM00, M²<1.1 |
| Polarization | Linear, >23dB |
| Seed Laser Input Power | ≥10mW (3) |
| Seed Laser Input Isolation | >25dB |
| Output Laser Isolation | >25dB |
| Cooling | Air Cooling /Water Cooling |
| Temperature | 15-30 °C (Air Cooling) OR 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422/RS485 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
