CALDERA — Enhancement Cavity (CW and Multi-kW Pulsed; Tailored to Your Setup)

Name: CALDERA — Enhancement Cavity (CW and Multi-kW Pulsed; Tailored to Your Setup)
Brand: UltraFast Innovations
Availability: InStock

Contact for pricing

Contact Sales

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening

View all 49 calculators →

RoHS REACH

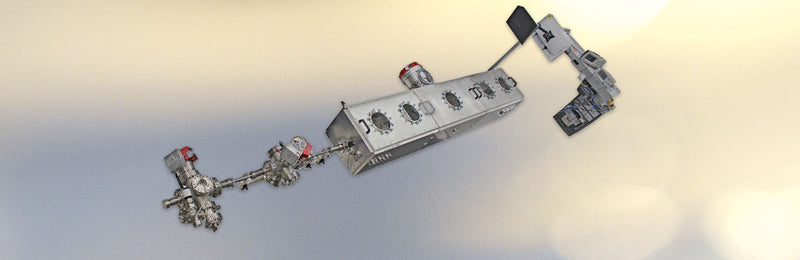

CALDERA is an enhancement cavity tailored to your setup, supporting both continuous-wave (CW) and multi-kW-level average-power pulsed operation.

Built around UFI's ultra-low-loss optical-coating technology and precision opto-mechanics, CALDERA enables coherent power buildup for nonlinear conversion, intracavity HHG, gravitational-wave-detector R&D, optical-frequency-comb stabilization, and resonant absorption spectroscopy.

Key Product Features

Tailored to your laser source and experimental geometry
CW and pulsed operation supported (single device)
Multi-kW intracavity average power capability
Single-ppm-loss mirrors (compatible with UFI's GLACIER-characterized coatings)
Customizable mirror coatings for desired wavelength range
Active or passive locking (PDH / fringe-side / dither)
Compact bench-top to vacuum-compatible configurations

Applications

Intracavity high-harmonic generation
Frequency-comb stabilization & spectroscopy
Gravitational-wave-detector mirror R&D
Resonant absorption / cavity-enhanced spectroscopy
Power-buildup for nonlinear conversion

Developed at the Max-Planck-Institute of Quantum Optics. UFI is a spin-off from LMU Munich and the Max Planck Society.

Models	CALDERA
Function	Enhancement cavity for CW & pulsed laser sources
Average power	Up to multi-kW intracavity
Operation mode	CW and pulsed (same device)
Mirror loss	Single-ppm (UFI ultra-low-loss coatings)
Locking schemes	PDH / fringe-side / dither — selectable
Wavelength	Customized per application
Geometry	Bench-top to vacuum-compatible, tailored per setup

CALDERA is fully customized for each customer — mirror set, cavity geometry, locking electronics and form factor all tailored.

Contact UFI for project-specific designs.

Source: UltraFast Innovations manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
