Vortex Retarder Arrays VRIA-633
VRIA-633$3,901.32
In Stock
Key Specifications
Wavelength
633.0nm
Reflectance
0.5%
Transmittance
400.0%
Design Tools
View all 49 calculators →RoHS
REACH

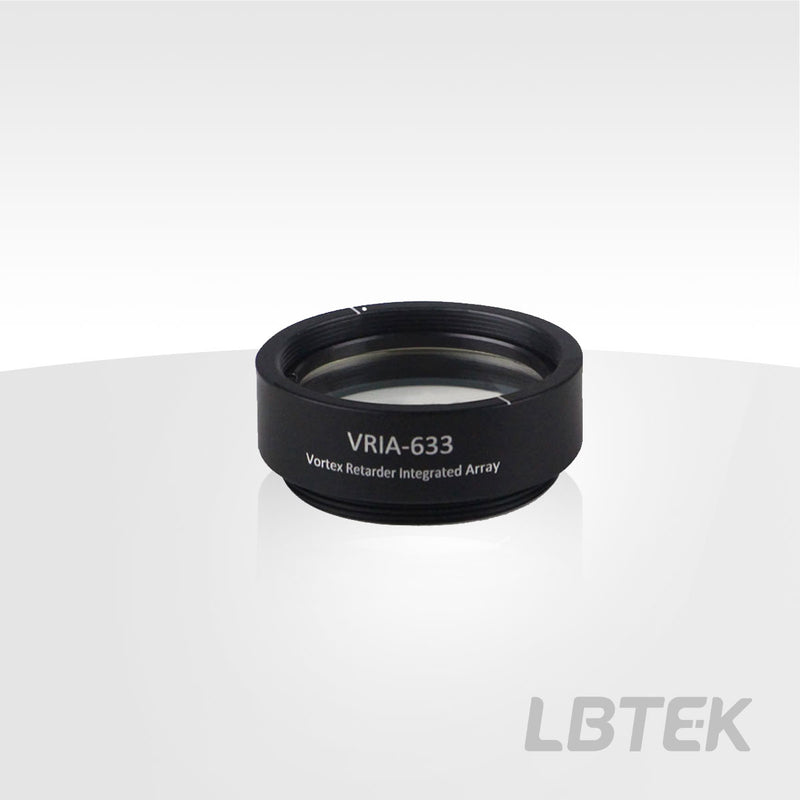

The LBTEK Vortex Retarder Array combines N-BK7 glass substrate and Liquid Crystal Polymer (LCP) material into a 3×3 arrangement, generating vortex beam arrays with l=±1-9 or various vector polarization configurations.
Compared to single vortex retarder units, the array offers higher integration, making it more suitable for applications involving vortex beam arrays while maintaining advantages like high efficiency, stability, and broad incident angles. The zero-order design ensures low wavelength sensitivity and high temperature stability.
Key Features
- Liquid Crystal Polymer/N-BK7 window plate sandwich structure with SM1-8A mechanical housing
- m=1-9 vortex retarders in 3×3 integrated monolithic array
- Polarization-dependent; generates l=±1-9 vortex beam arrays
- Highly compact 1-inch substrate design
- Operating wavelength λ: 633 nm; orders m: 1-9
Integrated Type VRIA-633
Monolithic 1-inch substrate with 15 mm×15 mm clear aperture. Each sub-unit measures 5×5 mm, supporting beam diameters Ø0.3 to Ø3.2 mm. Engraved markers distinguish m-order positions. Capable of generating Laguerre-Gaussian beams with l=±1-9.
| Diffraction Order | 1-9 |
| Material | Liquid Crystal Polymer/N-BK7 Window Plate |
| Surface Quality (Scratch/Dig) | 40/20 |
| Center offset | ＜0.5 mm |
| Clear Aperture | 15 mm×15 mm |
| Operating wavelength λ | 633 nm |
| Wavelength Range | SM1-8A Housing |
| Optical component size | Ø25.4×3.2 mm |
| Beam Diameter Range | Ø0.3 mm-Ø3.2 mm |
| Operating Temperature | -20~80 °C |
| Transmittance | ＞99.5 % |
| Acceptance Angle | ±20 ° |
| AR Coating | 400-700 nm |
| Diffraction Efficiency | ＞98 % |
| AR Coating Reflectance | Ravg<0.5% (0° incidence angle) |
| Wedge Angle | ＜1 arcmin |
| Transmitted light deflection (with mechanical housing installed) | ＜10 arcmin |
| Transmitted Wavefront Error (TWE) (@633 nm) | ＜λ/4 |
| Retardance | λ/2 |
| Retardance Wavelength Tolerance | ±5 nm |
No CAD drawings available for this product.

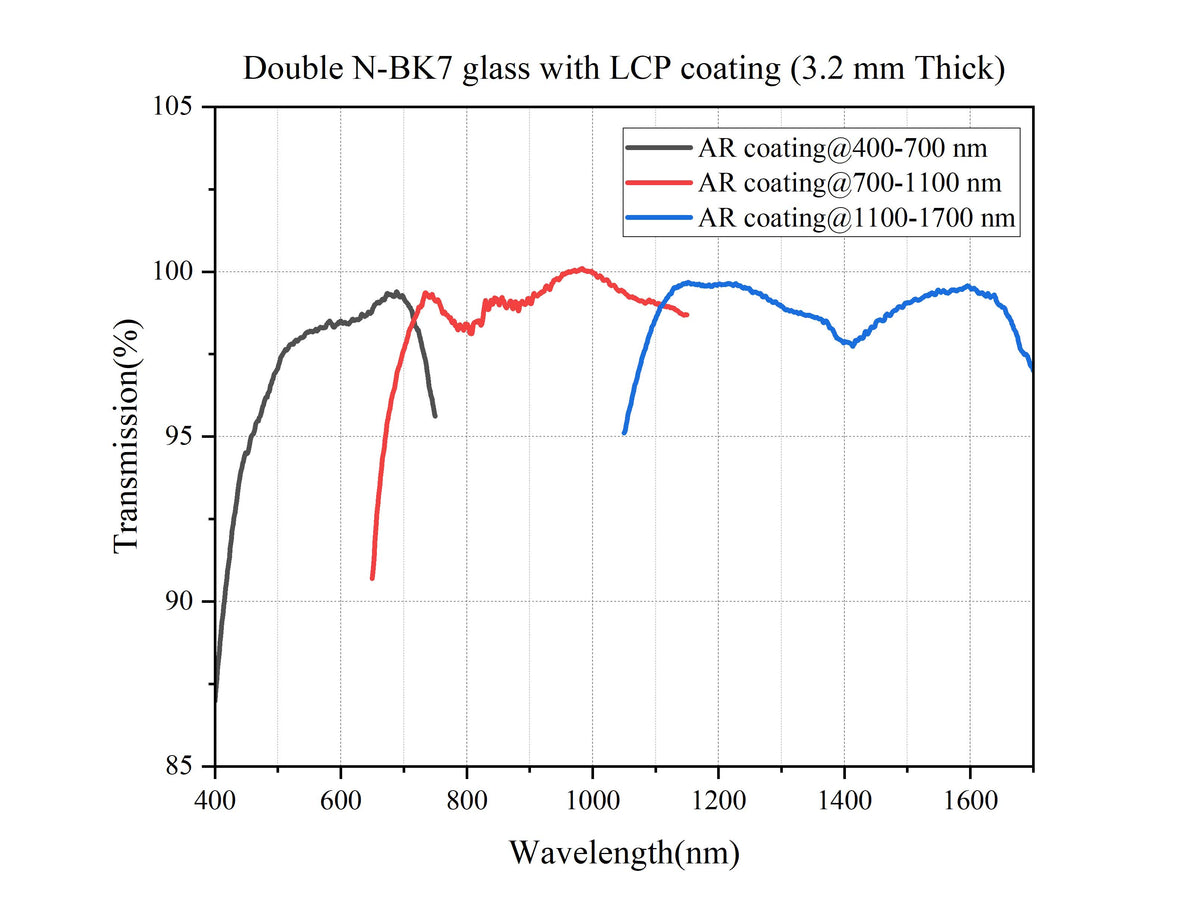

Curve 1
Curve 2
Curve 3
Curve 4
Curve 5
Curve 6
Curve 7
Curve 8
Curve 9
Curve 10
Curve 11
Curve 12
Curve 13
Curve 14
Curve 15
Curve 16
Curve 17
Curve 18
Curve 19
Product Family: Vortex Retarder Arrays (2 variants)
