Quick Liquid Crystal Variable Retarders QLCVR-F20-B
QLCVR-F20-B$1,898.76
In Stock
Key Specifications
Wavelength
700.0nm
Transmittance
0.5%
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
SHG Phase Matching
Calculate phase matching angles and efficiency
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH

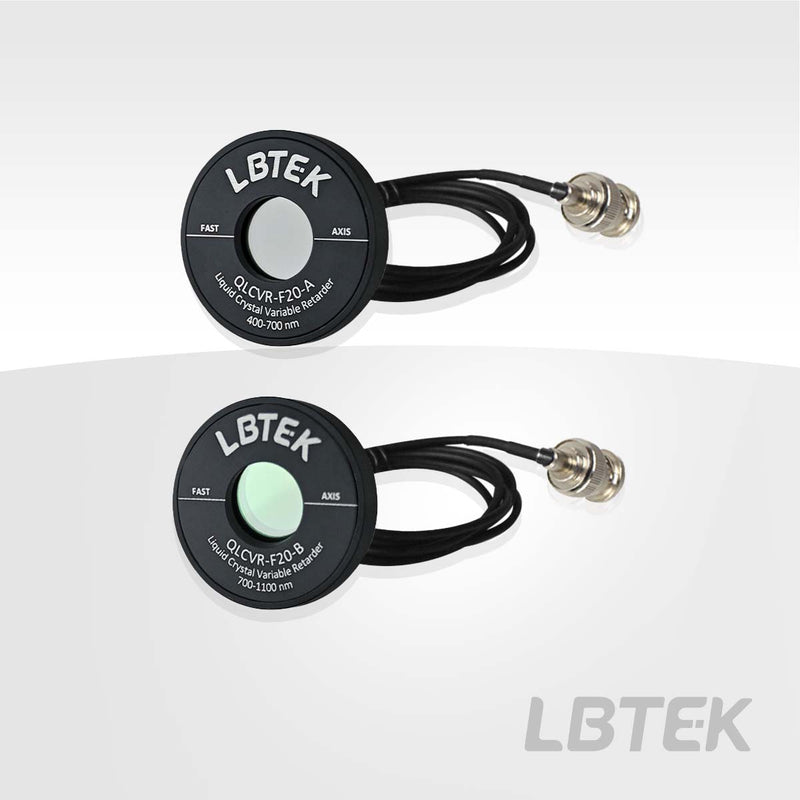

2-inch Quick Liquid Crystal Variable Retarder, Full Wave, Uncompensated
The LBTEK 2-inch Full-Wave Quick Liquid Crystal Variable Retarder is coated with corresponding anti-reflection coatings for either the 400-700 nm or 700-1100 nm operating wavelength range. Under the control of an external AC voltage (DC voltage not allowed), it can achieve flexible adjustment of retardation between approximately 100 nm and λ.
With a clear aperture of Ø20 mm, it is mounted in a mechanical housing with attatched wiring. The housing is compatible with Ø2-inch optical component mounts, and the fast axis direction of the liquid crystal variable retarder is clearly marked for convenient optical path alignment by users.
Key Features
- Clear Aperture: Ø20 mm
- Mechanical housing compatible with Ø2-inch optical component mounts
- Operating wavelength options: 400-700 nm or 700-1100 nm
Typical Applications
- High-speed polarization modulation and switching
- Fast Stokes polarimetry and Mueller-matrix imaging
- Real-time adaptive polarization control
- Pump-probe and time-resolved spectroscopy
- Fluorescence and polarized-light microscopy
- Electro-optic phase modulation experiments
Product Family
QLCVR-F20-B is part of the WaveQuanta high-speed liquid-crystal variable retarder family, sourced from LBTEK and distributed by WaveQuanta with full datasheet, mechanical drawing, and 3D model support.
SKU: QLCVR-F20-B · Sourced from LBTEK · Distributed by WaveQuanta
| Operating Wavelength | 700-1100 nm |
| Retardance | Approximately 100 nm-λ |
| Retardance Uniformity (RMS) | <λ/30 |
| Response Time (Rise/Fall) | 73 ms/1.75 ms@1064 nm |
| Transmittance | >90 %@700-1100 nm |
| Clear Aperture | Ø20 mm |
| Housing Specification | Ø50.8×9 mm, compatible with Ø2-inch optical component mounts |
| Component Material | Nematic liquid crystal/ITO glass |
| Surface Quality (Scratch/Dig) | 40/20 |
| Transmitted Wavefront Error (RMS) | <λ/4@632.8 nm |
| Anti-Reflection Coating | Ravg<0.5 %@700-1100 nm (0° incidence) |
| Transmitted Beam Deviation (Without Housing) | <3 arcmin |
| Transmitted Beam Deviation (With Housing) | <10 arcmin |
| Operating Temperature | -20~45 ℃ |
