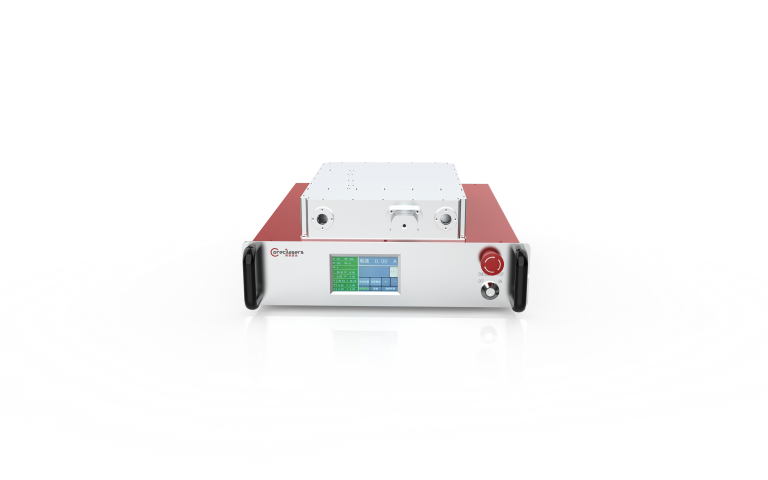

1064nm Nanosecond laser Precilasers offers high performance 1064nm pulse fiber laser, it has high pulse energy and hig peak power. The laser can be used in non-linear frequency conversion / micromachining and spectroscopy application. The excellent beam quality and stability of the 1064nm pulse fiber laser ensure the accuracy and repeatability in material processing.
Features
- Compact design Good stability
- Excellent beam quality
| Models | FL-NS-1064-x (1) |
|---|---|
| Center Wavelength | 1064.00nm |
| Spectral Width | <1nm |
| Operational Mode | pulse |
| Beam Diameter | 1.5-1.9mm(can be custom made) |
| Average Power | >60W / >100W / >150W |
| Pulse Width | 1-30ns / 1-30ns / 150-300ns |
| Repetition Rate | 100-1000kHz / 100-1000kHz / 100-300kHz |
| Pulse Energy | >120uJ@20ns / >200uJ@20ns / >400uJ@300ns |
| Polarization | >18dB / >16dB / >16dB |
| Beam Quality | M²<1.2 / M²<1.3 / M²<1.3 |
| Beam Waist Location | output aperture±0.5m |
| Beam Divergence (full angle) | <2mrad |
| Beam Circularity | >90% |
| Beam Pointing Stability (PP) | <10µrad/°C |
| Power Stability | <1% @3hours, RMS |
| Cooling | water cooling |
| Cold Start | <30 minutes |
| Warm Start | <10 minutes |
| Controller Size | ≤483mm x 540mm x 112.5mm |
| Laser Head Size | ≤226mm x 358mm x 54mm |
| Chiller Size | ≤58cm x 29cm x 52cm |
| Laser Head Weight | ≤10kg |
| Laser Controller Weight | ≤25kg |
| Chiller Weight | ≤25kg |
| Cable Length Between Laser Head And Controller | >2m(can be custom made other length) |
| Operating Temperature (No condensing) | 15-35 °C (water cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Power Comsumption | <1kW |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
