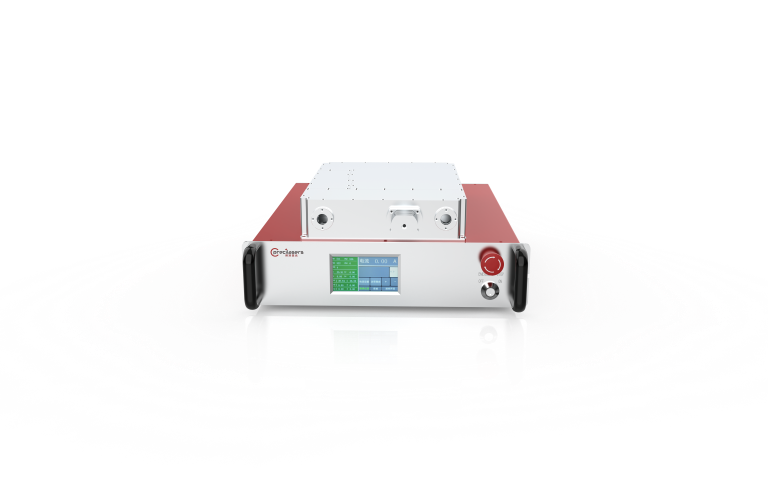

532nm Nanosecond laser
Contact for pricing
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
RoHS
REACH
532nm Nanosecond laser The high-performance pulsed fiber UV laser launched by PerciLasers has a spectral width of less than 1nm, high pulse stability, and can achieve a typical refrequency of 100~1000kHz, a pulse width of 1-30ns, and an average power of more than 10W UV output. The laser adopts the scheme of full fiber amplification and external frequency doubling, short wavelength, narrow pulse width, high peak power, small processing thermal influence area, excellent beam quality, good long-term stability, maintenance-free, suitable for high-end fields such as fine industrial processing.
Features
- Compact structure Excellent beam
- Good stability
Applications
- Photovoltaic processing Precision resistor
| Models | FL-NS-532-xx (1) |
|---|---|
| Wavelength | 532.00nm |
| Operation Mode | pulse |
| Beam Waist Diameter | 0.8-1.2mm |
| Multiple frequency | 100-1000kHz |
| Pulse width | 1ns-30ns |
| Spectral width | <1nm |
| Single pulse energy | >60uJ@20ns / >120uJ@20ns |
| Average power | >30W / >60W |
| Beam quality | M 2 <1.1 / M 2 <1.2 |
| Polarization | >20dB |
| Spot roundness | >90% |
| Power stability | <2%, RMS |
| Cooling | Water cooling |
| Operating temperature | 20-25°C |
| Power supply | 100V-220V, AC, 50Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
