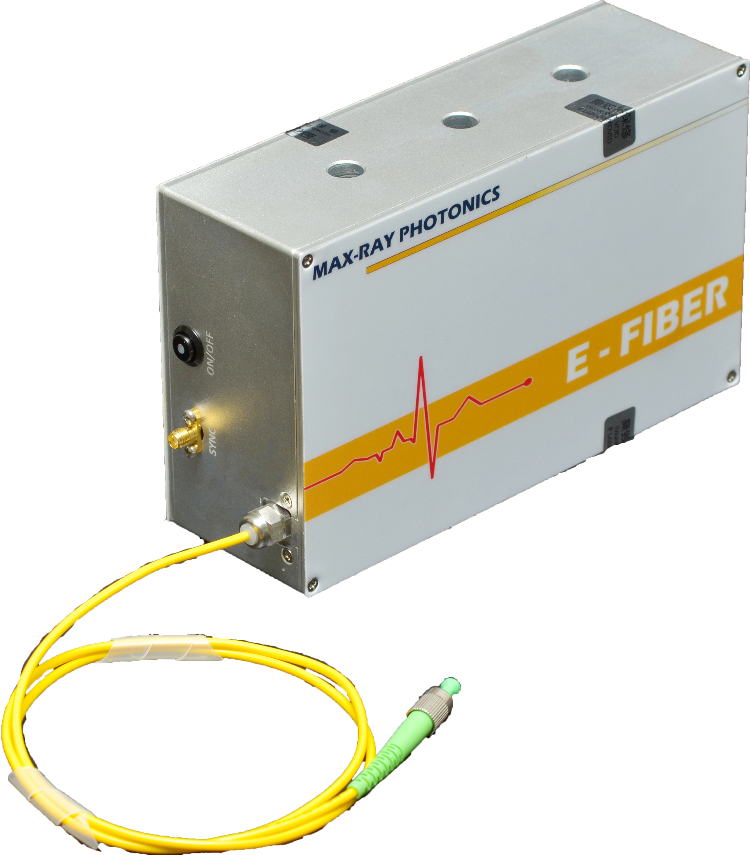

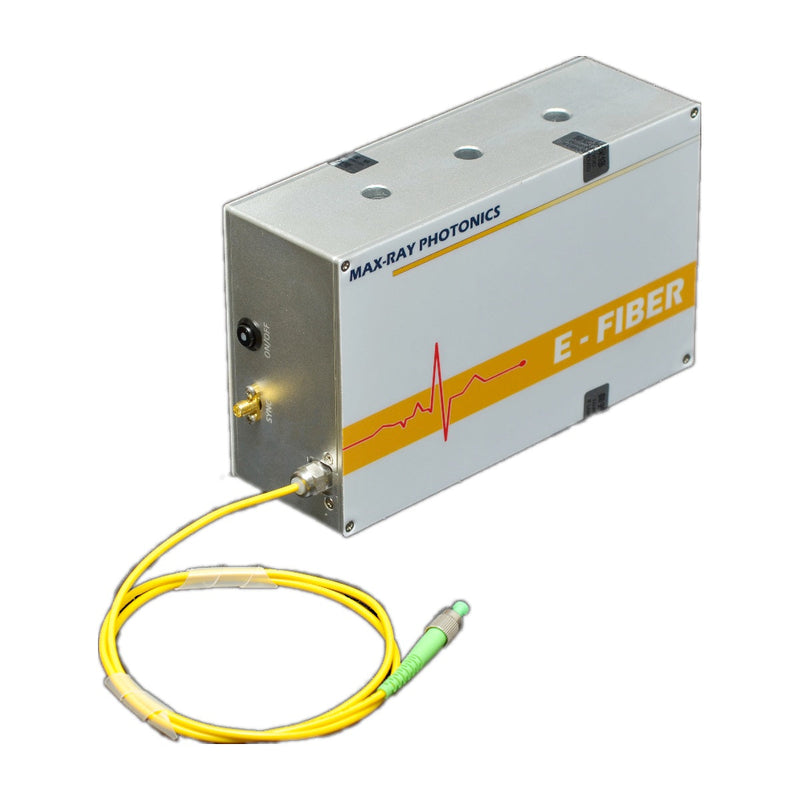

The E-Fiber series of ultrafast lasers integrate the latest femtosecond laser technology, utilizing high-performance rare-earth fibers as the working medium. By combining high-precision dispersion compensation technology with an active servo system, they achieve stable output of femtosecond pulse lasers at the 1560nm wavelength . With one-button auto-start, they ensure long-term stable operation and are maintenance-free. These lasers are characterized by extremely narrow laser pulses and high peak pulse power, making them widely applicable in fields such as optical frequency combs, supercontinuum generation, terahertz (THz) technologies, and more. Customization of parameters such as pulse width, power, and repetition rate is available upon request.
Features & Applications
- Pulse duratio90 fs
- Compact and turnkey
- Robust and reliable
- Applications
- O ptical frequency comb
- S upercontinuum generation
- T erahertz research
| Models | Specification |
|---|---|
| Center Wavelength (nm) | 1560± 30 |
| Spectrum Width (nm) | ≥ 60 |
| Pulse Duration (fs) | <90 （ typ. 60fs ） |
| Average Power (mW) | ≥100 |
| Power Instability | < ±1% |
| Repetition Rate (MHz) | 80 ~100 |
| Repetition Rate Instability (Hz) | < 100 |
| Pulse Energy (nJ) | ≥ 1 |
| Polarization | L inear polarization |
| Fiber Type | PM1550，FC/APC |
| Fiber connector (min) | < 1 |
Spectrum Width: Overall width
Fiber Type: Slow axis alignment
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
