RoHS
REACH

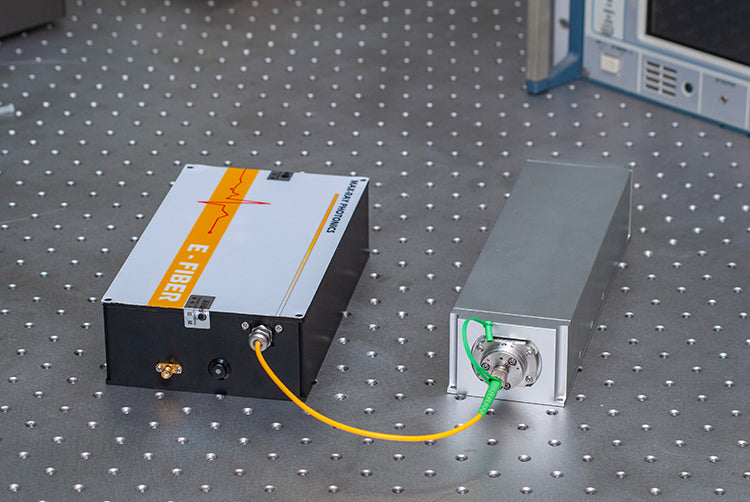

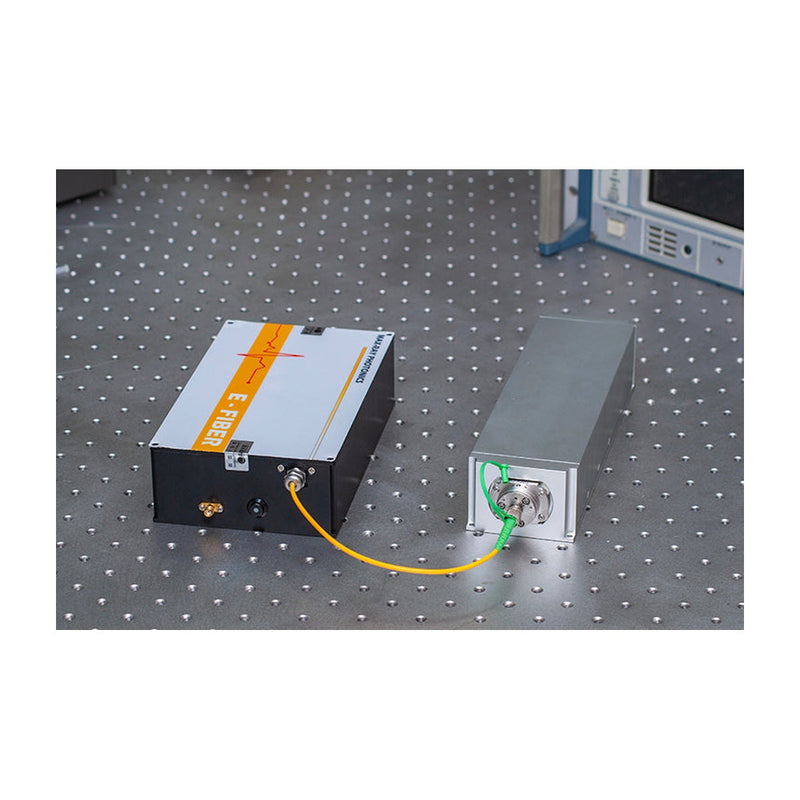

The E-Fiber series ultrafast lasers employ the latest femtosecond laser technology and optical frequency doubling technology, enabling stable output of femtosecond pulse lasers in the 780nm wavelength band. They feature one-button auto-start upon powering on and long-term stable operation, with characteristics such as extremely narrow laser pulses and high pulse peak power. These lasers hold significant applications in fields including optical frequency combs, terahertz waves, and multiphoton imaging.
Features & Applications
- Femtosecond Pulse Duration
- Robust and reliable
- Compact and turnkey
- Applications
- M ultiphotoimaging
- Two-photoabsorption
- Ultrafast Optics
| Models | Specification |
|---|---|
| Wavelength (nm) | 780±10 |
| Optical spectrumwidth (nm) | 20 |
| Pulse Duration (fs) | <100 |
| Output Power (mW) | >30 |
| Power Instability | < ±1% |
| Repetition Rate (MHz) | 80 |
| Repetition Rate Instability (Hz) | < 100 |
| Pulse Energy (nJ) | > 0.4 |
| Polarization | Linear polarization |
| Output form | Free space |
| Warm time (min) | < 1 |
Pulse Duration: Customizable
Output Power: Customizable
Repetition Rate: Customizable
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
